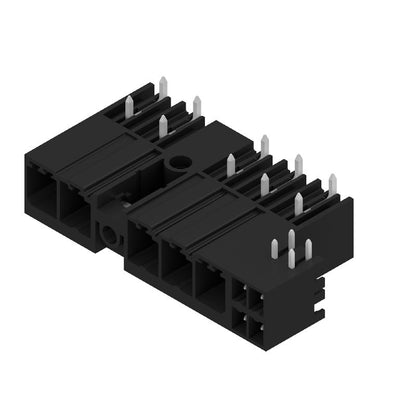

1156370000 - 7.62mm 5-Pole PCB Connector with Screw Flange, Black Box (Pack of 30)

1156370000 - 7.62mm 5-Pole PCB Connector with Screw Flange, Black Box (Pack of 30)

SKU: SKU: 1156370000   Download PDF

Select a Variant:
  • 1156370000 - 7.62mm 5-Pole PCB Connector with Screw Flange, Black Box (Pack of 30)
Qty:
Regular price Now $179.52   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $179.52 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SV 762HP/05/270MSF3 SC/04R SN BK BX, a reliable male header PCB plug-in connector perfect for various applications Engineered with a closed side design, this connector includes a middle screw flange and employs through-hole technology (THT) for solder connections It features a 762 mm pin pitch and provides 5 poles with 35 mm long solder pins that are tinned for enhanced performance Encased in a durable black box, this connector meets RoHS compliance standards and comes with the cURus certification, identified by certificate number E60693, ensuring its reliability and safety for use.

Features and Benefits:

    •RoHS compliant without exemption.

    •Number of poles: 5.

    •Solder pin dimensions: 0.8 x 1.0 mm.

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded.

    •Plugging cycles: 25.

    •Pulling force/pole, max: 7 N.

Specifications:

 Rated voltage (Surge voltage class II/2) 1000 V
 Rated current (IEC) 41 A
 Rated current (UL) 35 A
 Pitch in mm 7.62 mm
 Number of solder pins per pole 2
 Solder pin length tolerance +0.1 / -0.3 mm
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
 Operating temperature, min -50 °C
 Operating temperature, max 130 °C
 Solder eyelet hole diameter 1.4 mm
 Volume resistance 2.00 mΩ
 Material (Insulating material) PA GF
