1156120000 - 7.62mm 2-Pole PCB Connector with 270° Elbow, Tinned Finish (Pack of 48)

1156120000 - 7.62mm 2-Pole PCB Connector with 270° Elbow, Tinned Finish (Pack of 48)

SKU: SKU: 1156120000   Download PDF

Select a Variant:
  • 1156120000 - 7.62mm 2-Pole PCB Connector with 270° Elbow, Tinned Finish (Pack of 48)
Qty:
Regular price Now $226.47   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $226.47 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

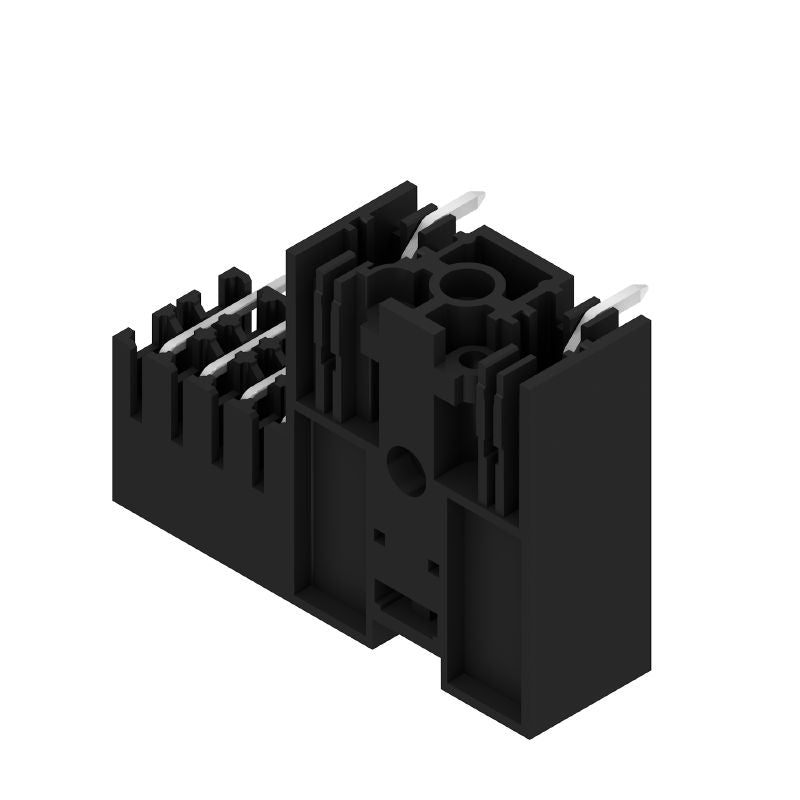

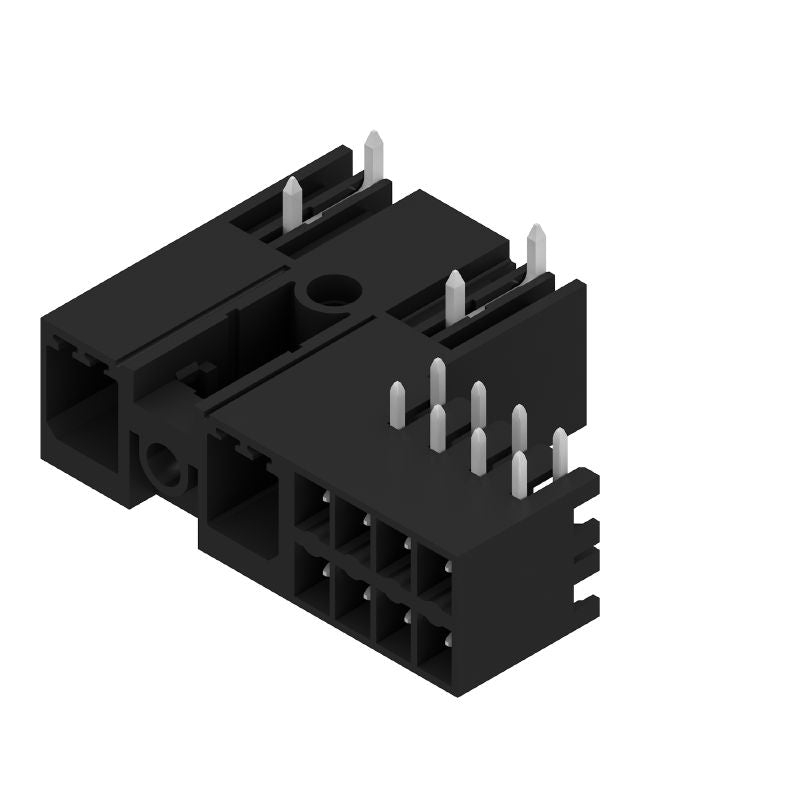

Discover the functionality of this male header PCB plug-in connector, designed with a closed side and middle flange for secure connections Featuring a through-hole (THT) solder connection, this connector measures 762 mm and accommodates 2 poles with a 270° outgoing elbow for versatile mounting options The solder pin extends to 35 mm and boasts a sleek black tinned finish Each unit is conveniently packaged in a box, making it easy to store and handle.

Perfect for your electronic projects that require reliable connections.

Features and Benefits:

    •ROHS compliant without exemption.

    •Has a rated IEC voltage of 1000V and current of 41A.

    •UL rated for 300V and 35A.

    •Safe to back of hand above the PCB according to DIN VDE 57 106.

    •Capable of being coded.

    •Suitable for applications requiring a secure and reliable board connection.

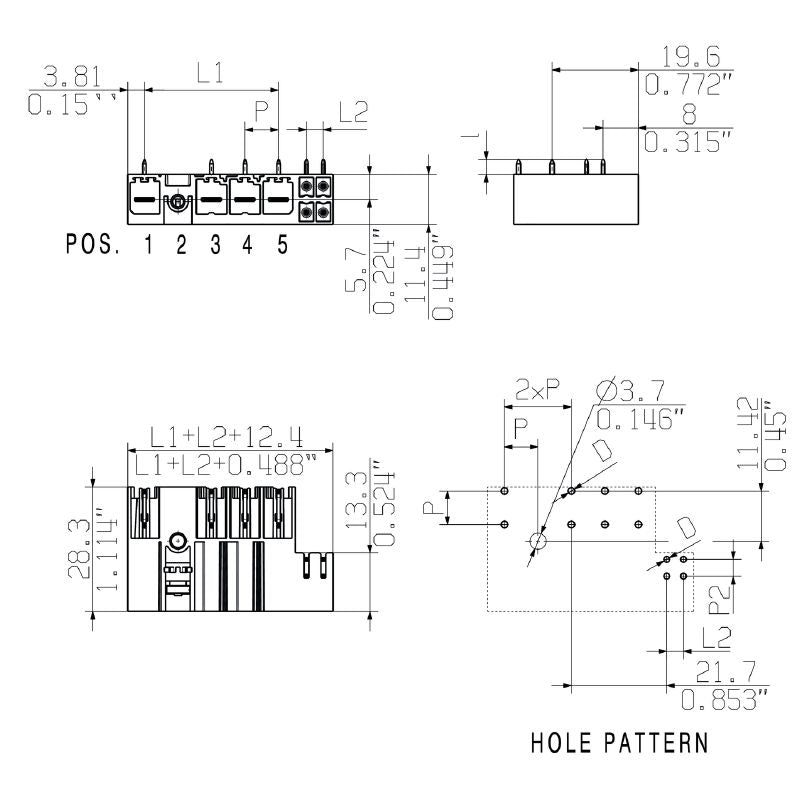

Specifications:

 Depth 28.3 mm
 Height 14.9 mm
 Width 39.07 mm
 Net weight 9 g
 Solder pin dimensions 0.8 x 1.0 mm
 Rated current (min.) 41 A
 Rated voltage for pollution degree II/2 1,000 V
 Short-time withstand current resistance 3 x 1s with 420 A
 Temperature range (min.) -50 °C
 Temperature range (max.) 130 °C
