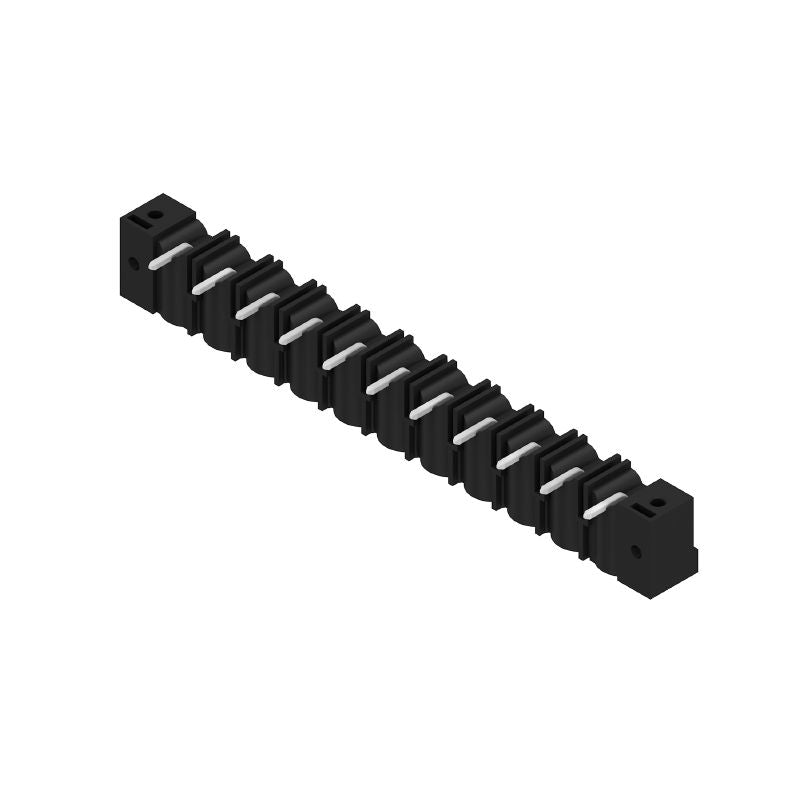

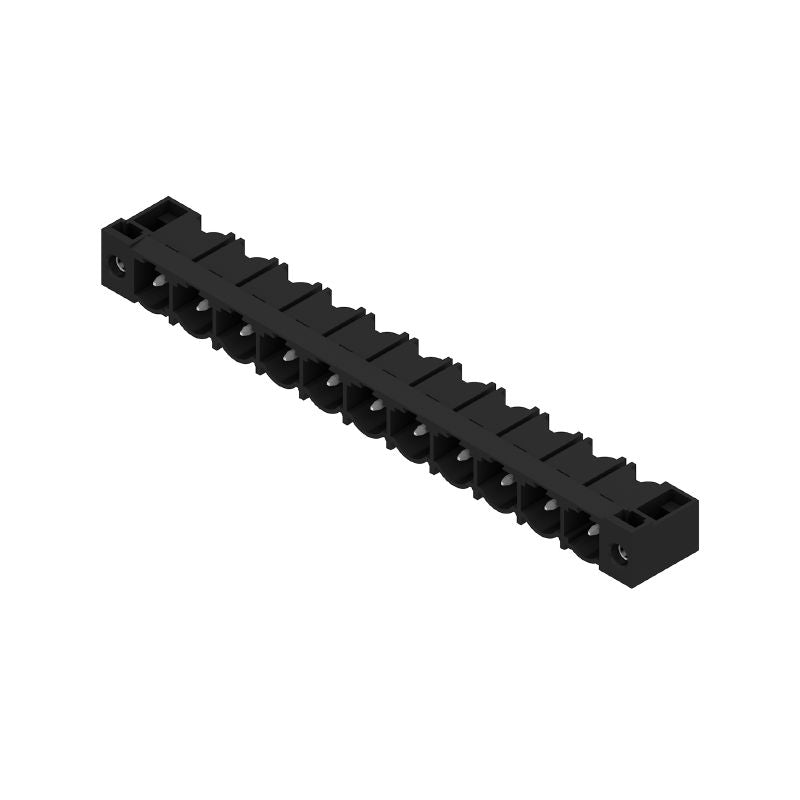

1124310000 - 7.62mm Flange Mount PCB Connector, 11 Poles, Black (Pack of 18)

1124310000 - 7.62mm Flange Mount PCB Connector, 11 Poles, Black (Pack of 18)

SKU: SKU: 1124310000   Download PDF

Select a Variant:
  • 1124310000 - 7.62mm Flange Mount PCB Connector, 11 Poles, Black (Pack of 18)
Qty:
Regular price Now $75.92   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $75.92 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a high-performance male PCB plug connector, designed with a flange mount and THT solder connection This connector features an 11-pole configuration arranged at a 90° angle, making it ideal for various applications The pitch measures 762 mm, and the solder pin length is 32 mm, ensuring secure connectivity Packaged in a convenient box, this black connector is compliant with ROHS regulations and meets multiple standards, including UL, with the certificate number E60693 for added assurance.

Features and Benefits:

    •RoHS compliant without exemptions.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded for secure connections.

    •Available in a box packaging.

Specifications:

 IEC Voltage Rating 630 V / 29 A
 UL Voltage Rating 300 V / 20 A
 Depth 11.8 mm
 Height 11.6 mm
 Width 92.68 mm
 Continuous Operating Temperature (Min) -25 °C
 Continuous Operating Temperature (Max) 100 °C
 Solder Pin Length 3.2 mm
 Number of Poles 11
 Pitch 7.62 mm
 Rated Current (Tu=20°C) 29 A
 Rated Voltage (Surge Voltage Class II/2) 630 V
 Protection Degree IP10
