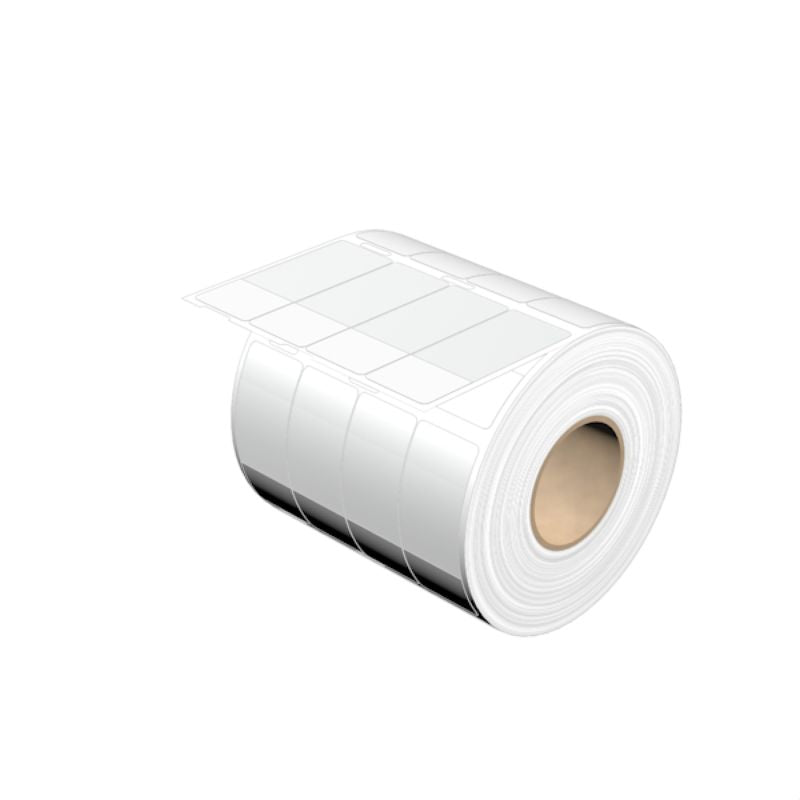

1109130000 - 24.5mm White Cable Marker for Conductors 6.1-13.7mm

1109130000 - 24.5mm White Cable Marker for Conductors 6.1-13.7mm

SKU: SKU: 1109130000 Download PDF

Variant:
  • 1109130000 - 24.5mm White Cable Marker for Conductors 6.1-13.7mm
Regular price Now $399.52
Regular price BEFORE   $0.00 Sale price Now $399.52
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the THM WO 245/62 WS conductor and cable marker, expertly crafted to fit conductor outer diameters ranging from 61 mm to 137 mm With a compact height of 245 mm and a width of 62 mm, this white marker is not only functional but also compliant with RoHS standards Each label is printed on durable polyester film and is securely affixed with polyacrylate adhesive Supplied on a reel containing 2500 markers, it is ideal for diverse applications and compatible with THM MULTIMARK and THM MULTIMARK PLUS printers.

Additionally, it can withstand operating temperatures between -40°C and 150°C, making it a reliable choice for various environments.

Features and Benefits:

    •Self-adhesive.

    •Compliant without exemption to RoHS.

    •Printed characters are neutral.

    •UL 94 flammability rating of V-0.

    •Contains no halogen.

    •Compatible with THM MULTIMARK and THM MULTIMARK PLUS printers.

Specifications:

 Depth 0.025 mm
 Height 24.5 mm
 Width 62 mm
 Operating temperature range -40...150 °C
 Conductor O.D. 6.1 - 13.7 mm
 Conductor cross-section, max 150 mm²
 Conductor cross-section, min 0.75 mm²
 Size of labelling field 19.05 x 24.5 mm
