1095640000 - 7.62mm 2-Pole Black PCB Connector with Solder Flange (Pack of 72)

1095640000 - 7.62mm 2-Pole Black PCB Connector with Solder Flange (Pack of 72)

SKU: SKU: 1095640000   Download PDF

Select a Variant:
  • 1095640000 - 7.62mm 2-Pole Black PCB Connector with Solder Flange (Pack of 72)
Qty:
Regular price Now $156.18   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $156.18 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

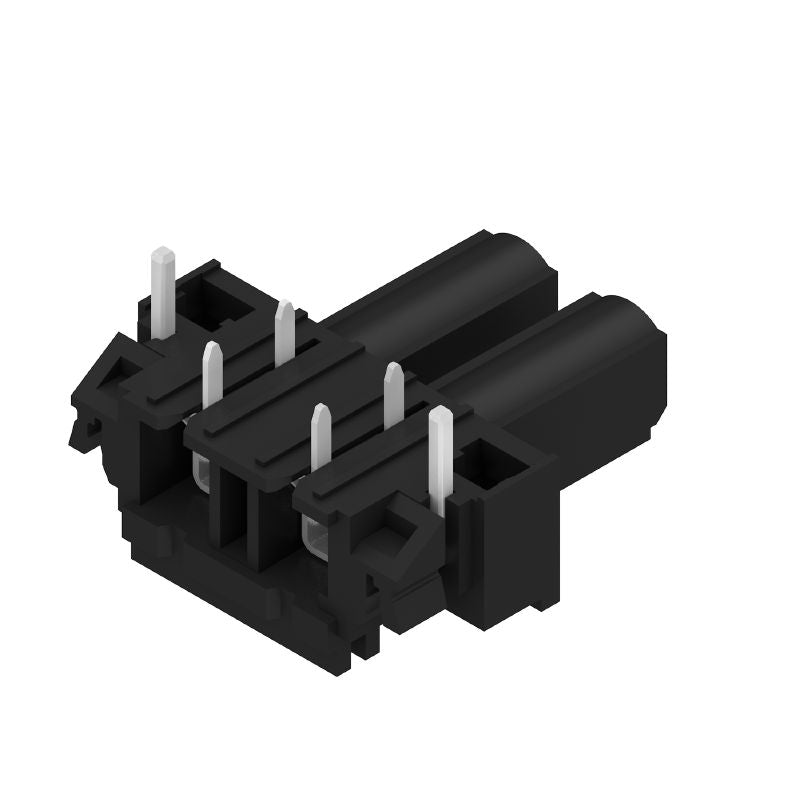

Discover this efficient PCB plug-in connector, crafted as a female header featuring a sturdy solder flange It offers a through-hole (THT) solder connection with a precise pin spacing of 762 mm and is configured with 2 poles at a 90° angle The solder pin measures 32 mm in length and comes in a sleek black color, conveniently packaged in a box for your needs.

Features and Benefits:

    •Touch-safe protection according to DIN VDE 57 106 and IP 20.

    •Can be coded for specific applications.

    •Easy to install with a max plugging force of 10 N and pulling force of 7 N.

    •Suitable for board connection applications.

Specifications:

 Depth 24.5 mm
 Height 13.7 mm
 Width 24.42 mm
 Rated voltage for surge voltage class / pollution degree II/2 630 V
 Rated current, min. number of poles (Tu=20°C) 24 A
 Rated voltage (Use group B / CSA) 300 V
 Storage temperature, min. -40 °C
 Operating temperature, min. -50 °C
 Insulating material PA GF
 Number of rows 1
