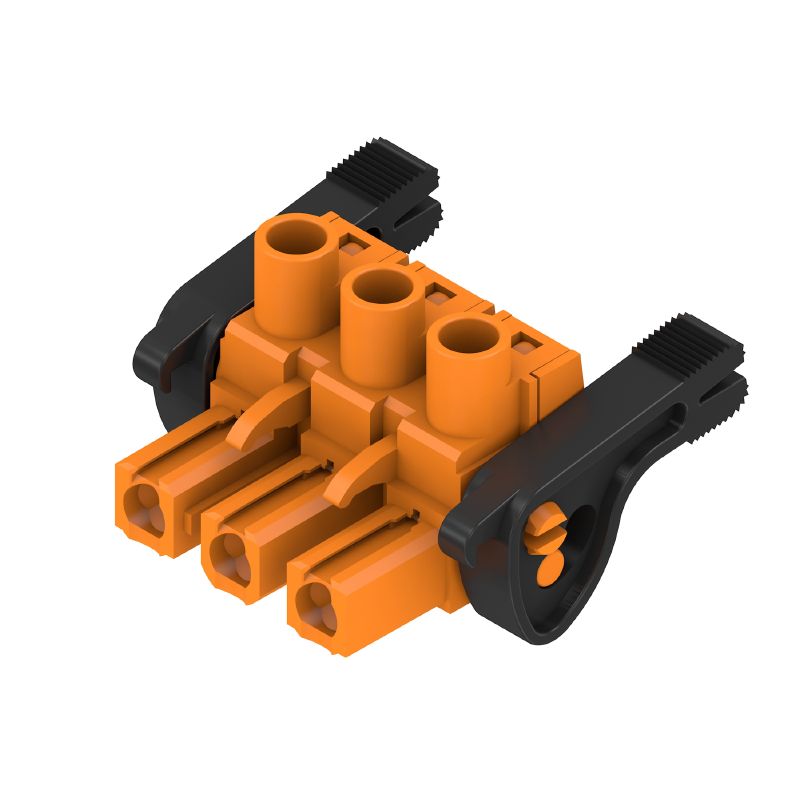

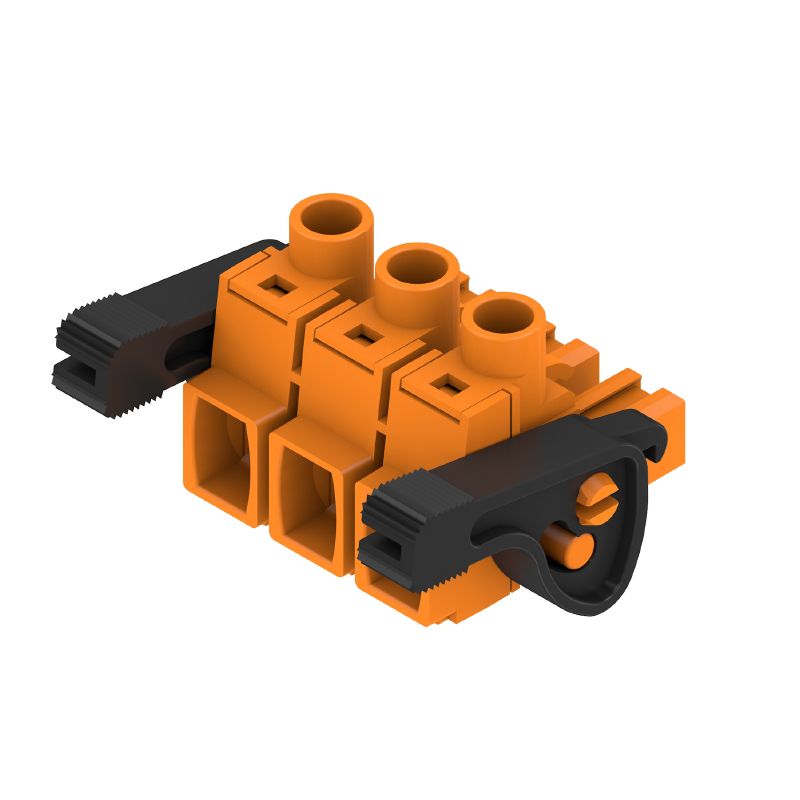

1093480000 - 7.62mm Pitch Female PCB Connector, 31.74mm Wide, RoHS Approved (Pack of 45)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BLZ 762HP/03/180LR SN OR BX, a versatile female plug-in connector crafted for PCB applications This component features a clamping yoke connection with a capacity for conductors up to 4 mm² It meets RoHS requirements and holds UL certification E60693, making it suitable for a wide range of voltages and current ratings Measuring 3174 mm in width, 183 mm in height, and 233 mm in depth, this connector weighs just 9.

2 grams As part of the OMNIMATE Power series, it supports a 762 mm pitch and accommodates three poles It can handle a maximum current of 29 A at 630 V in accordance with IEC standards, as well as 20 A at 600 V per UL standards, ensuring reliability for your electrical applications.

Features and Benefits:

•RoHS compliant and UL certified.

•Offers a clamping yoke connection for secure wire attachment.

•Touch-safe protection per DIN standards.

•Can be coded for easy assembly.

Specifications:
