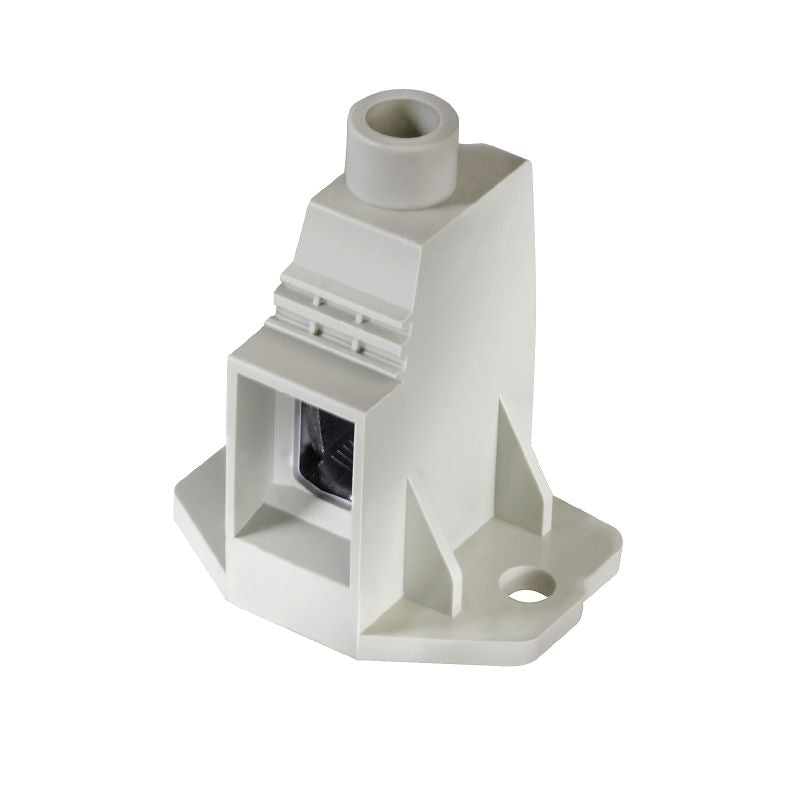

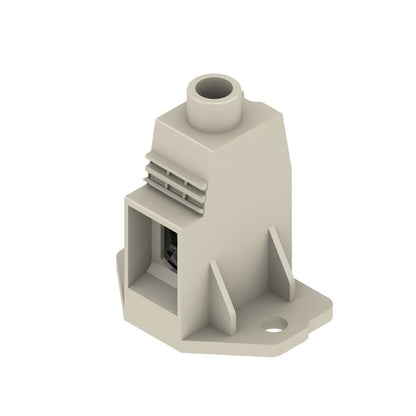

1047360000 - 15mm Pebble Grey PCB Terminal with 90° Angle & Clamping Yoke (Pack of 20)

1047360000 - 15mm Pebble Grey PCB Terminal with 90° Angle & Clamping Yoke (Pack of 20)

SKU: SKU: 1047360000   Download PDF

Select a Variant:
  • 1047360000 - 15mm Pebble Grey PCB Terminal with 90° Angle & Clamping Yoke (Pack of 20)
Qty:
Regular price Now $105.17   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $105.17 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your electrical projects with this printed circuit board terminal, designed with a 1500 mm pitch and a 90° angle for optimal connectivity This single-pole terminal features a 45 mm solder pin length for secure attachment Its sophisticated pebble grey color adds a modern touch, while the clamping yoke connection accommodates a maximum clamping range of 50 mm² Packaged in a sturdy box, this terminal meets ROHS compliance standards, ensuring it's an eco-friendly choice for your needs.

Features and Benefits:

    •Clamping yoke connection for secure attachment.

    •Solder pin length of 4.5 mm.

    •Compliant with ROHS regulations.

    •Compact size for efficient PCB use.

Specifications:

 Number of poles 1
 Rated voltage (IEC) 1000 V

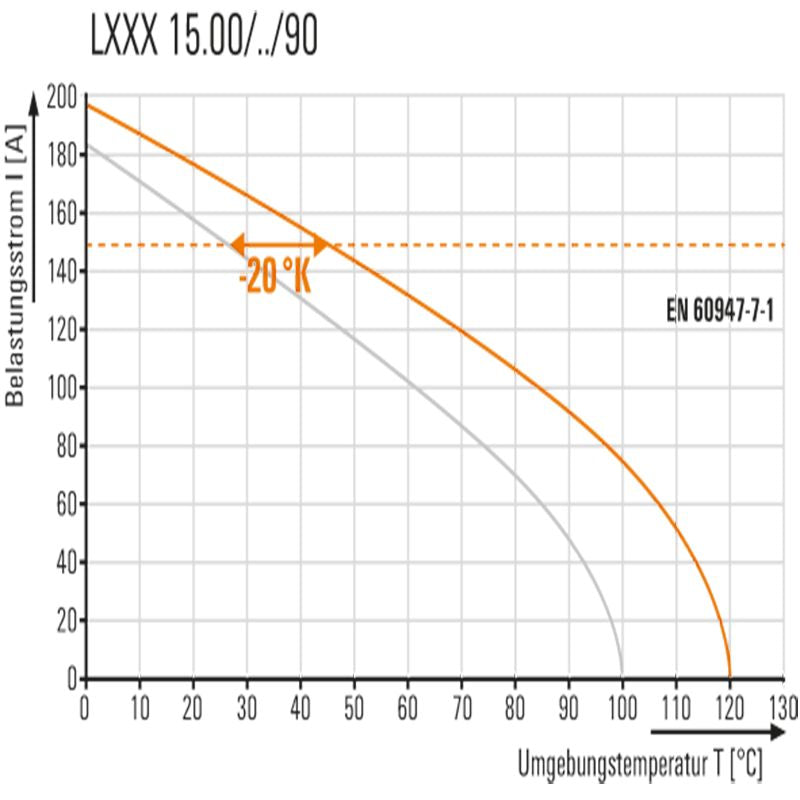

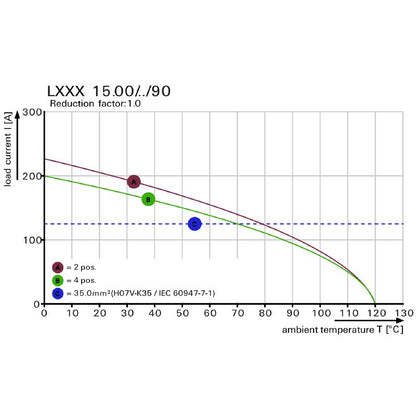

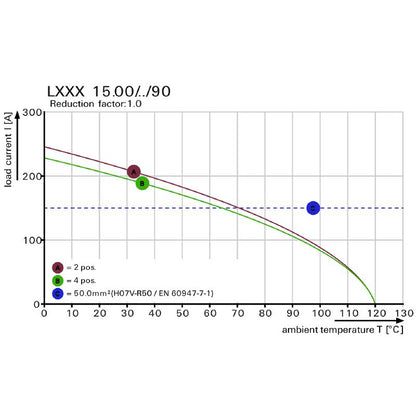

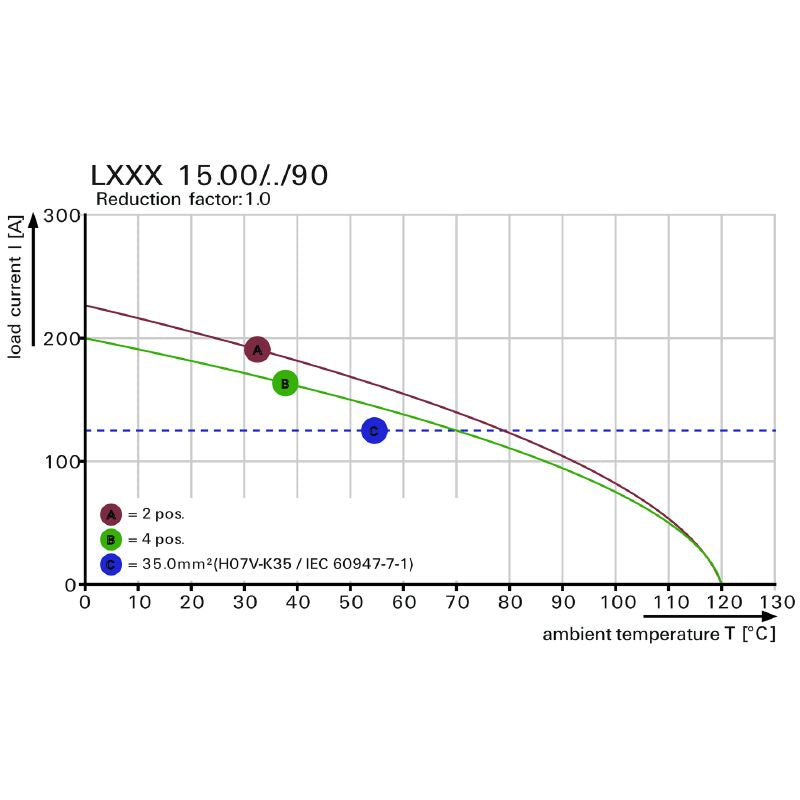

 Rated current (IEC) 150 A
 Clamping range max 50 mm²
 Insulating material Wemid (PA)
 Color Pebble grey
 Temperature range, installation -25 °C to 120 °C
 Protection degree IP20
 Solder pin dimensions 1.2 x 1.2 mm
 Tightening torque, min 2.5 Nm
 Tightening torque, max 4 Nm
 Storage temperature, max 70 °C

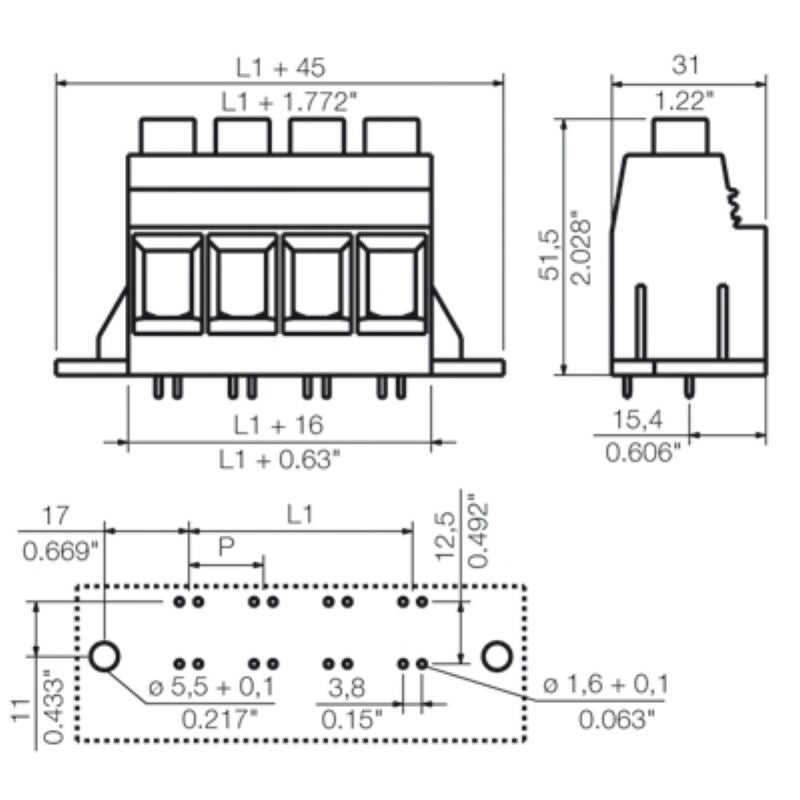

 Depth 31 mm
 Height 56 mm
 Width 45 mm
