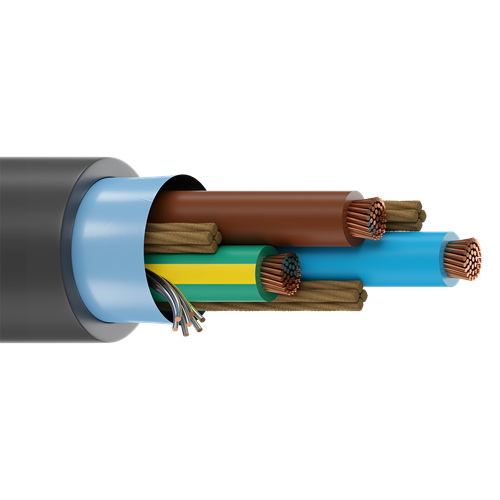

Belden 19364 14 AWG 3 Conductor 41x30 Stranding Bare Copper 300V Portable Cordage Cable

Description:

Portable Cordage, 3 Conductor 14 AWG (41x30) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJT.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Insulation Diameter: 0.141 in (3.58 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.402 in (10.2 mm)
• Overall Cable Diameter (Nominal): 0.402 in (10.2 mm)

Standards:

• Voltage Rating: 300 V (Type SJT)
• Operating Temperature: -20°C to +60°C

Applications:

• Portable cordage for supplying power to appliances and tools

Specifications:

• Size (AWG): 14
• No. of Conductor: 3
• Stranding: 41x30
• Conductor Material: BC - Bare Copper
• Part Number: 19364
