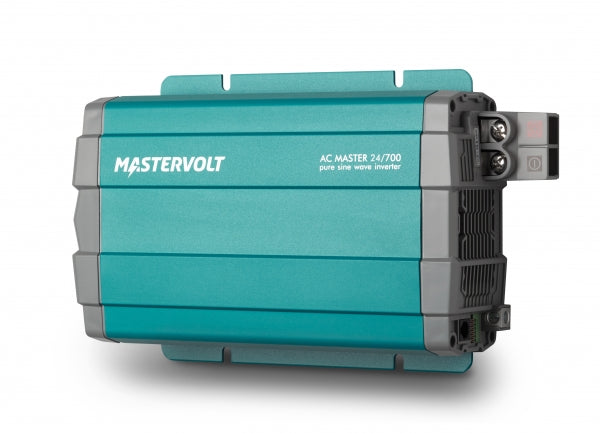

AC Master 24/700 AC Inverter

AC Master 24/700 AC Inverter

SKU: SKU: 28520700   Download PDF

Qty:
Regular price Now $44,365.00   Web pricing policy
Regular price BEFORE   Sale price Now $44,365.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

The AC Master 24/700 are sine wave inverters that convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, ideal for recreational and semi-professional applications They are designed for easy installation and deliver full output under demanding conditions, thanks to pure sine wave technology which ensures outstanding power quality for sensitive equipment With high frequency switching technology, these inverters operate quietly without annoying humming or buzzing sounds.

Providing home comforts at locations far from grid connections, the inverters are reliable and ruggedly built.

Features and Benefits:

    •Pure sine wave technology protects sensitive equipment..

    •Delivers full output at high peak power under the most demanding conditions..

    •Automatic power saving system for extended runtime..

    •Compact and lightweight design, saving valuable installation time..

    •Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage..

    •Variable speed fan for quiet operation at low power..

    •Optional remote control for instant switch off of the inverter and all connected equipment..

    •Both recreational and semi-professional use, where grid power varies or is unavailable..

    •Applications include lighting, appliances, electric cooking and power tools..

    •For (mobile) applications in your home, office or service vehicle, or during your holidays..

Specifications:

 Output voltage 100/110/115/120 V – 50/60 Hz (selectable)
 Output waveform true sine
 Nominal battery voltage 24 V
 Recommended battery capacity ≥ 50 Ah
 Continuous power at 25 °C / 77 °F, cos phi 1 700 W
 Continuous power at 40 °C / 104 °F, cos phi 1 700 W
 Peak load (1 min.) < 810 W
 Peak load (1 s) < 1230 W
 AC connection North American socket with GFCI
 Galvanic isolation yes
 Efficiency 93 %
 Display/read-out LED indication: battery voltage, load level, status
 Alarms potential free alarm contact
 Dimensions, hxwxd 200 x 330 x 83 mm, 7.9 x 13.0 x 3.3 inch
 Weight 2.6 kg, 5.7 lb
 Compliance safety: ABYC A31, UL 458, EMC: FCC class B
 Technology high frequency, input & output fully isolated
 Low battery voltage, switches off at 21 V
 Low battery voltage, switches on at 25 V
 High battery voltage, switches off at 33 V
 High battery voltage, switches on at 29 V
 Input current (nominal load) 35 A
 No-load power consumption (ON mode) < 0.8 A
 No-load power consumption (energy saving mode) < 0.06 A
 Minimal DC fuse (slow blow) 50 A
 Minimal cable size 16 mm²
 Harmonic distortion typical < 5 %
 Cos phi all power factors allowed
 Temperature range (ambient temp.) -20 °C to 60 °C, derating power > 40
 Cooling temperature and load controlled fan
 Protection degree IP21, horizontal wall mounting
 Protections over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
 MasterBus compatible yes, using a MasterBus AC Master Interface
