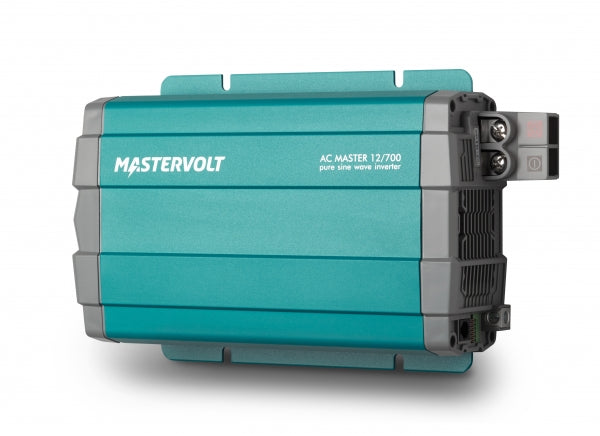

AC Master 12/700 (120 V) Reliable AC power for recreational and semi-professional use

AC Master 12/700 (120 V) Reliable AC power for recreational and semi-professional use

SKU: 28510700 Download PDF

Variant:
  • AC Master 12/700 (120 V) Reliable AC power for recreational and semi-professional use
Now $44,365.00
BEFORE   Now $44,365.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications The AC Master series is easy to install and delivers full output, even under the most demanding conditions The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment.

The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features and Benefits:

    •Pure sine wave technology protects sensitive equipment..

    •Delivers full output at high peak power under the most demanding conditions..

    •Automatic power saving system for extended runtime..

    •Compact and lightweight design, saving valuable installation time..

    •Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage..

    •Variable speed fan for quiet operation at low power..

    •Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models)..

    •Convenient plug connection for all models, 2500/3500 Watt models also hard wired..

    •Combine 2 up to 15 units to obtain high power or 3-phase systems..

    •Integrated transfer system, switches automatically between AC power sources..

    •Both recreational and semi-professional use, where grid power varies or is unavailable..

    •Applications include lighting, appliances, electric cooking and power tools..

    •For (mobile) applications in your home, office or service vehicle, or during your holidays..

Specifications:

 Output voltage 100/110/115/120 V – 50/60 Hz (selectable)
 Output waveform true sine
 Nominal battery voltage 12 V
 Recommended battery capacity ≥ 100 Ah
 Continuous power at 25 °C / 77 °F, cos phi 1 700 W
 Continuous power at 40 °C / 104 °F, cos phi 1 700 W
 Peak load (1 min.) < 810 W
 Peak load (1 s) < 1230 W
 AC connection North American socket with GFCI
 Galvanic isolation yes
 Efficiency 91 %
 Display/read-out LED indication: battery voltage, load level, status
 Alarms potential free alarm contact
 Dimensions, hxwxd 200 x 330 x 83 mm / 7.9 x 13.0 x 3.3 inch
 Compliance safety: ABYC A31, UL 458, EMC: FCC class B
 Technology high frequency, input & output fully isolated
 Low battery voltage, switches off at 10,5 V
 Low battery voltage, switches on at 12,5 V
 High battery voltage, switches off at 16,5 V
 High battery voltage, switches on at 14,5 V
 Input current (nominal load) 70 A
 No-load power consumption (ON mode) < 1,5 A
 No-load power consumption (energy saving mode) < 0,1 A
 Minimal DC fuse (slow blow) 100 A
 Minimal cable size 25 mm²
 Harmonic distortion typical < 3 %
 Cos phi all power factors allowed
 Temperature range (ambient temp.) -20 °C to 60 °C, derating power > 40
 Cooling temperature and load controlled fan
 Protection degree IP21, horizontal wall mounting
 Protections over-temperature, overload, short circuit, high/low voltage
 MasterBus compatible yes, using a MasterBus AC Master Interface
