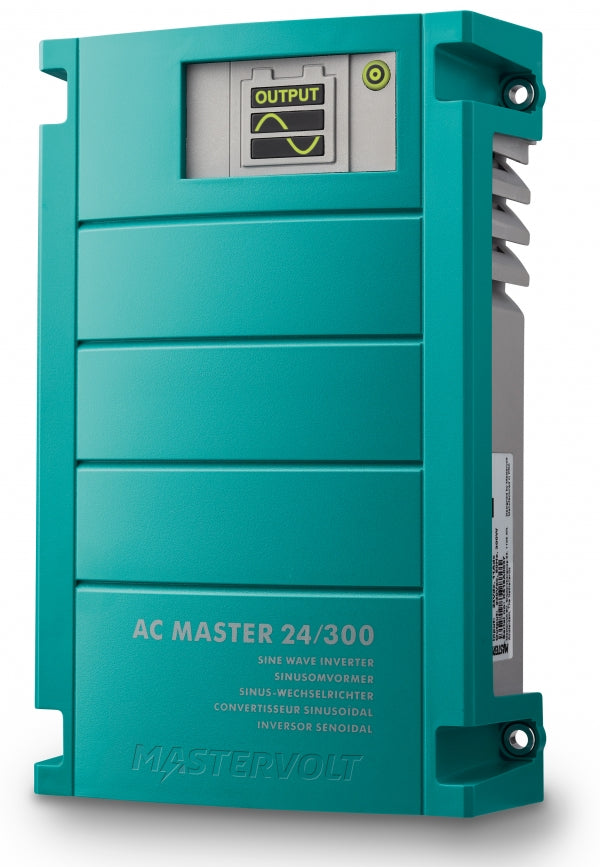

AC Master 24/300 IEC (230 V) Reliable AC power for recreational and semi-professional use

AC Master 24/300 IEC (230 V) Reliable AC power for recreational and semi-professional use

SKU: 28020302 Download PDF

Variant:
  • AC Master 24/300 IEC (230 V) Reliable AC power for recreational and semi-professional use
Now $29,656.00
BEFORE   Now $29,656.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications The AC Master series is easy to install and delivers full output, even under the most demanding conditions The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment.

The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features and Benefits:

    •Pure sine wave technology protects sensitive equipment..

    •Delivers full output at high peak power under the most demanding conditions..

    •Automatic power saving system for extended runtime..

    •Easy to install: convenient IEC socket with IEC plug included..

    •Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage..

    •Both recreational and semi-professional use, where grid power varies or is unavailable..

    •Applications include lighting, appliances, electric cooking and power tools..

    •For (mobile) applications in your home, office or service vehicle, or during your holidays..

Specifications:

 Output voltage 230 V - 50 Hz (± 0.1%)
 Output waveform true sine
 Nominal battery voltage 24 V
 Recommended battery capacity ≥ 30 Ah
 Continuous power at 25 °C / 77 °F, cos phi 1 300 W
 Continuous power at 40 °C / 104 °F, cos phi 1 250 W
 Peak load (5 s) 600 W
 AC connection universal
 Galvanic isolation yes
 Efficiency 91 %
 Display/read-out LED display
 Alarms 4 alarm modes
 Dimensions, hxwxd 210 x 130 x 60 mm
 Dimensions in inches 8.3 x 5.1 x 2.4 inch
 Compliance CE, E-mark, ABYC A-31
 Technology high frequency, input & output fully isolated
 Low battery voltage, switches off at 20 V, ± 0.5 V
 Low battery voltage, switches on at 22 V, ± 0.5 V
 High battery voltage, switches off at 32 V, ± 0.5 V
 High battery voltage, switches on at 29 V, ± 0.5 V
 Max. ripple on DC (battery) 10 % RMS
 Input current (nominal load) 11 A
 No-load power consumption (ON mode) 0.29 A – 7 W
 No-load power consumption (energy saving mode) 0.16 A - 4 W
 Minimal DC fuse (slow blow) 40 A
 Minimal cable size 1.5 metre DC cable delivered as standard
 Harmonic distortion typical < 6 %
 Cos phi all power factors allowed
 Temperature range (ambient temp.) -20 °C to 40 °C, derating > 40
 Cooling natural/forced
 Switch off at (auto recover after cooling down) 50 °C
 Protection degree IP23, vertical wall mounting
 Protections over temperature, over load, short circuit, high/low battery voltage
 MasterBus compatible no
