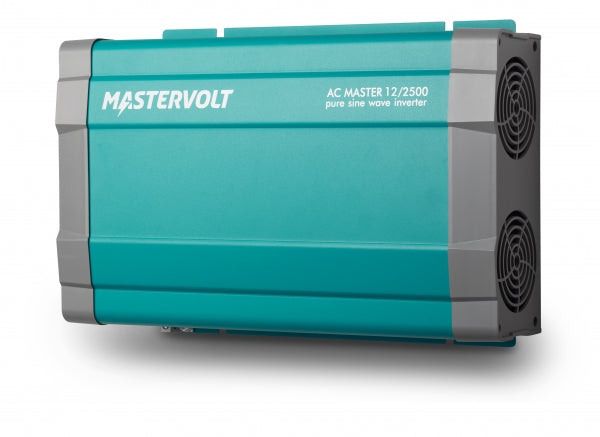

AC Master 12/2500 - Reliable AC Power Inverter

SKU: SKU: 28012500 Download PDF

Variant:

AC Master 12/2500 - Reliable AC Power Inverter

Now $154,085.00

~~BEFORE~~ Now $154,085.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The AC Master 12/2500 is an affordable sine wave inverter that converts 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, perfect for recreational and semi-professional applications It is easy to install and delivers full output even under demanding conditions The inverter features pure sine wave technology for outstanding power quality, ensuring proper functioning of sensitive equipment.

Using high-frequency switching technology eliminates annoying humming and buzzing This rugged inverter provides essential home comforts when away from the grid.

Features and Benefits:

•Pure sine wave technology protects sensitive equipment..

•Delivers full output at high peak power under demanding conditions..

•Automatic power saving system for extended runtime..

•Compact and lightweight design saves valuable installation time..

•Reliable and safe operation protected against over-temperature, overload, short circuit, high or low battery voltage..

•Variable speed fan for quiet operation at low power..

•Optional remote control for instant switch off (not available for the 300 and 500 W models)..

•Convenient plug connection for all models; 2500/3500 Watt models also hard wired..

•Both recreational and semi-professional use where grid power varies or is unavailable, including lighting, appliances, electric cooking and power tools..

•(Mobile) applications in your home, office, service vehicle, or during holidays..

Specifications:

Output voltage	230/240 V – 50/60 Hz (selectable)
Output waveform	true sine
Nominal battery voltage	12 V
Recommended battery capacity	≥ 270 Ah
Continuous power at 25 °C / 77 °F, cos phi 1	2500 W
Continuous power at 40 °C / 104 °F, cos phi 1	2500 W
Peak load (3 s)	< 3000 W
Peak load (< 0.2 s)	< 4000 W
AC connection	hardwired + plug connection EU (Schuko), with UK plug (code 28212500) or NZ/AU plug (code 28412500)
Galvanic isolation	yes
Efficiency	88 %
Parallel configuration	yes, up to 15 units
3-Phase configuration	yes, 3 units
Display/read-out	LED indication: battery voltage, load level, status
Alarms	potential free alarm contact
Dimensions, hxwxd	283 x 436 x 128 mm / 11.1 x 17.2 x 5.0 inch
Weight	8 kg / 17.6 lb
Compliance	CE, E-mark, RCM
Technology	high frequency, input & output fully isolated
Low battery voltage, switches off at	10.5 V
Low battery voltage, switches on at	12.5 V
High battery voltage, switches off at	16.5 V
High battery voltage, switches on at	14.5 V
Input current (nominal load)	250 A
No-load power consumption (ON mode)	< 3.6 A
No-load power consumption (energy saving mode)	< 1.1 A
Minimal DC fuse (slow blow)	300 A
Minimal cable size	95 mm²
Harmonic distortion typical	< 5 %
Cos phi	all power factors allowed
Transfer system	integrated, automatic (inverter to grid: 8~10 ms, grid to inverter: 16~50 ms). Not for parallel & 3-phase operation (external transfer system possible)
Temperature range (ambient temp.)	-20 °C to 60 °C, derating power > 40
Cooling	temperature and load controlled fan
Protection degree	IP21, horizontal wall mounting
Protections	over-temperature, overload, short circuit, high/low voltage
MasterBus compatible	yes, using a MasterBus AC Master Interface
