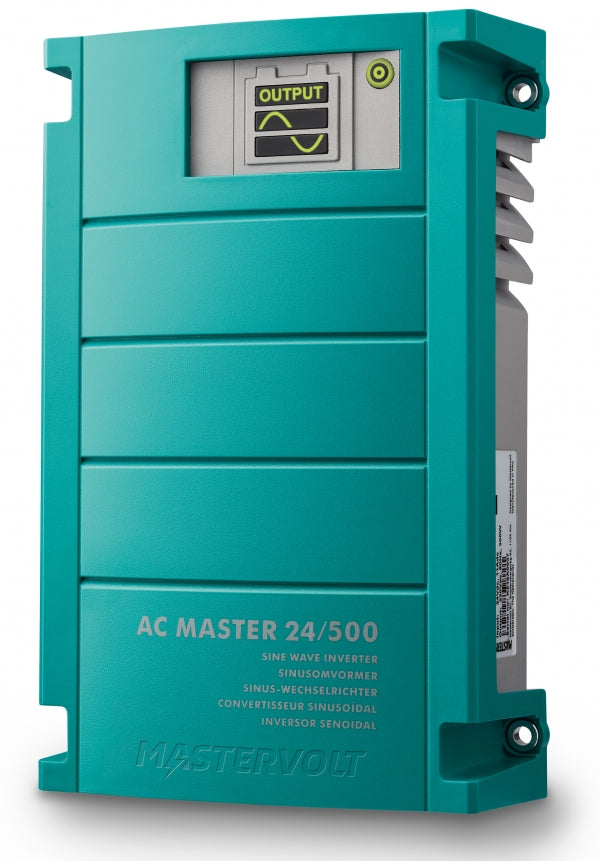

AC Master 24/500 - Reliable AC Power Inverter for Recreational Use

AC Master 24/500 - Reliable AC Power Inverter for Recreational Use

SKU: 28020502 Download PDF

Variant:
  • AC Master 24/500 - Reliable AC Power Inverter for Recreational Use
Now $46,597.00
BEFORE   Now $46,597.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The AC Master 24/500 is an affordable sine wave inverter that converts 12 or 24 V battery voltage into dependable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making it ideal for both recreational and semi-professional applications This inverter is designed for easy installation and can provide full output even in the most challenging conditions It utilizes pure sine wave technology for exceptional power quality, ensuring proper operation of sensitive equipment.

Additionally, high-frequency switching technology minimizes any unwanted humming or buzzing noises, representing excellent value for money by providing essential home comforts when far from the grid.

Features and Benefits:

    •Pure sine wave technology protects sensitive equipment..

    •Full output at high peak power under demanding conditions..

    •Automatic power saving system for extended runtime..

    •Easy installation with convenient IEC socket and plug included..

    •Reliable operation with protections against over-temperature, overload, short circuit, and high/low battery voltage..

    •Recreational and semi-professional use where grid power is variable or unavailable..

    •Suitable for lighting, appliances, electric cooking, and power tools in mobile applications at home, office, service vehicle, or during holidays..

Specifications:

 Output voltage: 230 V - 50 Hz (± 0.1%)
 Output waveform: true sine
 Nominal battery voltage: 24 V
 Recommended battery capacity: ≥ 50 Ah
 Continuous power at 25 °C / 77 °F, cos phi 1: 500 W
 Continuous power at 40 °C / 104 °F, cos phi 1: 400 W
 Peak load (5 s): 800 W
 AC connection: universal
 Galvanic isolation: yes
 Efficiency: 91 %
 Display/read-out: LED display
 Alarms: 4 alarm modes
 Dimensions, hxwxd: 210 x 130 x 60 mm
 Compliance: CE, E-mark, ABYC A-31
 Technology: high frequency, input & output fully isolated
 Low battery voltage, switches off at: 20 V, ± 0.5 V
 Low battery voltage, switches on at: 22 V, ± 0.5 V
 High battery voltage, switches off at: 32 V, ± 0.5 V
 High battery voltage, switches on at: 29 V, ± 0.5 V
 Max. ripple on DC (battery): 10 % RMS
 Input current (nominal load): 19 A
 No-load power consumption (ON mode): 0.29 A – 7 W
 No-load power consumption (energy saving mode): 0.16 A - 4 W
 Minimal DC fuse (slow blow): 40 A
 Minimal cable size: 1.5 metre DC cable delivered as standard
 Harmonic distortion typical: < 6 %
 Cos phi: all power factors allowed
 Temperature range (ambient temp.): -20 °C to 40 °C, derating power > 40
 Cooling: natural/forced
 Switch off at (auto recover after cooling down): 50 °C
 Protection degree: IP23, vertical wall mounting
 Protections: over temperature, over load, short circuit, high/low battery voltage
 MasterBus compatible: no
