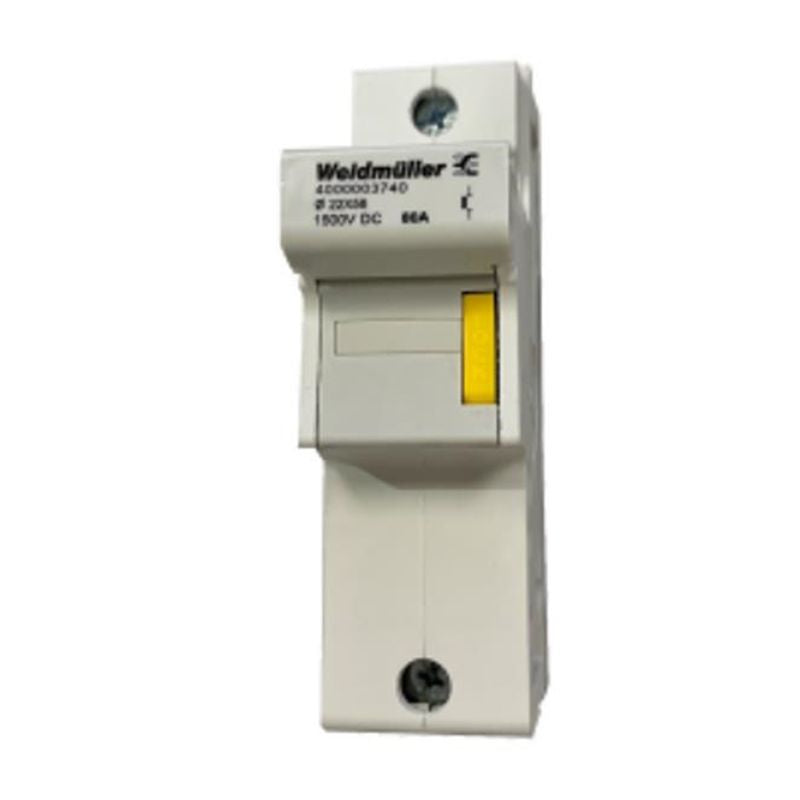

4000003740 - 22x58mm PV Fuse Holder, 80A Max, 1500V Rating (Pack of 6)
4000003740 - 22x58mm PV Fuse Holder, 80A Max, 1500V Rating (Pack of 6)
SKU: SKU: 4000003740 Download PDF
- 4000003740 - 22x58mm PV Fuse Holder, 80A Max, 1500V Rating (Pack of 6)
- 4000003740 - 22x58mm PV Fuse Holder, 80A Max, 1500V Rating (Pack of 6)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Optimize your photovoltaic systems with this reliable fuse holder, expertly designed to handle up to 1500 V Measuring 22x58 mm, it offers a compact body size and supports a cartridge fuse of the same dimensions Capable of managing a maximum current of 80 A, this fuse holder is a practical choice for various solar applications, ensuring efficient and safe operation Please note that it does not come with an LED display.
Features and Benefits:
•Compliant with RoHS without exemption.
•No SVHC above 0.1 wt%.
•Pivoting cartridge holder.
•Screw connection type.
•Copper wire material.
•Supports wire connection with cross sections ranging from AWG 17 to AWG 2.
•Max power dissipation of 12.5 W.
•Mounting rail type TS 35.
•Used in photovoltaic systems.
Specifications:
| Depth | 76.8 mm |
| Height | 126 mm |
| Width | 35.6 mm |
| Net weight | 100 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 90 °C |
| Number of connections | 2 |
| Stripping length | 14 mm |
| Tightening torque, max. | 2.8 Nm |
| Tightening torque, min. | 2 Nm |
| Wire connection cross section AWG, min. | AWG 17 |
| Wire connection cross section AWG, max. | AWG 2 |
| Rated impulse withstand voltage | 6 kV |
| Surge voltage category | III |
