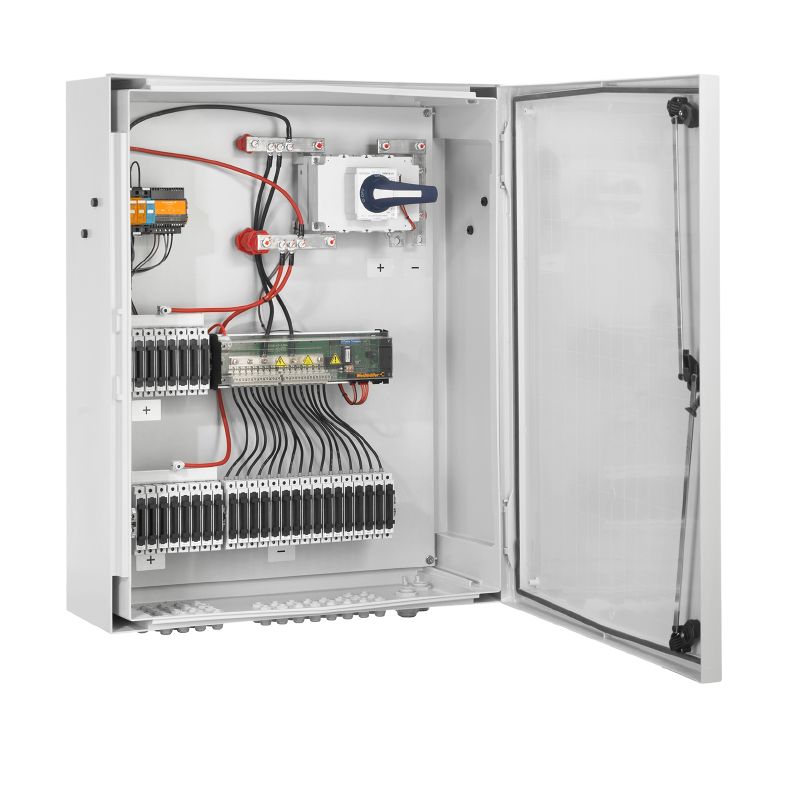

8000050571 - Wall-Mounted Photovoltaic Combiner Box with Fuse Holder and Surge Protection
8000050571 - Wall-Mounted Photovoltaic Combiner Box with Fuse Holder and Surge Protection
SKU: SKU: 8000050571 Download PDF
- 8000050571 - Wall-Mounted Photovoltaic Combiner Box with Fuse Holder and Surge Protection
- 8000050571 - Wall-Mounted Photovoltaic Combiner Box with Fuse Holder and Surge Protection
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Elevate your solar energy setup with this expertly crafted assembled enclosure combiner box Designed specifically for photovoltaic systems, this unit comes equipped with a reliable fuse holder and a class II surge protection feature for added safety It includes a convenient cable gland and is perfect for wall mounting Also included is a switch disconnector for easy operation and control.
Features and Benefits:
•Compliance with RoHS regulations.
•Can handle an ambient temperature range of -20 °C to 50 °C.
•IP65 protection degree for enhanced durability.
•24 DC inputs and 2 DC outputs.
•Compatible with a 10 x 85 mm cartridge fuse rated at 15 A.
Specifications:
| Order No. | 8000050571 |
| GTIN (EAN) | 8430243407106 |
| Depth | 300 mm |
| Height | 635 mm |
| Width | 835 mm |
| Rated voltage | 1,500 V |
| Surge protection DC side | 1500 V type II with remote contact |
| Switching capacity | 400 A (DC21B 1500 V) |
| Protection degree | IP65 |
| Type of mounting | Wall mounting |
| Standards | EN 61439-2:2011, IEC 61439-2 ed 3.0 |
