4000002613 - 1500V Photovoltaic Fuse Holder WSFH 10X85 (Pack of 10)
4000002613 - 1500V Photovoltaic Fuse Holder WSFH 10X85 (Pack of 10)
SKU: SKU: 4000002613 Download PDF
- 4000002613 - 1500V Photovoltaic Fuse Holder WSFH 10X85 (Pack of 10)
- 4000002613 - 1500V Photovoltaic Fuse Holder WSFH 10X85 (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

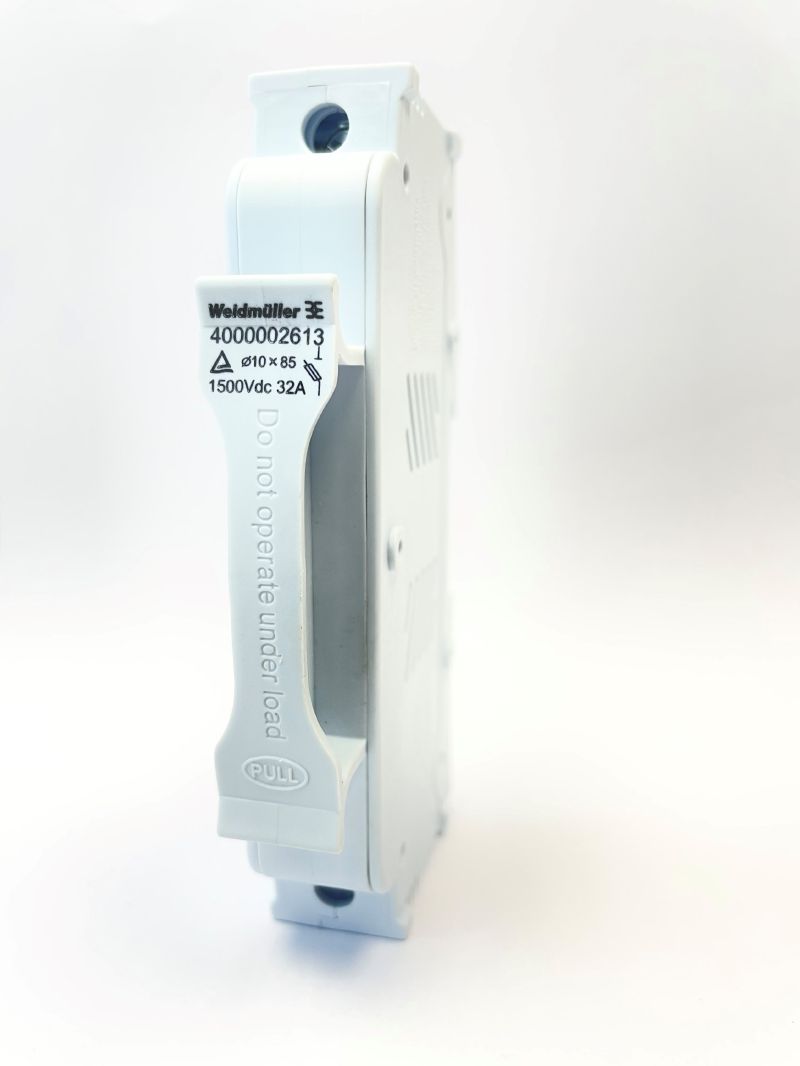

Introducing a specialized fuse holder tailored for photovoltaic systems, this model operates at a voltage rating of 1500 V It is identified by the model number FUSEHOLDER WSFH 10X85 1K5V, with the order code 4000002613 Perfectly suited for solar applications, it combines reliability and efficiency in one compact design.
Features and Benefits:
•RoHS compliant without exemption.
•Environmentally friendly.
•Pivoting cartridge holder.
•Max current capacity of 32 A.
•Screw connection type.
Specifications:
| Depth | 67 mm |
| Height | 125 mm |
| Width | 22.2 mm |
| Operating temperature | -50ºC to +90ºC |
| Number of connections | 2 |
| Stripping length | 9.5 mm |
| Tightening torque, max | 2.5 Nm |
| Tightening torque, min | 2 Nm |
| Wire material | Copper |
| Wire connection cross section AWG, min | AWG 6 |
| Wire connection cross section AWG, max | AWG 17 |
| Fuse holder cartridge | 10 x 85 mm |
| Max. power dissipation | 6.5 W |
| Rated impulse withstand voltage | 6 kV |
| Surge voltage category | III |
