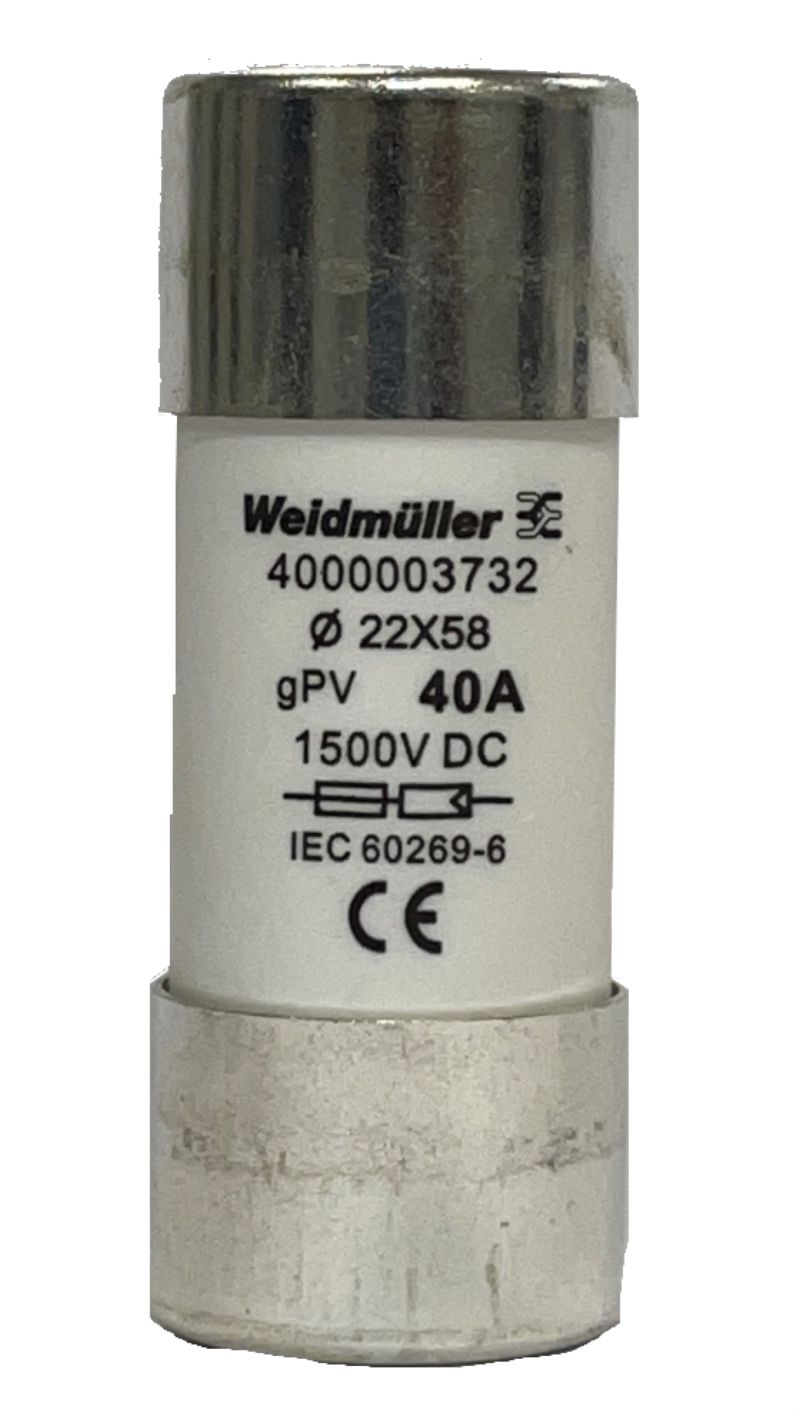

4000003732 - 22x58mm 40A Cartridge Fuse for Solar Applications (Pack of 10)
4000003732 - 22x58mm 40A Cartridge Fuse for Solar Applications (Pack of 10)
SKU: SKU: 4000003732 Download PDF
Select a Variant:
- 4000003732 - 22x58mm 40A Cartridge Fuse for Solar Applications (Pack of 10)
- 4000003732 - 22x58mm 40A Cartridge Fuse for Solar Applications (Pack of 10)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:
Introducing the FUSE WSFL 22X58 cartridge fuse, specifically engineered for photovoltaic systems This robust fuse operates at a maximum voltage of 1500 V and supports a current rating of 40 A Fully compliant with IEC 60269-6 and classified under gPV standards, it is built to deliver dependable performance in solar energy applications.
Features and Benefits:
•RoHS compliant without exemptions.
•No SVHC above 0.1 wt%.
•Max power dissipation of 11.2 W.
•Photovoltaics.
•Solar energy systems.
Specifications:
| Height: | 58 mm |
| Height (inches): | 2.283 inch |
| Width: | 22 mm |
| Width (inches): | 0.866 inch |
| Fuse-link standard: | IEC 60269-6, gPV (EN 60269-6) |
| Current: | 40 A |
| Rated DC voltage: | 1,500 V |
| Power dissapation, max.: | 11.2 W |
| ETIM 7.0: | EC002704 |
| ETIM 8.0: | EC002704 |
| ETIM 9.0: | EC002704 |
| ETIM 10.0: | EC002704 |
| ECLASS 11.0: | 27-14-20-02 |
| ECLASS 12.0: | 27-14-20-02 |
| ECLASS 13.0: | 27-14-20-02 |
| ECLASS 14.0: | 27-14-20-02 |
| ECLASS 15.0: | 27-14-20-02 |
