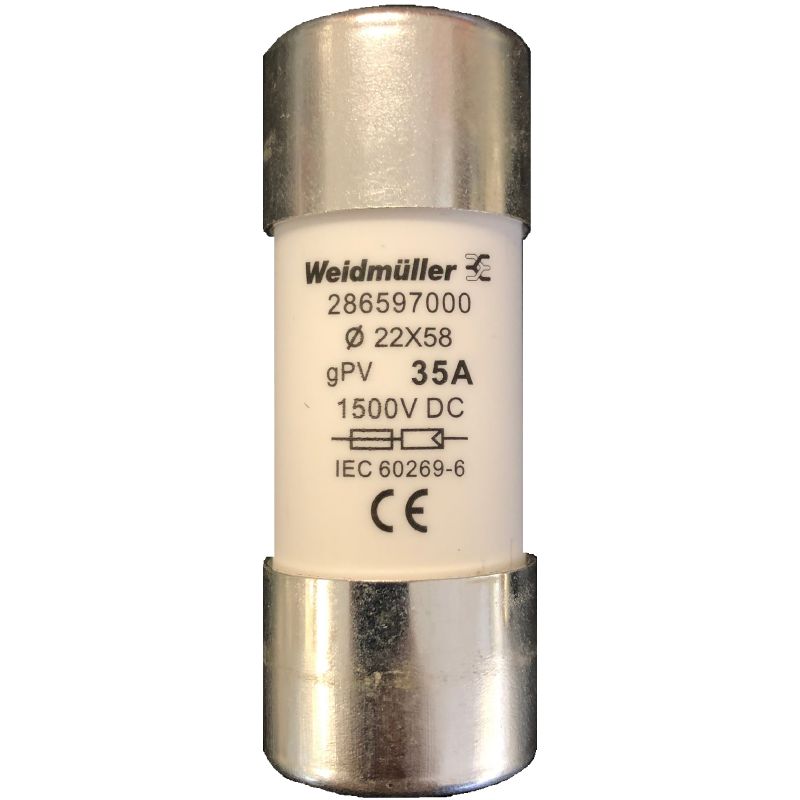

2865970000 - 22x58mm 35A Cartridge Fuse for Photovoltaic Applications (Pack of 10)
2865970000 - 22x58mm 35A Cartridge Fuse for Photovoltaic Applications (Pack of 10)
SKU: SKU: 2865970000 Download PDF
- 2865970000 - 22x58mm 35A Cartridge Fuse for Photovoltaic Applications (Pack of 10)
- 2865970000 - 22x58mm 35A Cartridge Fuse for Photovoltaic Applications (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Ensure safety in your photovoltaic systems with this reliable cartridge fuse, specifically designed for solar applications Measuring 22x58 mm, it boasts a current rating of 35 A and operates effectively at a direct current voltage of 1,500 V This fuse adheres to IEC 60269-6 standards and meets RoHS compliance without exemptions, ensuring both performance and environmental responsibility.
Features and Benefits:
•Photovoltaic application compatibility.
•Cartridge design.
•RoHS compliant without exemption.
•No SVHC above 0.1 wt%.
•Used in photovoltaic systems.
Specifications:
| Height (mm) | 58 |
| Height (inches) | 2.283 |
| Width (mm) | 22 |
| Width (inches) | 0.866 |
| Net weight (g) | 50 |
| Current (A) | 35 |
| Rated DC voltage (V) | 1,500 |
| Power dissipation, max. (W) | 9.8 |
| Fuse-link standard | IEC 60269-6 |
| gPV (EN 60269-6) | |
| ETIM 7.0 | EC002704 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ETIM 10.0 | EC002704 |
| ECLASS 11.0 | 27-14-20-02 |
| ECLASS 12.0 | 27-14-20-02 |
| ECLASS 13.0 | 27-14-20-02 |
| ECLASS 14.0 | 27-14-20-02 |
| ECLASS 15.0 | 27-14-20-02 |
