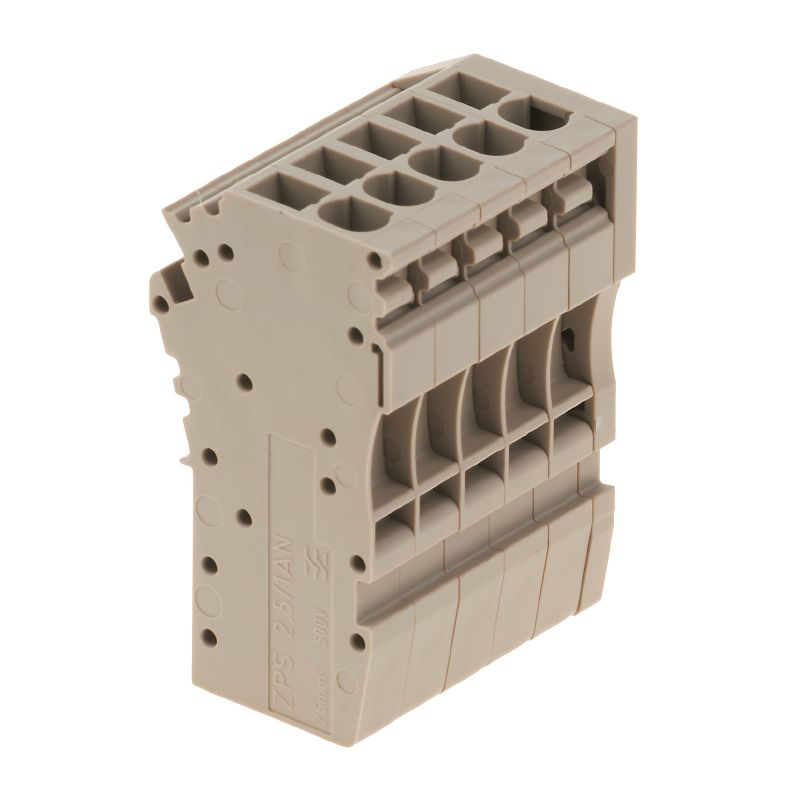

1865930000 - Compact 5-Connection Plug-In Block, 42mm Deep, Dark Beige (Pack of 20)

1865930000 - Compact 5-Connection Plug-In Block, 42mm Deep, Dark Beige (Pack of 20)

SKU: 1865930000 Download PDF

Variant:
  • 1865930000 - Compact 5-Connection Plug-In Block, 42mm Deep, Dark Beige (Pack of 20)
Now $116.13
BEFORE   $0.00 Now $116.13
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ZPS 25/1AN/QV/5, an innovative solution for plug-in connections featuring a rated cross-section of 25 mm² This device is ideal for direct mounting setups and offers five connection potentials for versatile applications Crafted from durable Wemid material, it is presented in an elegant dark beige hue With dimensions of 42 mm deep, 2255 mm tall, and 28 mm wide, this compact unit weighs a lightweight 18.

8 grams, making it easy to handle It excels in various temperature conditions, being suitable for ambient temperatures ranging from -5 °C to 40 °C, and allowing continuous operation between -50 °C and 120 °C Furthermore, this product fully complies with RoHS regulations and contains no REACH SVHC substances exceeding specified thresholds, ensuring safety and environmental responsibility.

Features and Benefits:

    •Direct mounting installation.

    •Five connection potentials.

    •UL 94 flammability rating of V-0.

    •No end cover plate required.

    •Conductors can accommodate specific sizes for clamping.

Specifications:

 Depth 42 mm
 Height 22.55 mm
 Width 28 mm
 Rated voltage 500 V
 Nominal current 24 A
 Rated DC voltage 500 V
 Clamping range, max 4 mm²
 Clamping range, min 0.13 mm²
 Continuous operating temp., min -50 °C
 Continuous operating temp., max 120 °C
 Storage temperature -25 °C...55 °C
 Ambient temperature -5 °C…40 °C
 Wire connection cross-section, solid core, max 4 mm²
 Wire connection cross-section, solid core, min 0.13 mm²
 CSA rating data - Current size C 20 A
 CSA rating data - Voltage size C 300 V
 CSA rating data - Wire cross section max 12 AWG
 Volume resistance according to IEC 60947-7-x 1.33 mΩ
 Rated impulse withstand voltage 6 kV
 Power loss in accordance with IEC 60947-7-x 0.77 W
 Pollution severity 3
