1791120000 - RoHS Compliant Terminal, 1.5mm², 500V, 17.5A, 49.5mm Depth (Pack of 100)

Description:

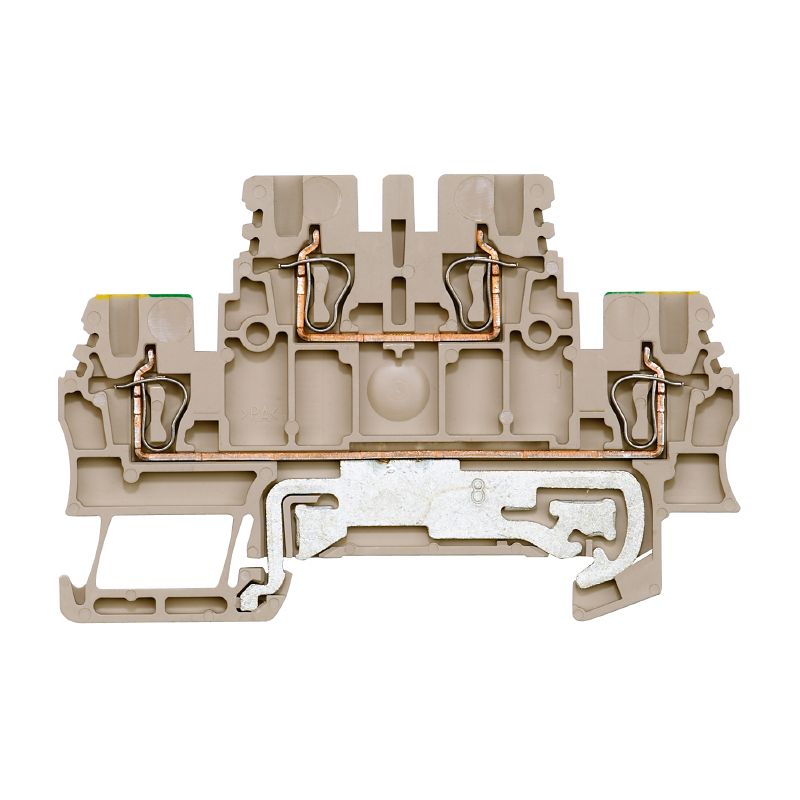

Introducing the ZDK 15DU-PE feed-through terminal, an efficient double-tier device equipped with a tension-clamp connection for conductors sized at 15 mm² This robust terminal boasts a voltage rating of 500 V and supports a maximum current of 175 A Finished in an elegant dark beige, this terminal adheres to RoHS standards for environmental safety With dimensions of 495 mm in depth, 755 mm in height, and 3.

5 mm in width, it is specifically designed for installation on a TS 35 mounting rail Ideal for applications that require plug-in cross-connections, this product is also UL certified, reference number E60693, ensuring its reliability and compliance with safety standards.

Features and Benefits:

•Dark beige color.

•Tension-clamp connection.

•Environmental compliance with RoHS.

•UL 94 flammability rating of V-0.

•Designed for TS 35 mounting rail.

Specifications:
