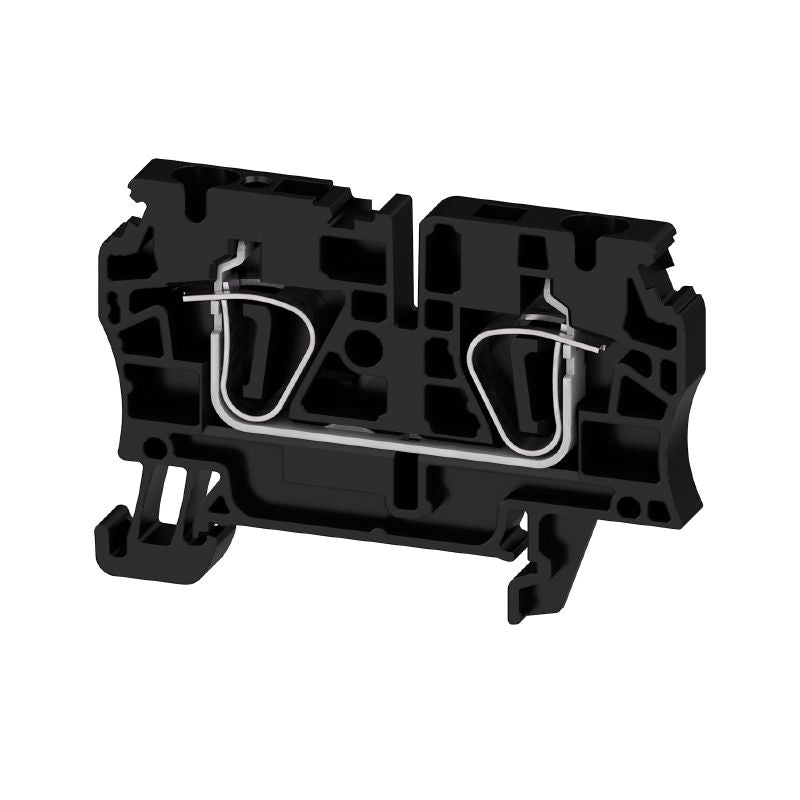

1683650000 - Black 4 mm² Feed-Through Terminal, 800V, 32A (Pack of 100)

SKU: SKU: 1683650000 Download PDF

Select a Variant:

1683650000 - Black 4 mm² Feed-Through Terminal, 800V, 32A (Pack of 100)

SET THE QTY:

Now $132.94 Web pricing policy

~~BEFORE $0.00~~ Now $132.94 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the ZDU 4 SW feed-through terminal, expertly designed with a tension-clamp connection suitable for wire sizes of 4 mm² This robust component operates efficiently at a voltage of up to 800 V and can handle a current capacity of 32 A Finished in an elegant black, this terminal adheres to RoHS standards and is backed by certifications including cURus (E60693) and cURusEX (E184763), ensuring both safety and quality in your electrical applications.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Designed for direct mounting.

•Explosion-tested version.

•Tension-clamp connection.

•End cover plate required.

Specifications:

Depth	43 mm
Height	62 mm
Width	6.1 mm
Storage temperature	-25 °C...55 °C
Ambient temperature	-5 °C…40 °C
Continuous operating temperature (min)	-50 °C
Continuous operating temperature (max)	120 °C
Basic material	Wemid
UL 94 flammability rating	V-0
Max voltage (ATEX)	550 V
Current (ATEX)	28 A
Wire cross section max. (ATEX)	6 mm²
Rated voltage	800 V
Nominal current	32 A
Pollution severity	3
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	1.02 W
Rated cross-section	4 mm²
Number of connections	2
Stripping length	12 mm
