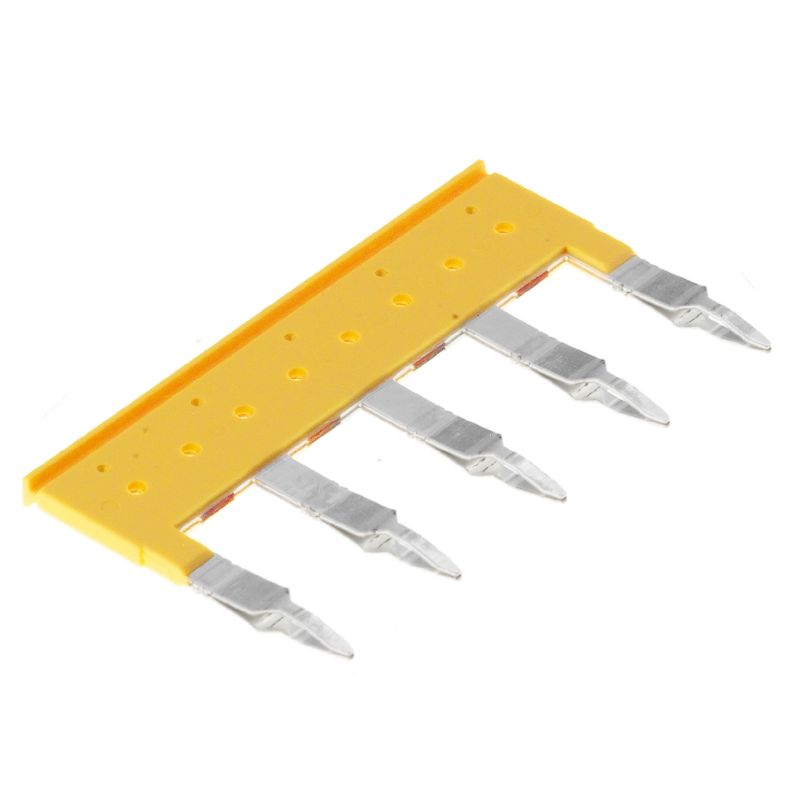

1633230000 - ZQS Cross-Connector, 31.6mm Depth, Rated 24A (Pack of 20)

Description:

Introducing the ZQS 25/5, a versatile cross-connector accessory engineered for reliable performance with a rated current of 24 A This component adheres to RoHS regulations, ensuring it is environmentally compliant Its compact dimensions measure 316 mm in depth, 532 mm in height, and 28 mm in width, while it weighs only 71 g The ZQS 25/5 is designed for optimal functionality within specific temperature parameters, operating in environments between -5 °C and 40 °C, and is capable of withstanding storage temperatures from -25 °C to 55 °C.

Constructed from Wemid material, it boasts a flammability rating of V-0 under UL 94 standards, and supports continuous operation across a temperature range of -50 °C to 120 °C Equipped with five terminals for cross-connections, this unit requires direct mounting with a plug-fixing installation method It is rated for a continuous current of 10 A in multi-pole configurations, ensuring dependable performance for your electrical connections.

Features and Benefits:

•RoHS compliant without exemption.

•Made from Wemid material.

•UL 94 V-0 flammability rating.

•Flexible installation with direct mounting.

Specifications:
