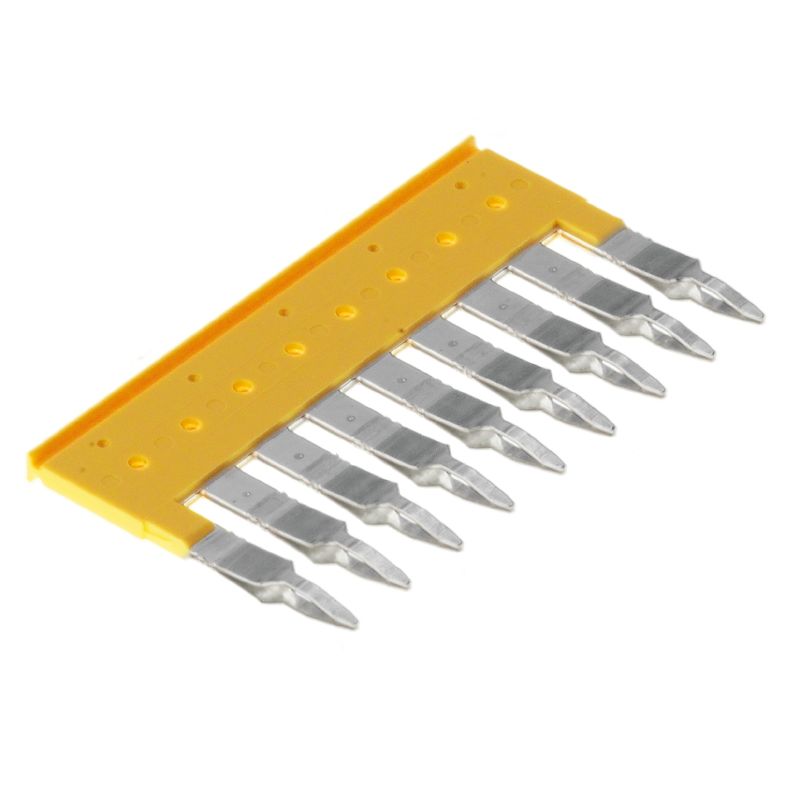

1609020000 - ZQV Cross-Connector 32A, 9 Terminals, RoHS Compliant (Pack of 20)

Description:

The ZQV 4/9 GE cross-connector is engineered for direct mounting and has a rated capacity of 32 A, featuring a total of 9 interconnected terminals It meets RoHS compliance and has been tested for explosive environments This connector operates efficiently in ambient temperatures ranging from -5 °C to 40 °C and can be stored in conditions as low as -25 °C up to 55 °C Notably, it can handle continuous operation temperatures reaching a maximum of 130 °C.

Constructed from Wemid, this component is finished in a vibrant yellow color and boasts a UL 94 flammability rating of V-0 It is rated for a maximum voltage of 400 V For optimal performance, it is important to note that only 60% of the contact elements should be utilized due to stability and temperature factors, with voltage ratings adjusted based on the cross-connection method employed.

Features and Benefits:

•Direct mounting installation.

•Compliant with RoHS regulations.

•Explosion-tested version available.

•Made from Wemid material.

•UL 94 flammability rating of V-0.

•Rated for 32 A current.

Specifications:
