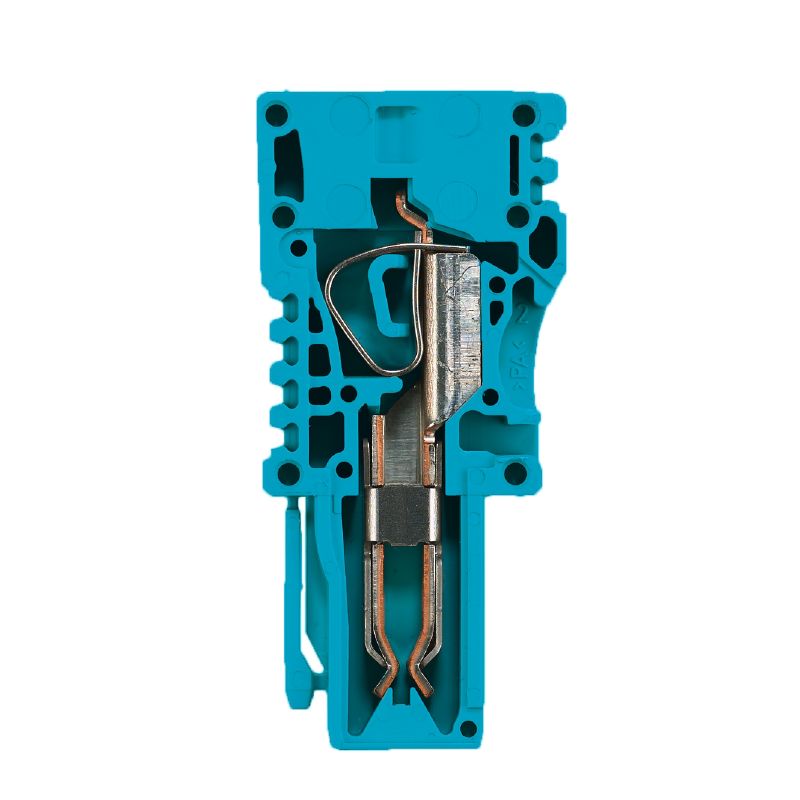

1356790000 - Plug-in Connector, 47.5mm Depth, RoHS Compliant (Pack of 50)

SKU: SKU: 1356790000 Download PDF

Select a Variant:

1356790000 - Plug-in Connector, 47.5mm Depth, RoHS Compliant (Pack of 50)

SET THE QTY:

Now $166.78 Web pricing policy

~~BEFORE $0.00~~ Now $166.78 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the ZP 4/1AN ZA BL plug-in connector, specifically engineered for direct mounting applications This compact connector meets multiple industry standards, including RoHS compliance With dimensions of 475 mm in depth, 225 mm in height, and 65 mm in width, it has a lightweight design, weighing just 67 grams The connector is built to perform in a wide range of ambient temperatures, functioning effectively between -5 °C and 40 °C.

For storage, it can withstand temperatures as low as -25 °C and as high as 55 °C, while maintaining reliability across an impressive continuous operating range of -50 °C to 120 °C.

Features and Benefits:

•Direct mounting installation.

•Compliant without exemption to RoHS.

•Closed open sides design.

•Plug type with assembly peg.

•Tension-clamp connection.

Specifications:

Depth	47.5 mm
Height	22.5 mm
Width	6.5 mm
Net weight	6.7 g
Rated cross-section	4 mm²
Rated voltage	800 V
Nominal current	32 A
Temperature (Storage)	-25 °C to 55 °C
Temperature (Ambient)	-5 °C to 40 °C
Continuous operating temp. (min)	-50 °C
Continuous operating temp. (max)	120 °C
Clamping range (max)	6 mm²
Clamping range (min)	0.13 mm²
Wire connection cross-section (max, AWG)	10 AWG
Wire connection cross-section (min, AWG)	26 AWG
Current size C (CSA)	28 A
Voltage size C (CSA)	600 V
