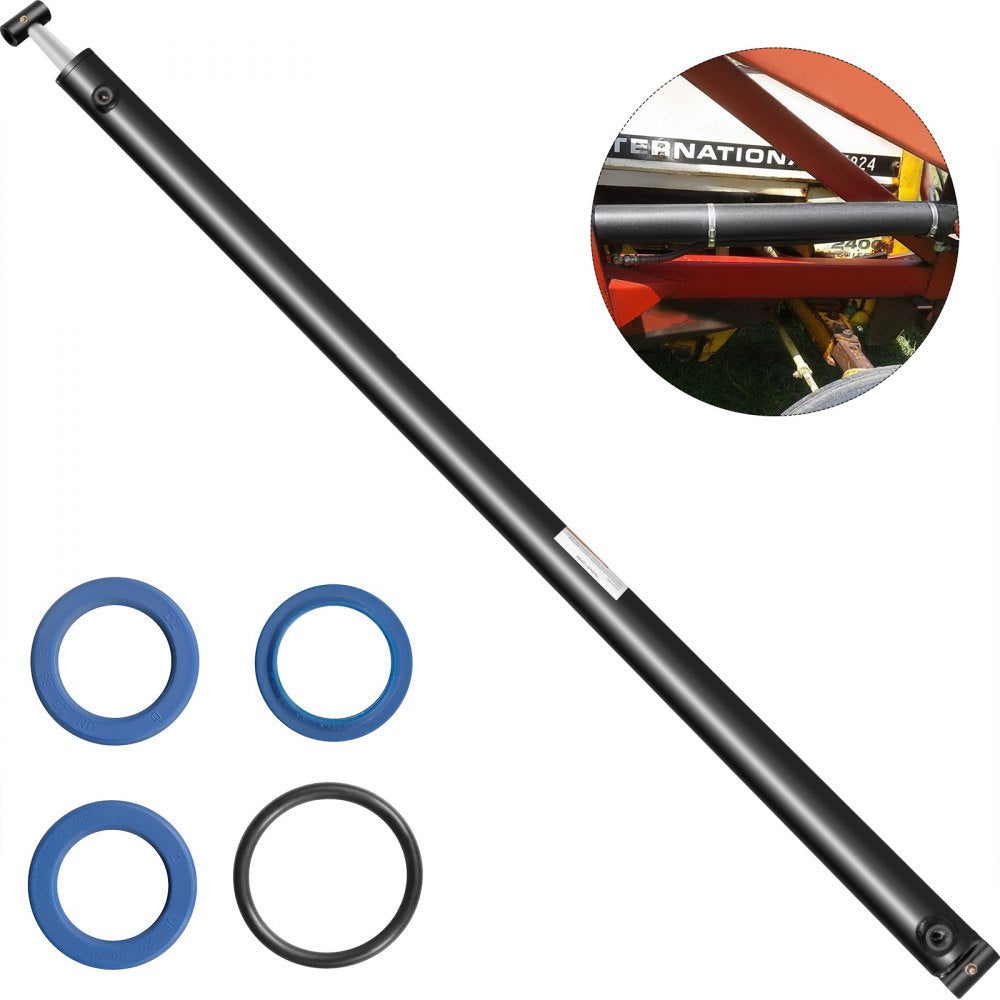

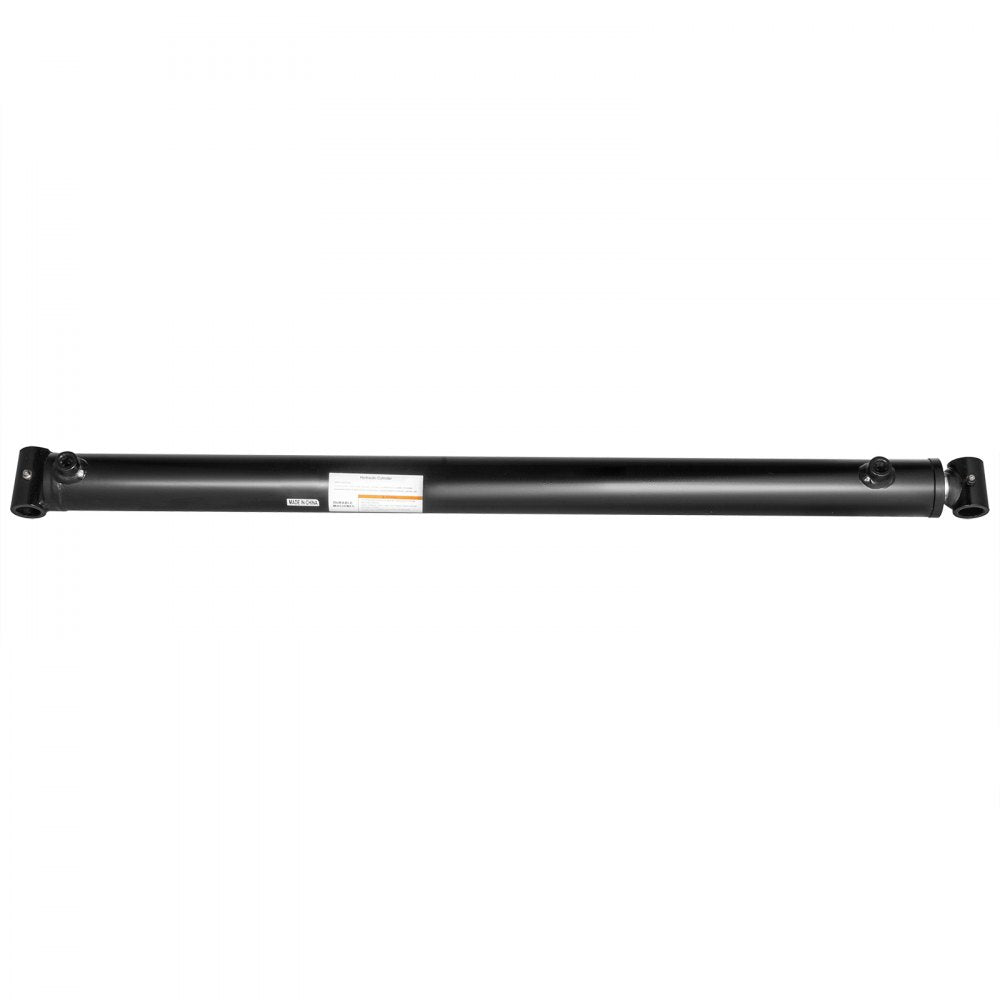

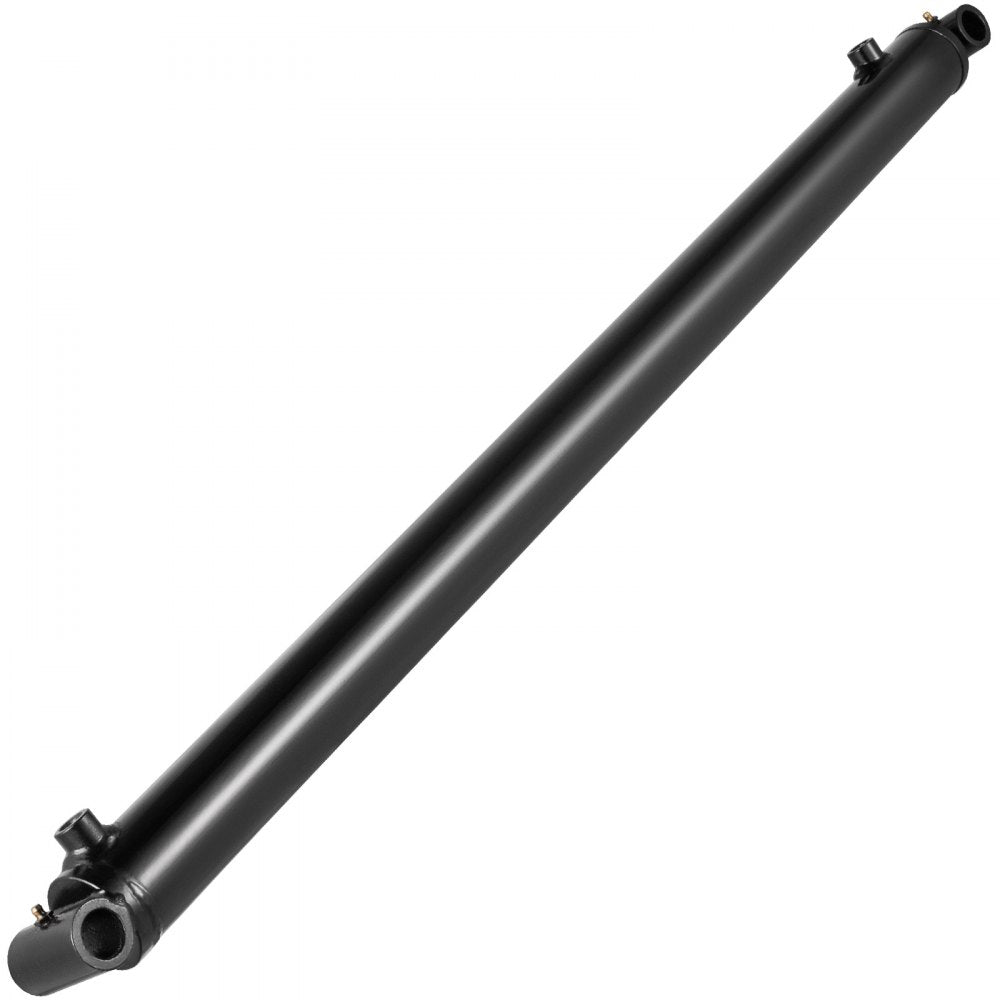

010225840679 - 36" Hydraulic Cylinder, 2" Bore, Double Acting Ram
010225840679 - 36" Hydraulic Cylinder, 2" Bore, Double Acting Ram
SKU: SKU: 010225840679 Download PDF
- 010225840679 - 36" Hydraulic Cylinder, 2" Bore, Double Acting Ram
- 010225840679 - 36" Hydraulic Cylinder, 2" Bore, Double Acting Ram
Couldn't load pickup availability
Description:
Introducing a robust 36-inch double-acting hydraulic cylinder, expertly crafted for durability and ease of maintenance This cylinder boasts a solid welded construction and is designed for straightforward assembly With an impressive maximum load capacity, it effectively addresses issues like oil leaks and inadequate thrust Suitable for use across a variety of mobile machinery, this hydraulic cylinder is perfect for applications in waste management, recycling, construction, transportation, agriculture, and material handling.
Features and Benefits:
•Rigid Welded Construction.

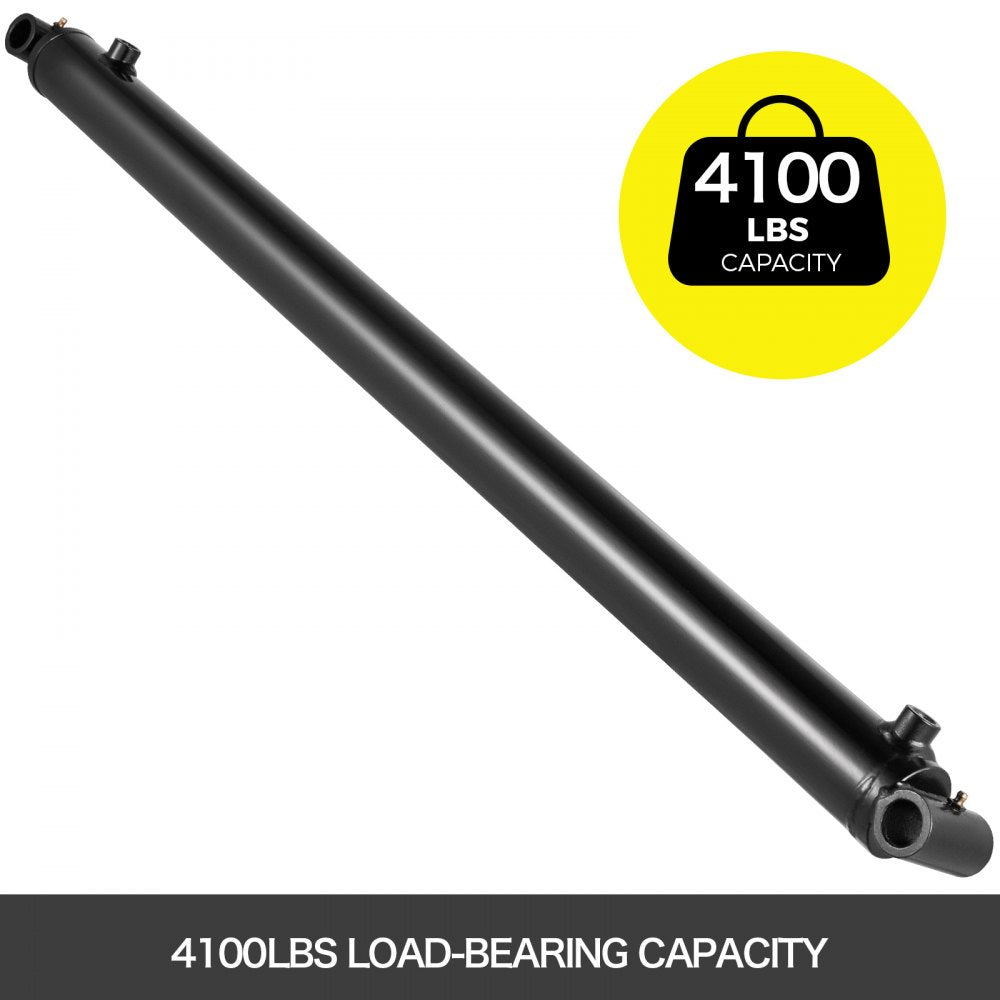

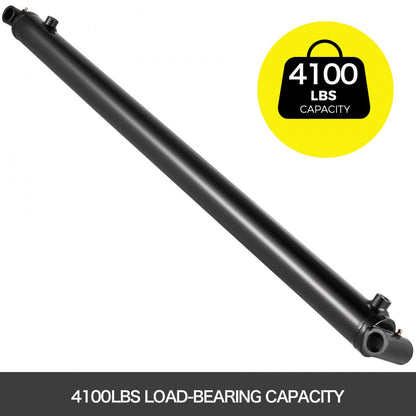

•Max Load-Bearing Capacity of 4100 LBS.

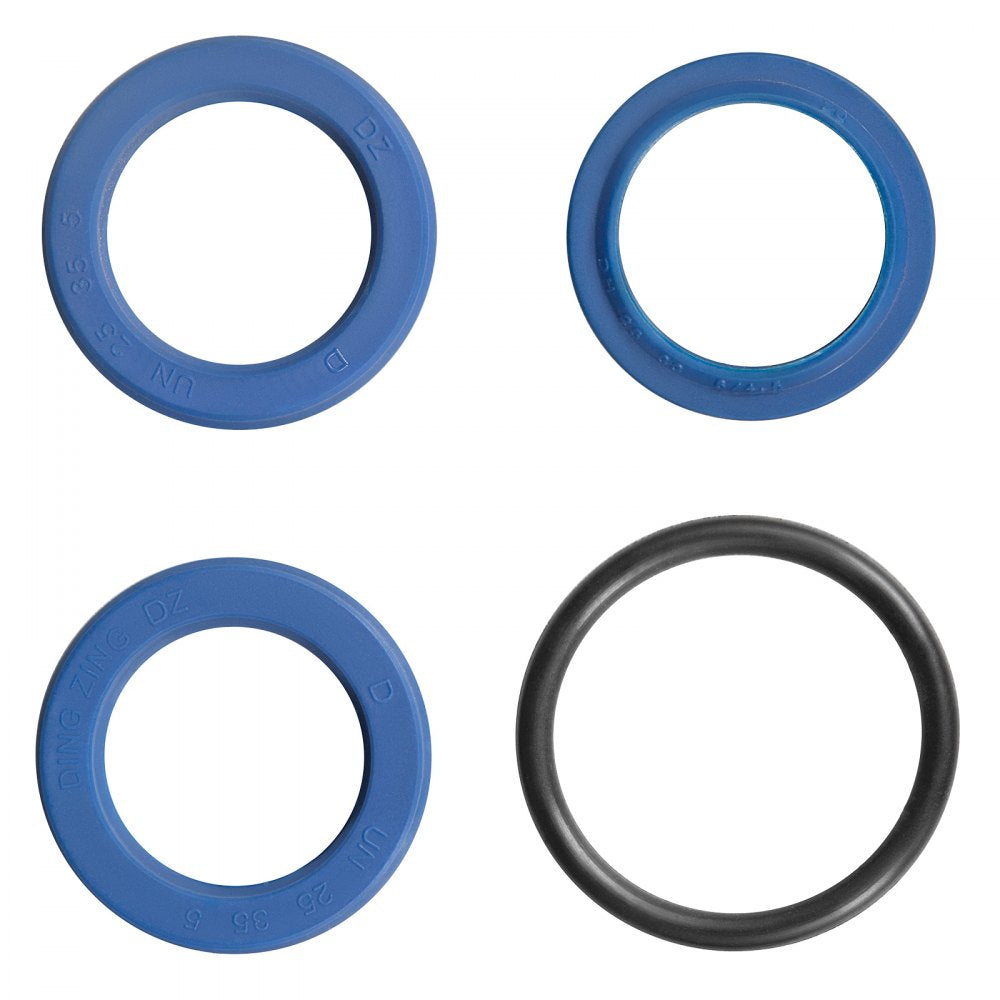

•Stable Sealing Performance.
•Convenient To Assemble.

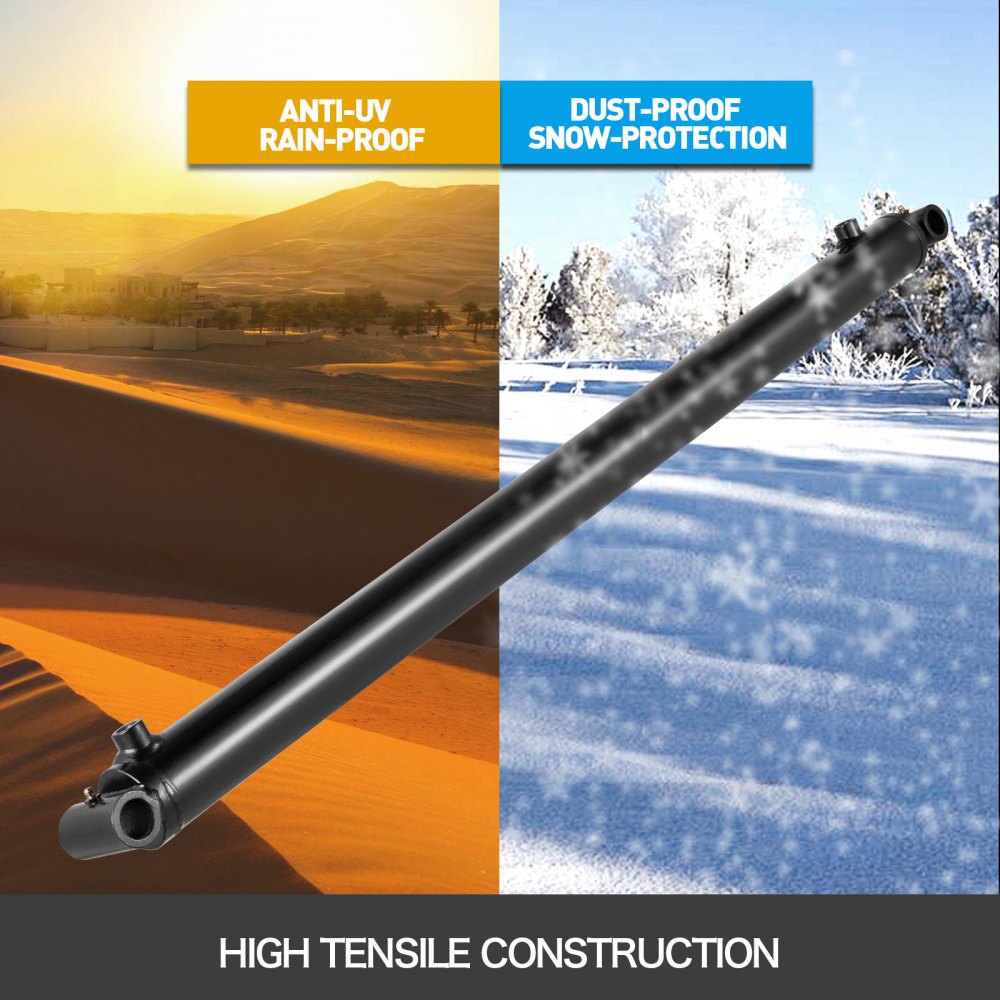

•High Tensile Construction.

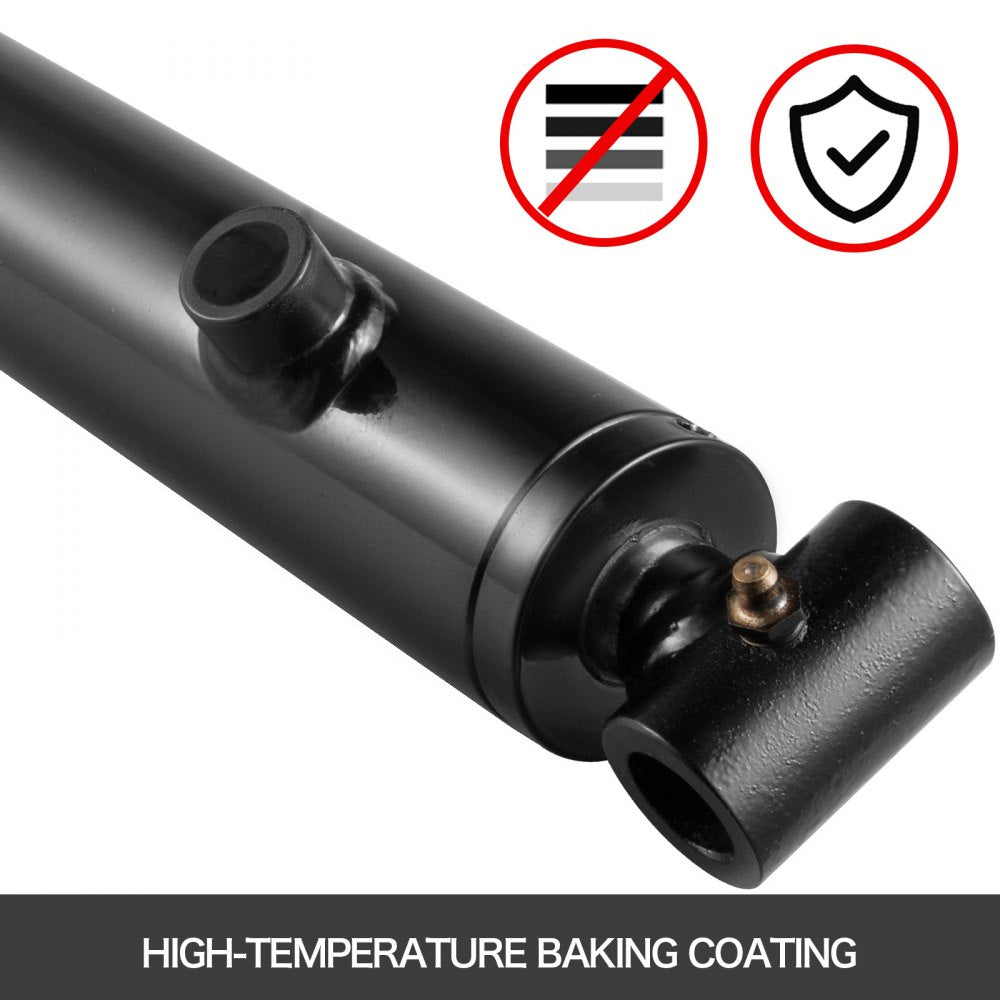

•High-temperature Baking Coating to prevent scratches, paint loss or fade.

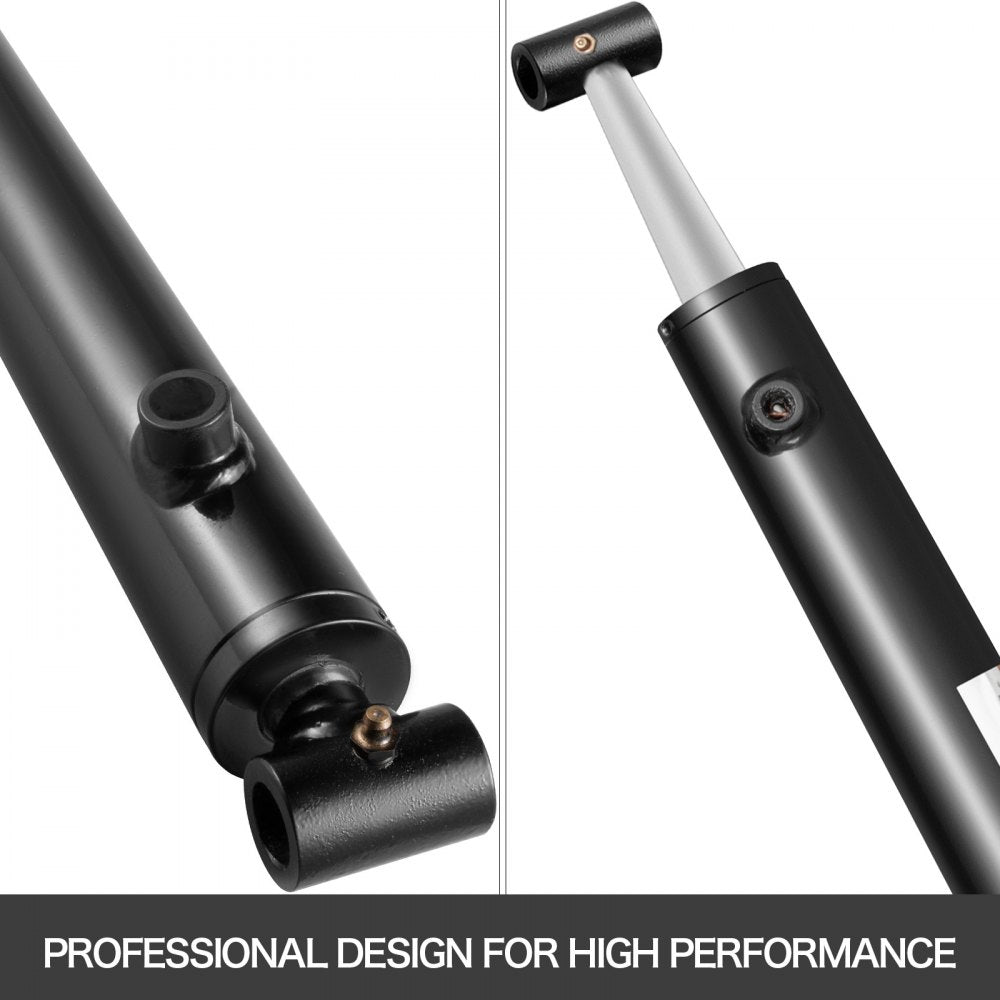

•Professional Design for High Performance.

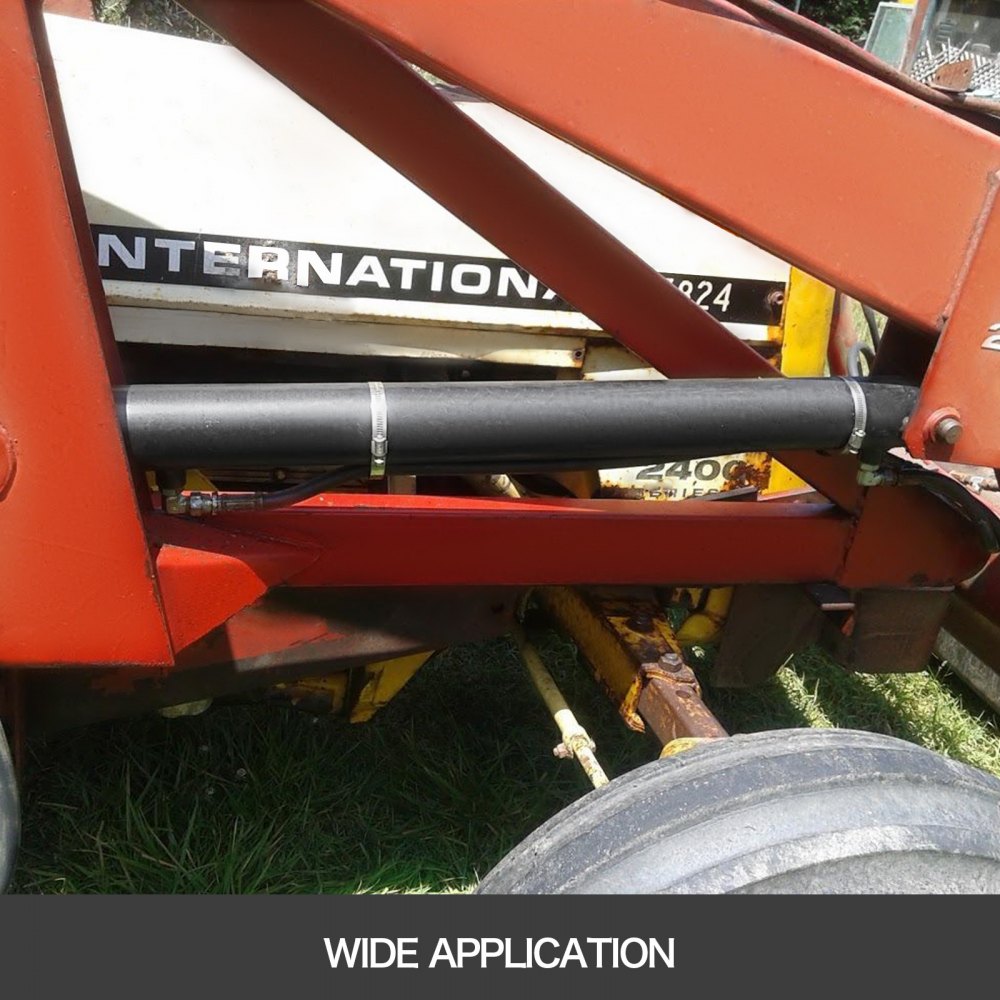

•Suitable for various types of mobile equipment.
•Waste and recycling.
•Construction.
•Transportation.
•Agriculture.
•Material handling.

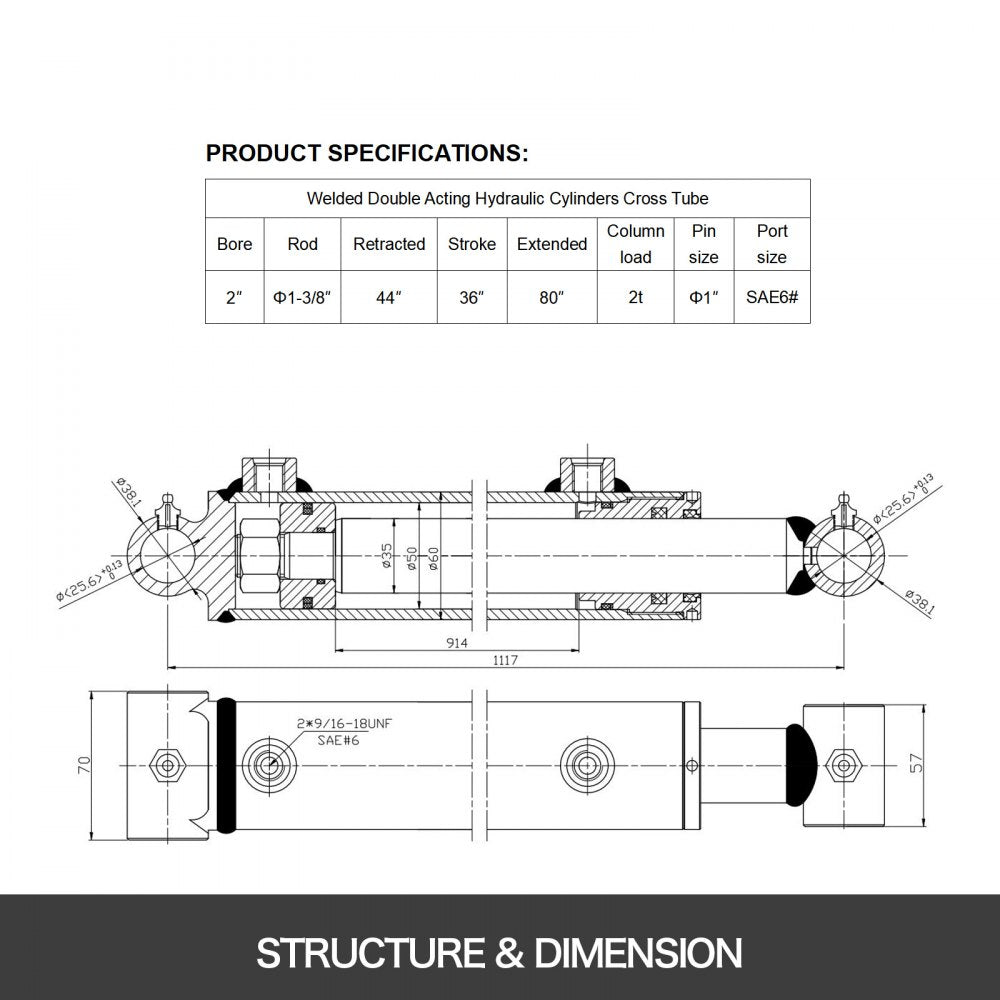

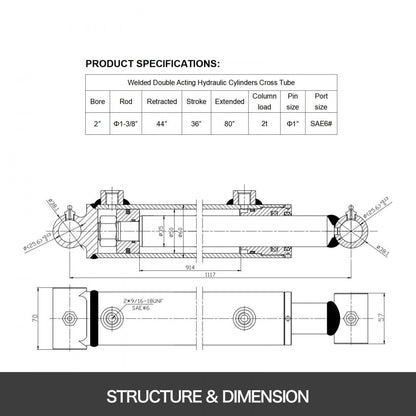

Specifications:
| Cylinder Bore | 50mm/2" |
| Stroke | 914mm/36" |
| Pin | 26mm/1.0" |
| Diameter Of Piston Rod | 35mm/1.3" |

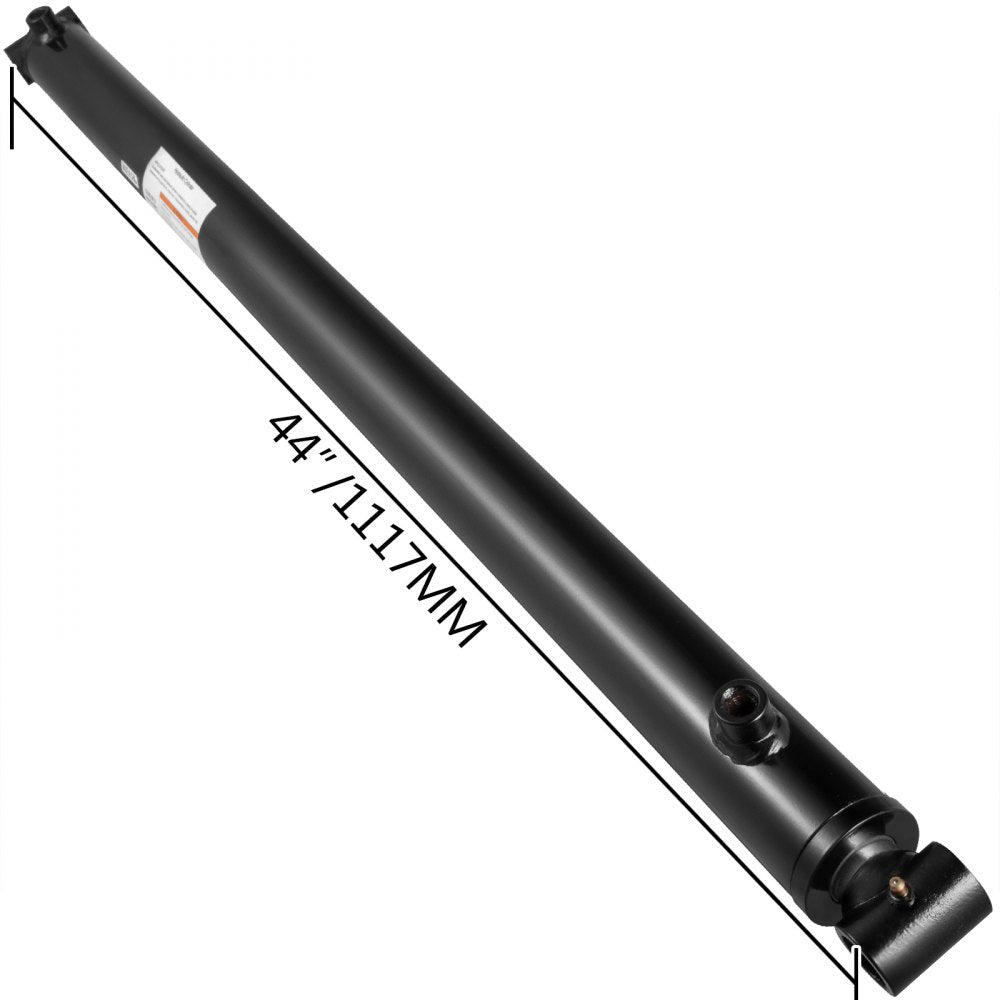

| Minimum Length | 1117mm/43.9" |
| Max Length | 2032mm/80.0" |
| Max Load-Bearing Capacity | 4100 LBS |
| Port Size | SAE6 |
| Work Pressure | 3500PSI |
| Packing Size | 1160mm*85mm*85mm/45.6" x 3.3" x 3.3" |
