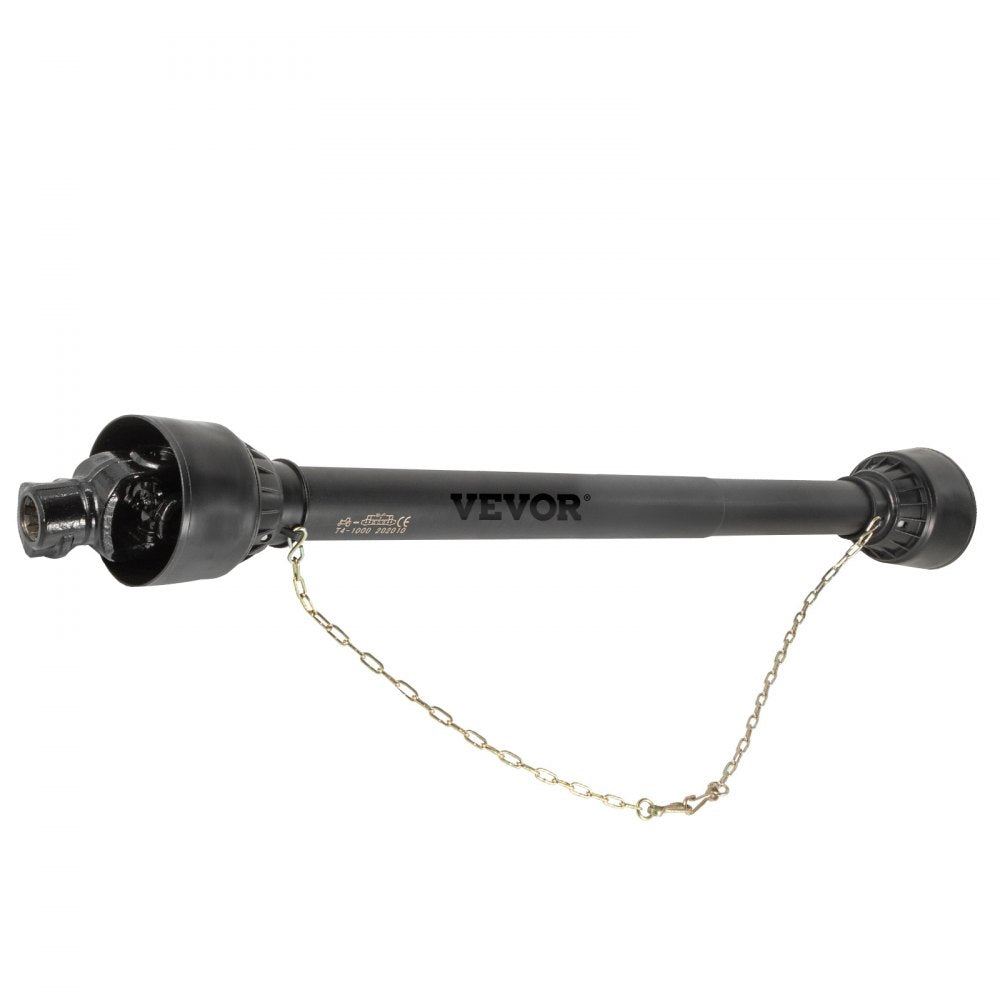

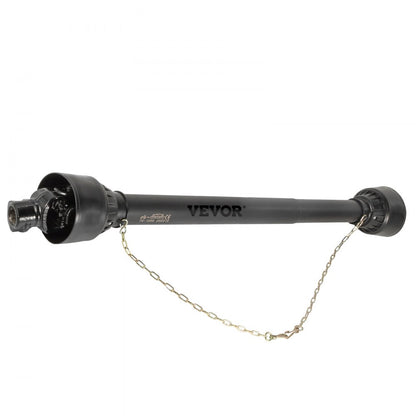

T4-BⅢP*1300mm*4.05.05B*4.05.A35 - 51"-74" Steel PTO Drive Shaft for Tractors

T4-BⅢP*1300mm*4.05.05B*4.05.A35 - 51"-74" Steel PTO Drive Shaft for Tractors

SKU: SKU: T4-BⅢP*1300mm*4.05.05B*4.05.A35 Download PDF

Variant:
  • T4-BⅢP*1300mm*4.05.05B*4.05.A35 - 51"-74" Steel PTO Drive Shaft for Tractors
Regular price Now $107.52
Regular price BEFORE   $0.00 Sale price Now $107.52
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

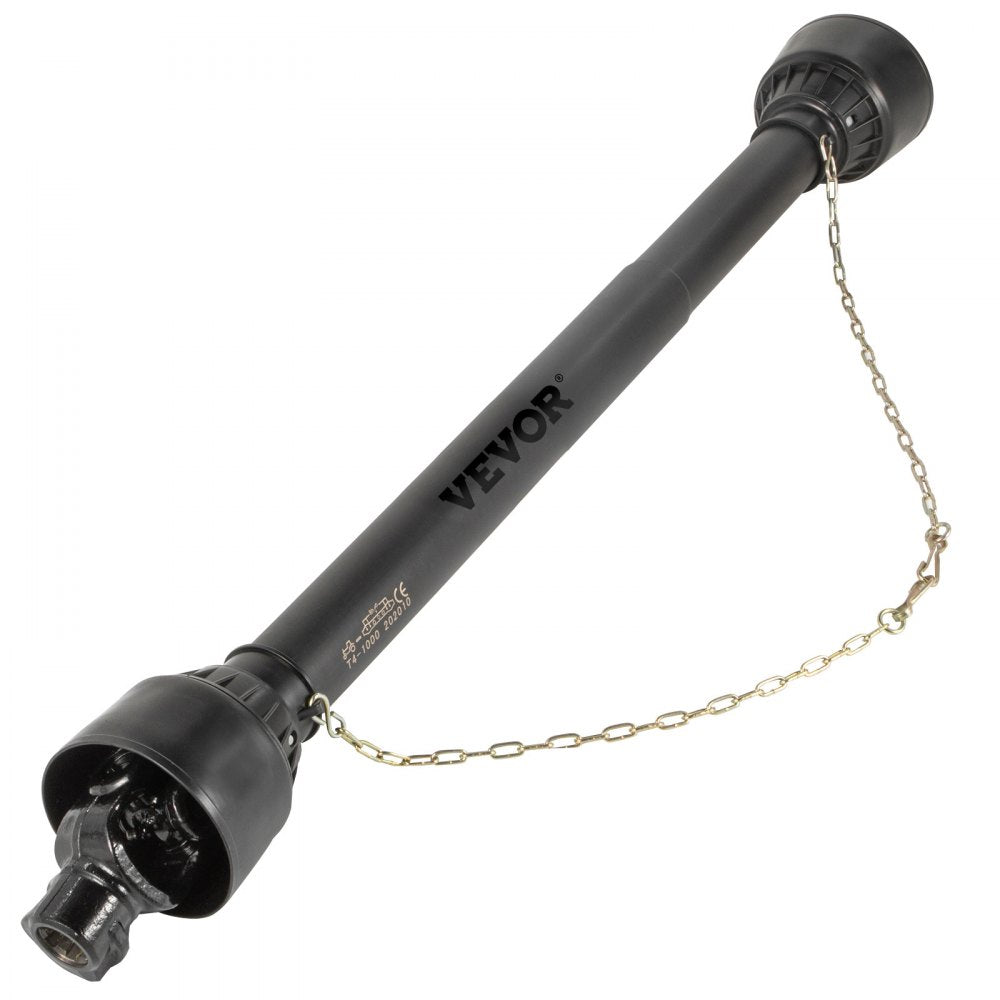

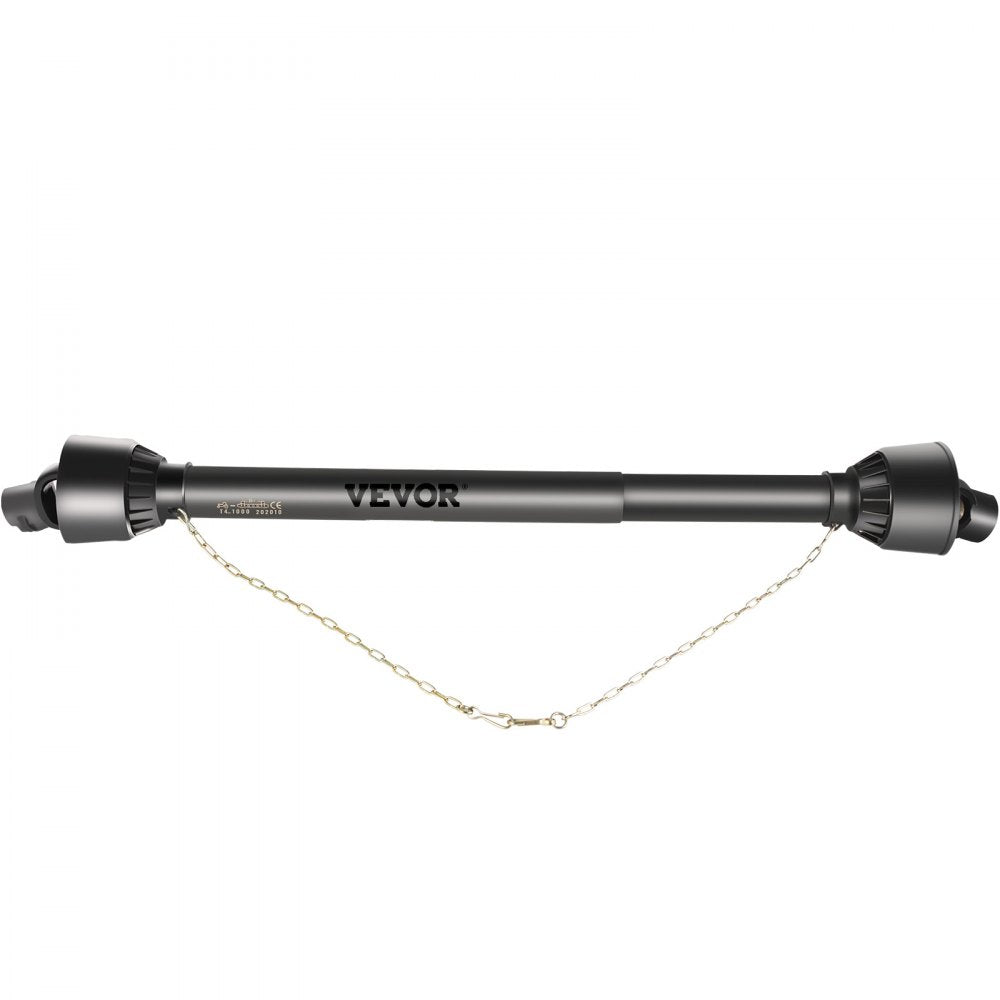

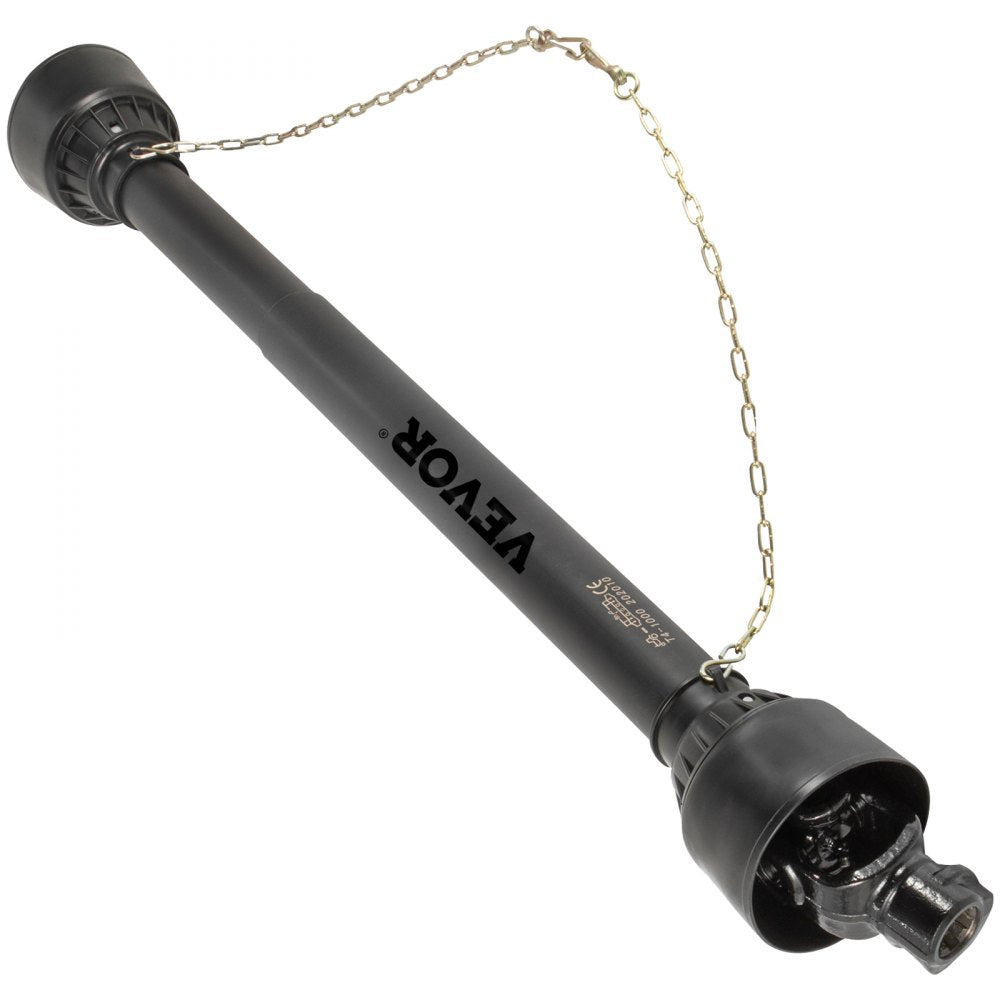

Discover the robust capabilities of this splined PTO shaft, expertly crafted from durable steel It features a 6-spline end for tractors and a round implement end, allowing for versatile application With an adjustable telescoping tube, it offers essential horsepower and straightforward replacement Elevate your farming efficiency with this powerful drive shaft, designed to deliver reliable performance for a variety of agricultural equipment.

Keep your operations running smoothly—this PTO shaft ensures you can tackle every task with confidence.

Features and Benefits:

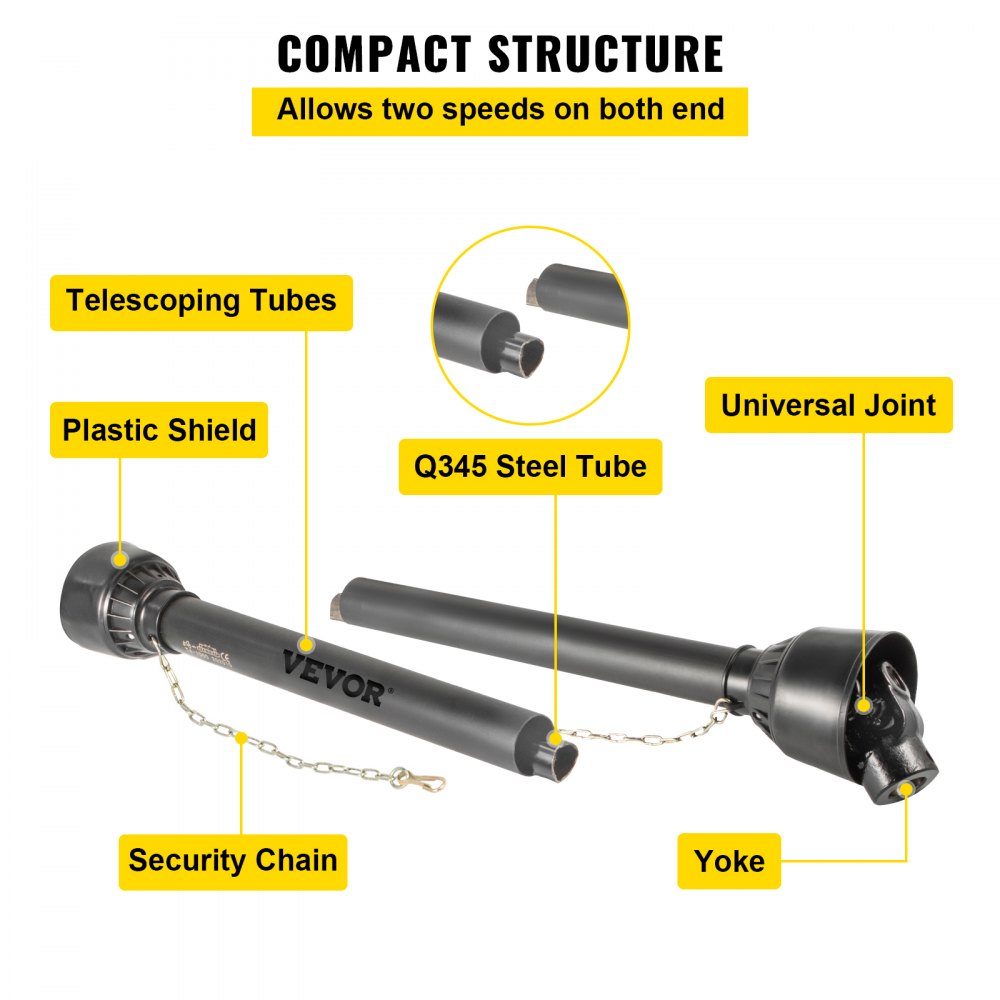

    •Sturdy and Durable construction from high-quality materials such as 20CrMnTi carburized steel and Q345 steel..

    •6 Spline & Round Ends compatible with various farm equipment..

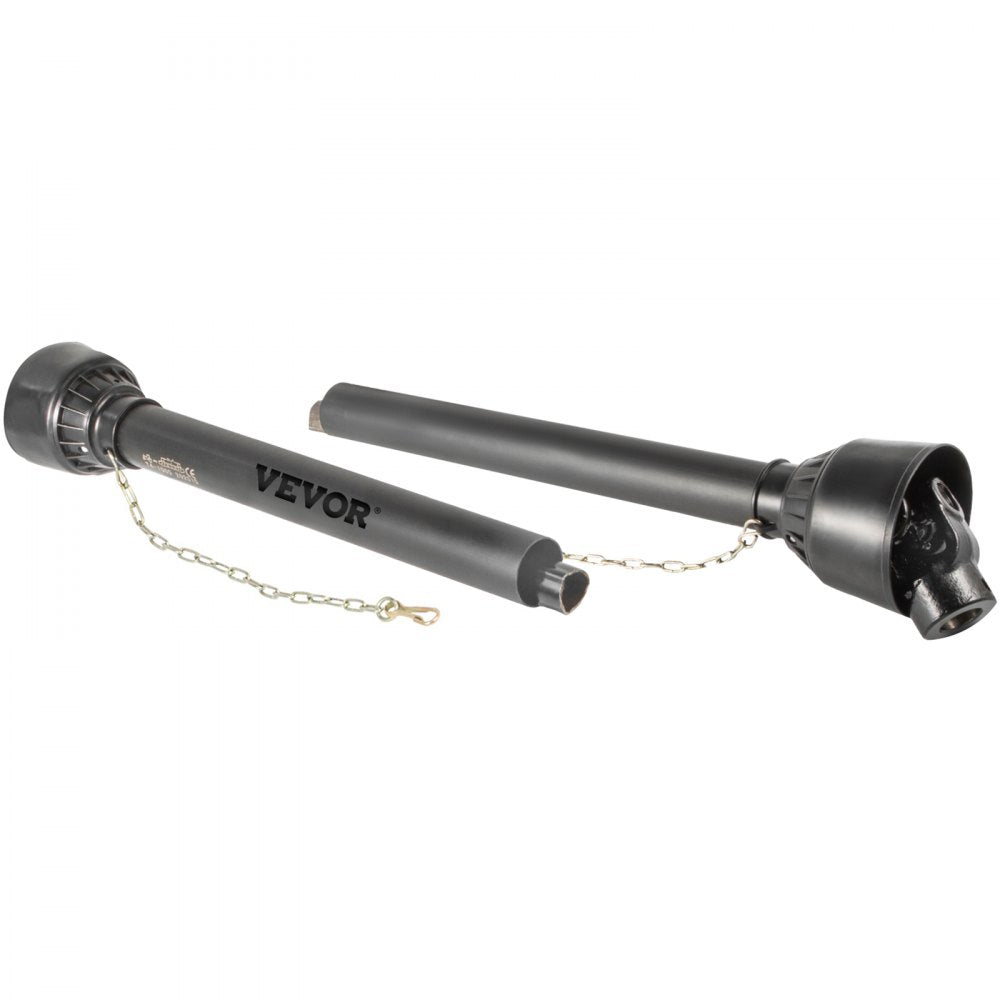

    •Adjustable length from 51" to 74" accommodating different uses..

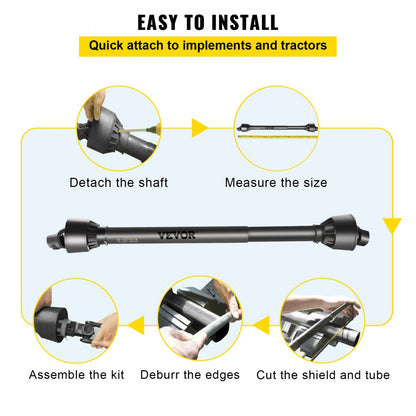

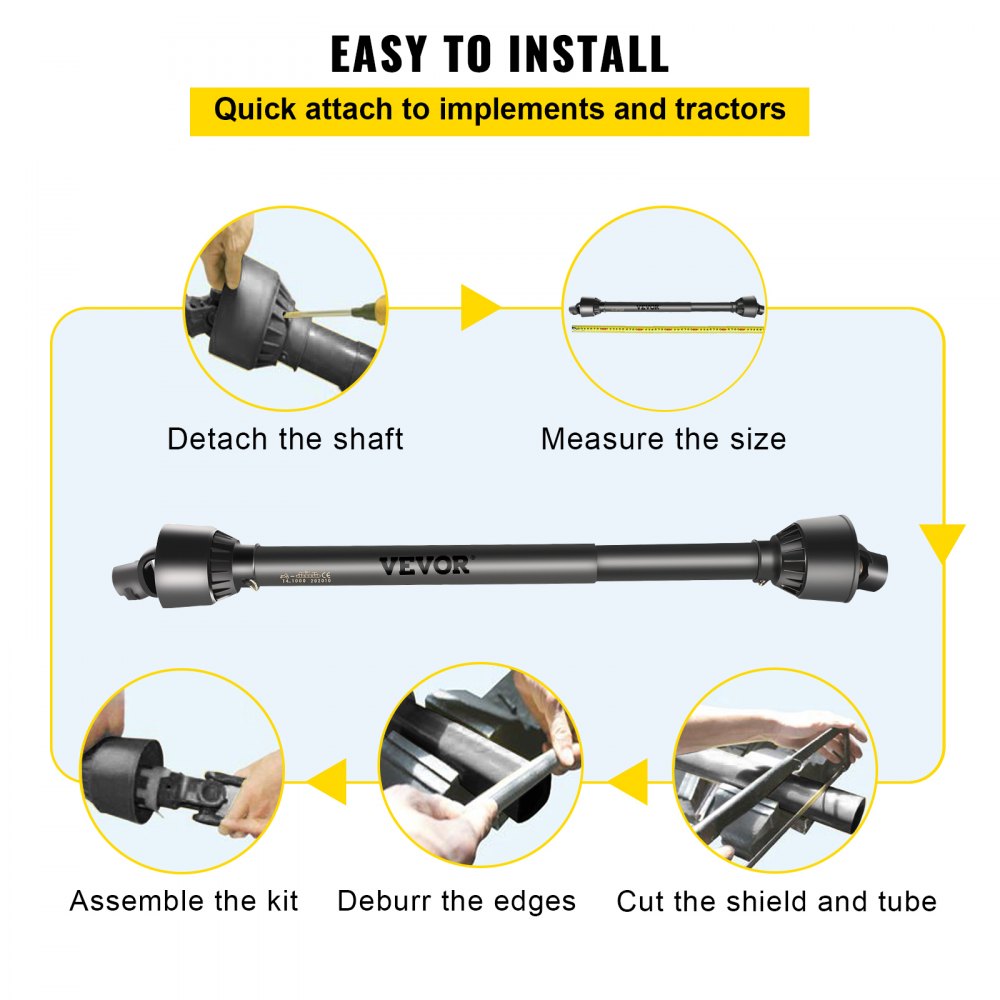

    •Easy assembly for safer and efficient power transmission..

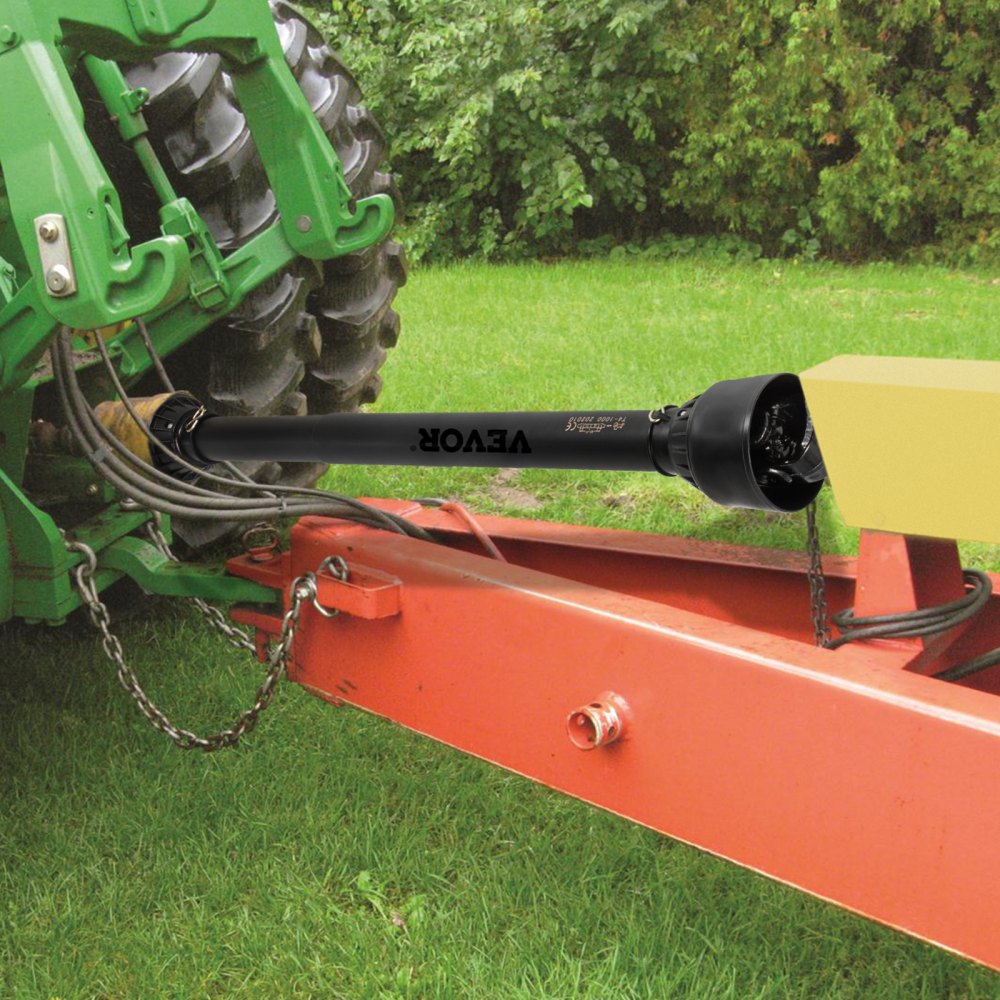

    •Wide application for mowers, wood chippers, and other agricultural machinery..

    •Used with mowers, rotary tillers, brush cutters, hush hug, and tractors among other equipment..

Specifications:

 Model T4-BⅢP*1300mm*4.05.05B*4.05.A35
 Part Type PTO Drive Shaft
 Series 4
 Certificate CE Certification
 Material 20CrMnTi Carburized Steel + Q345 Steel + Plastic

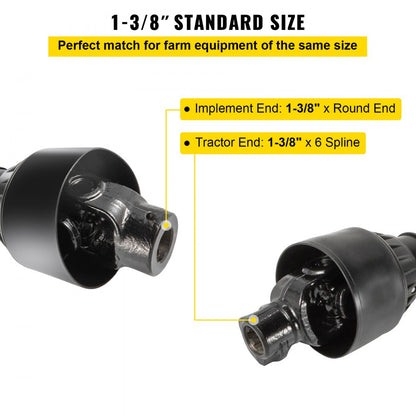

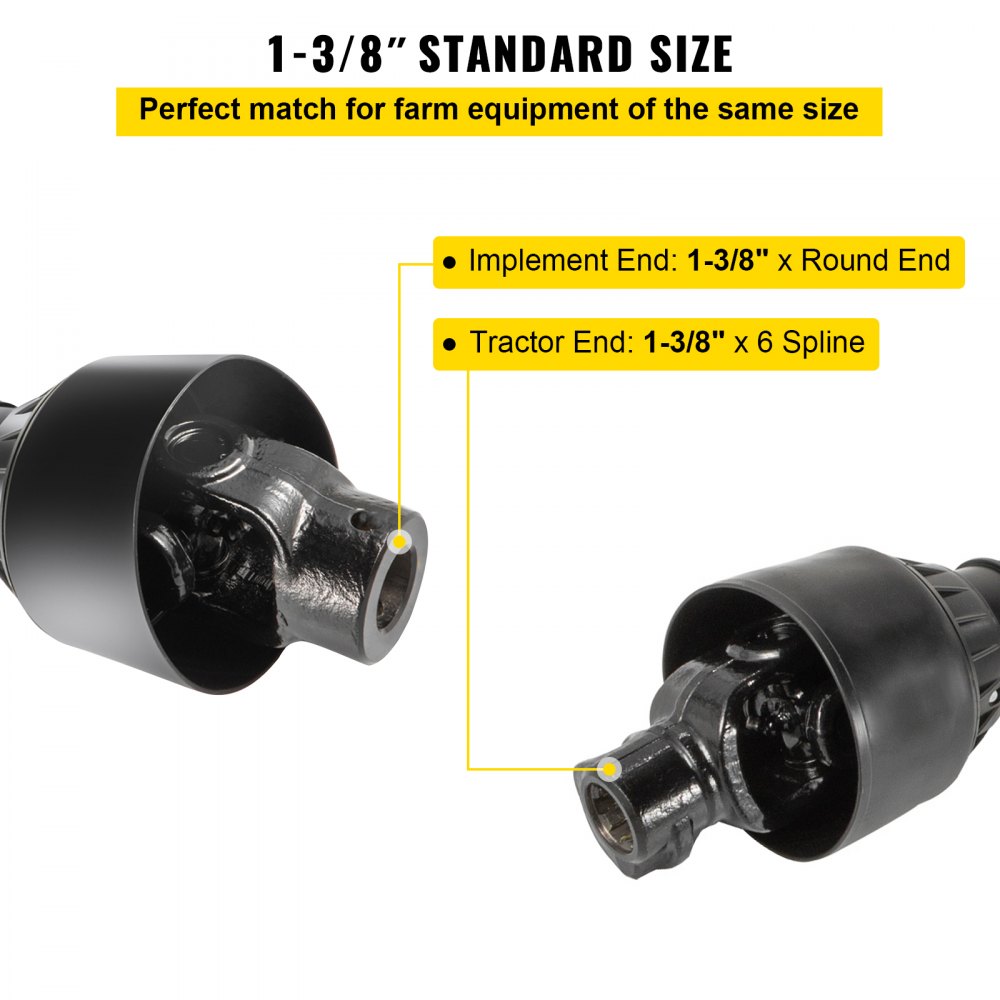

 Tractor End 1-3/8" x 6 Spline
 Implement End 1-3/8" x Round End

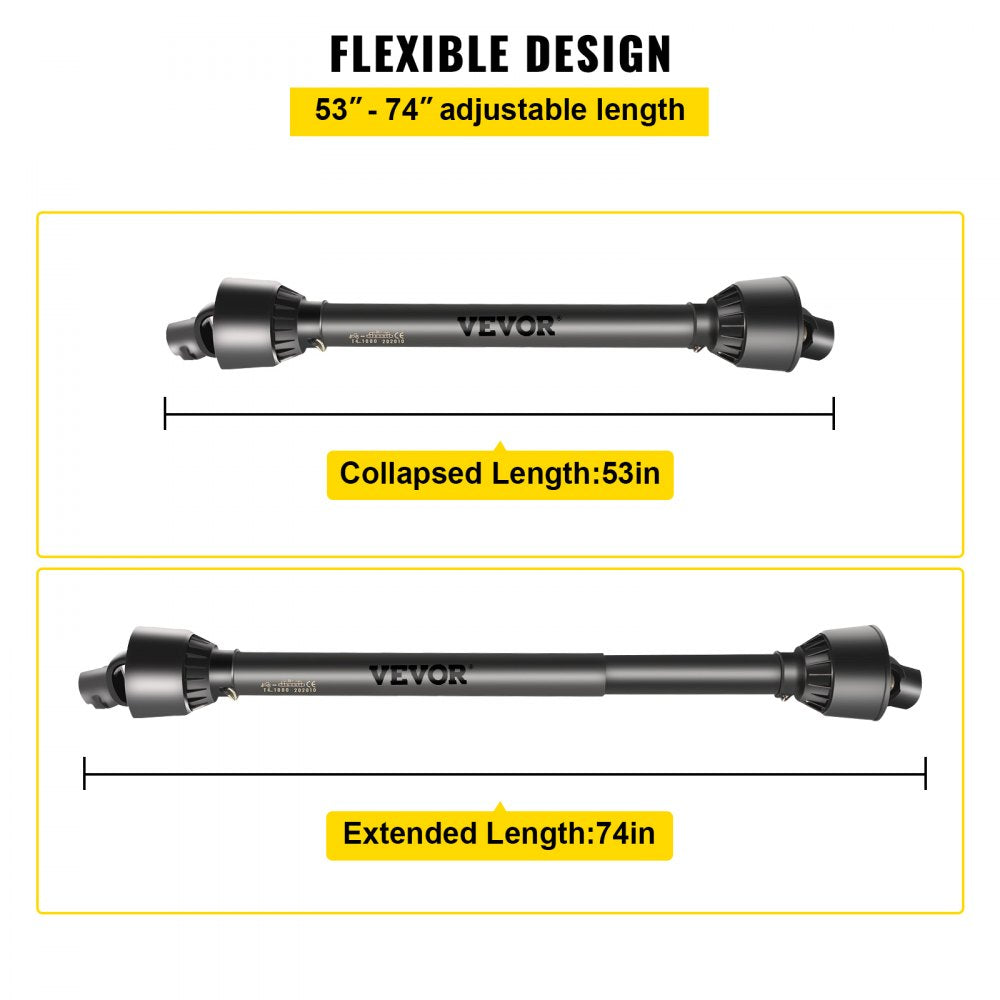

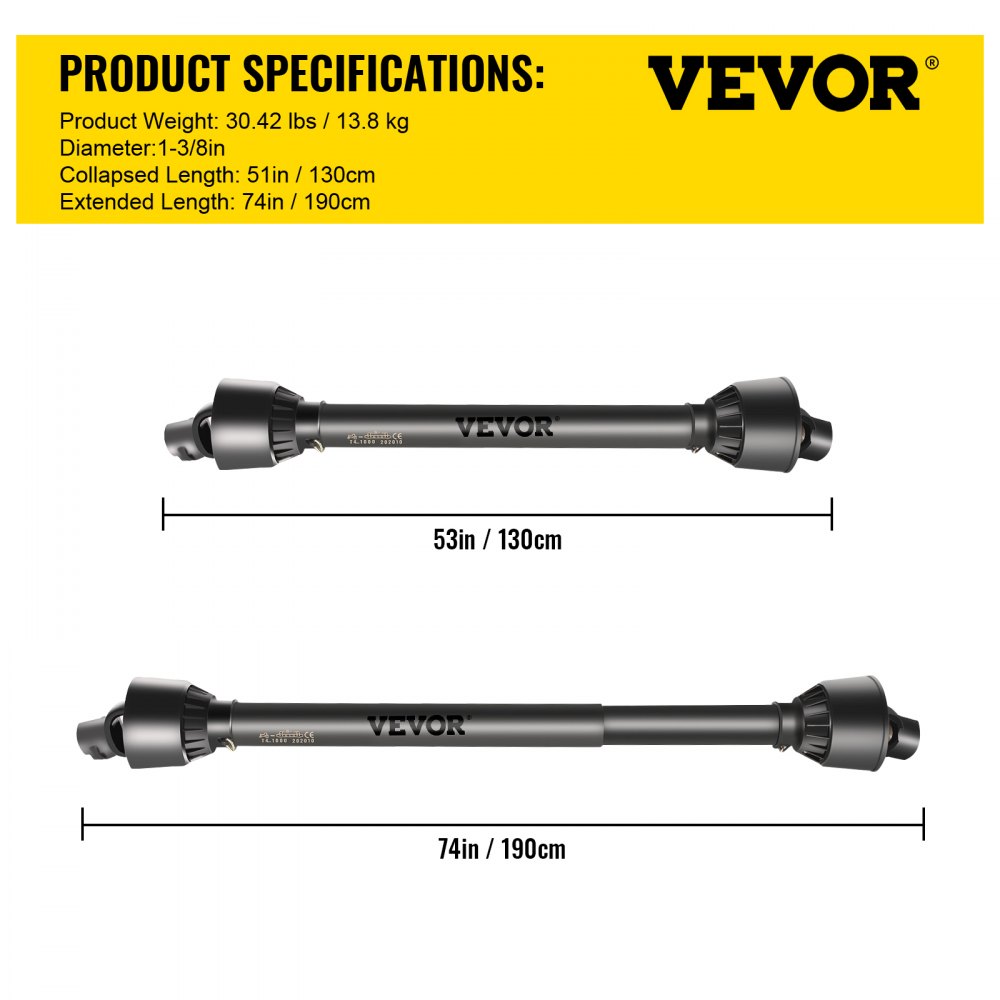

 Compressed Length 51" / 1300 mm
 Extended Overall Length 74" / 1900 mm

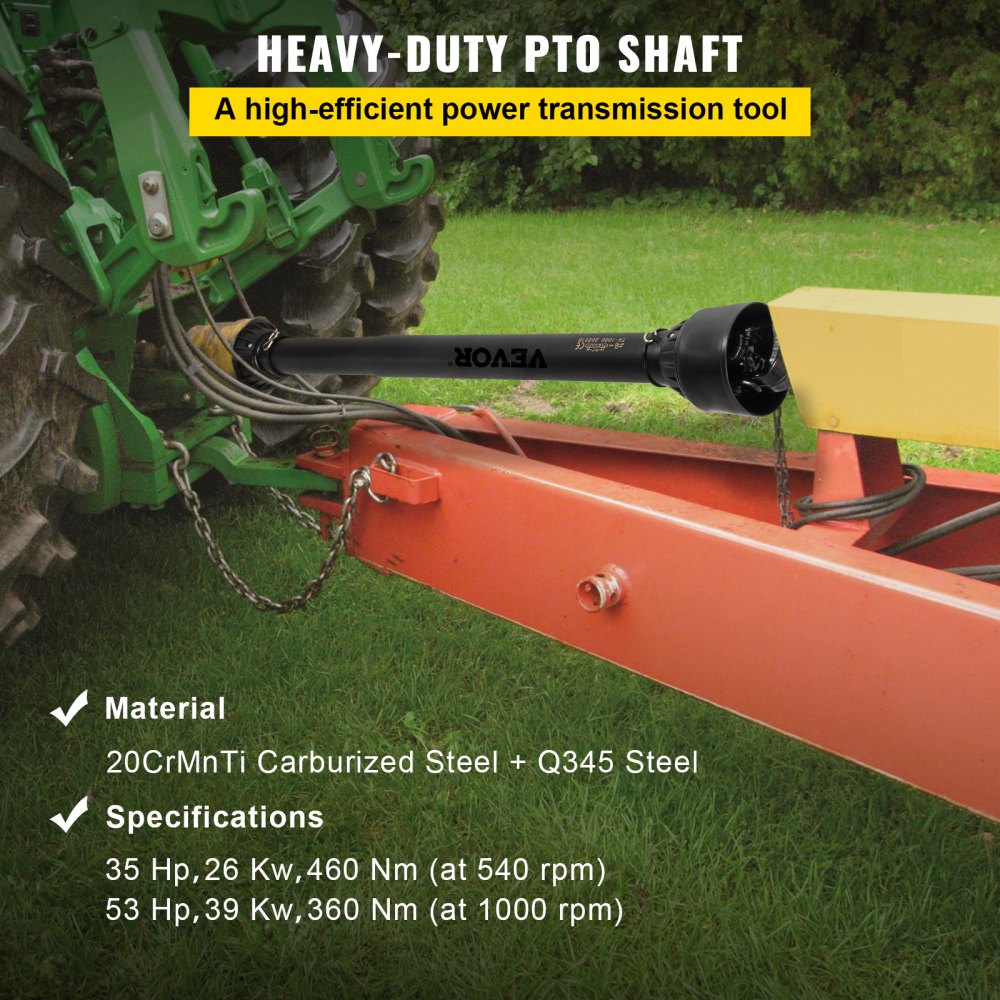

 At 540RPM 35hp, 26Kw, 460Nm
 At 1000RPM 53hp, 39Kw, 360Nm
 Color Black
