Home / AAAC – All Aluminum Alloy 6201 Conductor Utility Wire / Greeley 927.2 AAAC All Aluminum Alloy 6201 Conductor
  • Greeley 927.2 AAAC
1 1

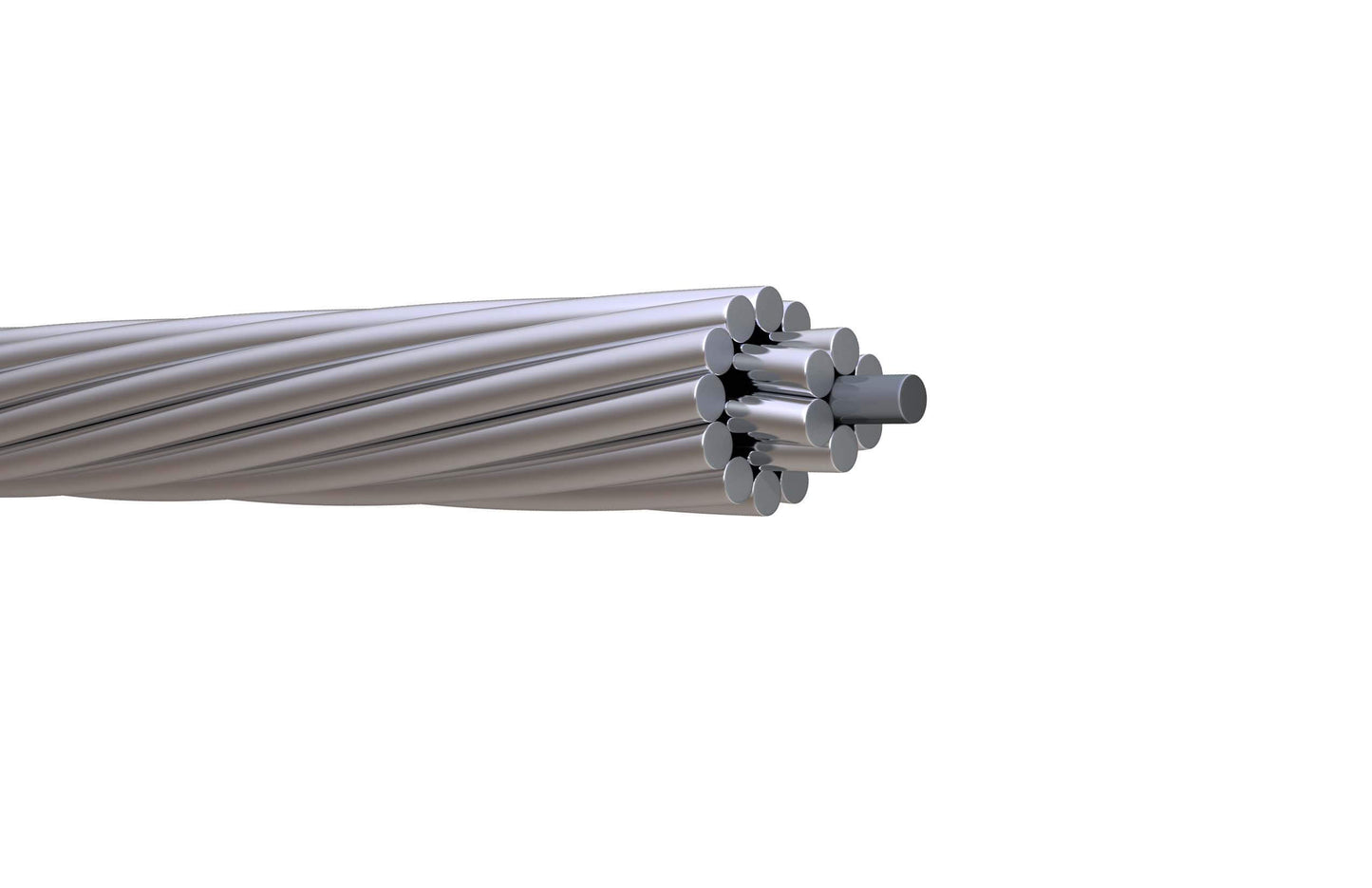

Greeley 927.2 AAAC All Aluminum Alloy 6201 Conductor

Greeley 927.2 AAAC All Aluminum Alloy 6201 Conductor

SKU: Download PDF

gauge:
  • Greeley 927.2 AAAC All Aluminum Alloy 6201 Conductor
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $5.38 /FT
BEFORE   Now $5.38 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Also Known As:

927.2 greely all aluminum alloy conductor, 927.2 greely cable aaac, 927.2 greely aluminum alloy cable, 927.2 greely abrasive resistant cable, 927.2 greely electric meter wiring, 927.2 greely transmission overhead, 927.2 greely burying electric cable, 927.2 greely utility pole ground wire, 927.2 greely overhead power line components.

Conductors:

Stranded 6201-T81 high strength aluminum conductors, conforming to ASTM specifications B399 are concentric-lay-stranded, similar in construction and appearance to 1350 aluminum alloy grade aluminum conductors, and has a greater resistance to abrasion than conductors of 1350 aluminum alloy

Resources
Applications
AAAC – All Aluminum Alloy Conductor is used for primary and secondary overhead transmission and distribution services. This has been designed utilizing a high-strength aluminum alloy to achieve a high strength-to weight ratio and better sag characteristic. The conductor has a higher resistance to corrosion than ACSR.
Features
Standards:

• ASTM B-398 Aluminum-Alloy 6201-T81 and 6201-T83 Wire
for Electrical Purposes

• ASTM B-399 Concentric-Lay-Stranded Aluminum Alloy 6201-T81 Conductors

• Requirements of the

• National Electrical
Code

• RUS accepted

Allowable Ampacity for 927.2 Greely AAAC: 908 Amps
Specifications
• Size KCM: 927.2

• Stranding: 37

• Approx. EC Cond. with Equivalent Resistance: 795.0

• Diameter Inches: Indiv. Wire O.D: 0.1583

• Diameter Inches: Comp. Cable: 1.1080

• Cross Sectional Area (sq. inches): 0.7282

• New Weight lb/1000FT: 870.4

• Rated Strength (lbs.): 30,500

• Ampacity: 908 Amps
