Home / AAAC – All Aluminum Alloy 6201 Conductor Utility Wire / Akron 30.58 AAAC All Aluminum Alloy 6201 Conductor
  • Akron 30.58 AAAC All Aluminum Alloy Conductor 6201
1 1

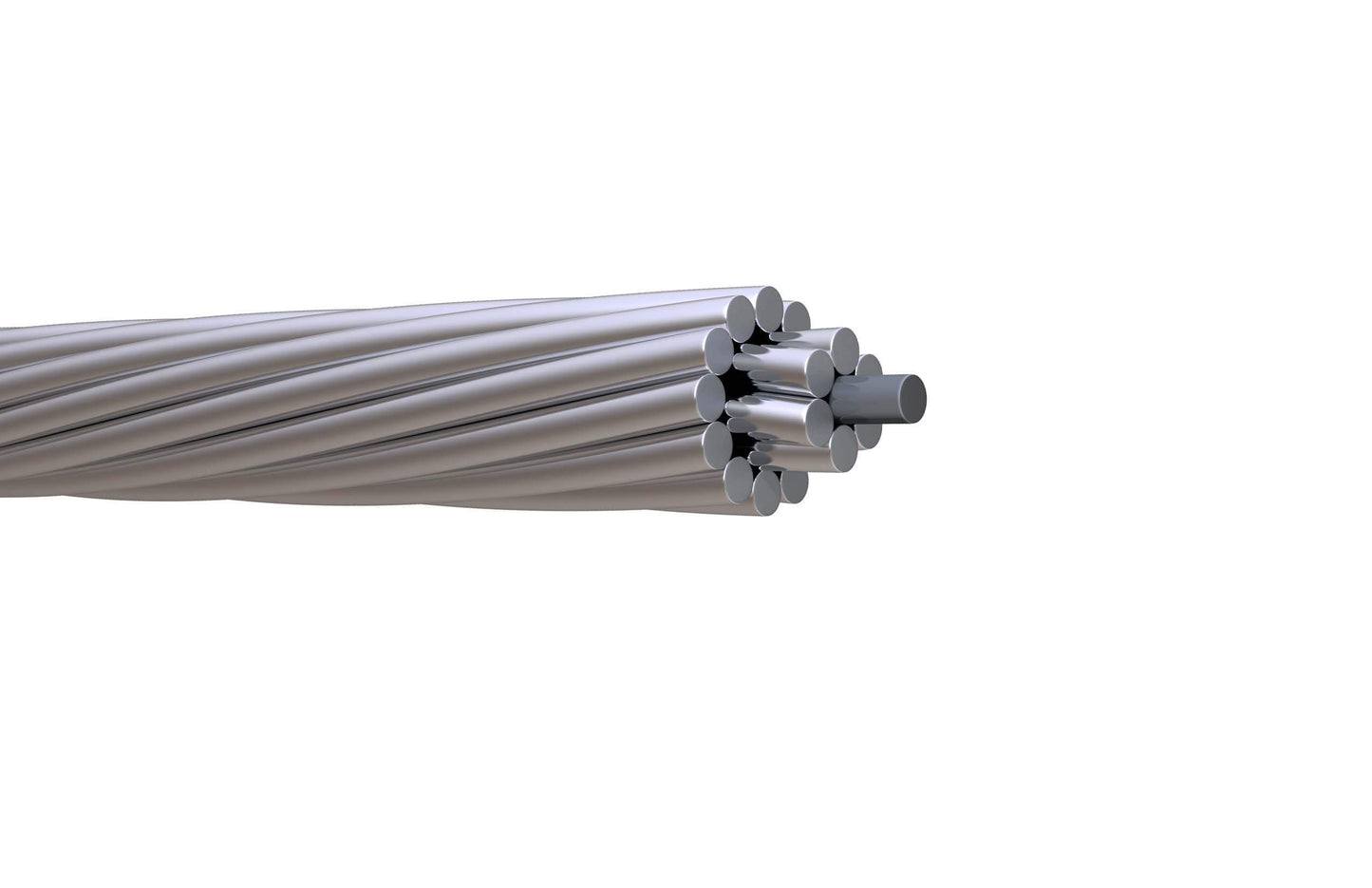

Akron 30.58 AAAC All Aluminum Alloy 6201 Conductor

Akron 30.58 AAAC All Aluminum Alloy 6201 Conductor

SKU: NNC1234-1   Download PDF

Select a gauge:
  • Akron 30.58 AAAC All Aluminum Alloy 6201 Conductor
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.44 /FT   Web pricing policy
BEFORE   Now $0.44 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

30.58 akron all aluminum alloy conductor, 30.58 akron cable aaac, 30.58 akron aluminum alloy cable, 30.58 akron abrasive resistant cable, 30.58 akron electric meter wiring, 30.58 akron transmission overhead, 30.58 akron burying electric cable, 30.58 akron utility pole ground wire, 30.58 akron overhead power line components.

Conductors:

Stranded 6201-T81 high strength aluminum conductors, conforming to ASTM specifications B399 are concentric-lay-stranded, similar in construction and appearance to 1350 aluminum alloy grade aluminum conductors, and has a greater resistance to abrasion than conductors of 1350 aluminum alloy

Resources
Applications
AAAC – All Aluminum Alloy Conductor is used for primary and secondary overhead transmission and distribution services. This has been designed utilizing a high-strength aluminum alloy to achieve a high strength-to weight ratio and better sag characteristic. The conductor has a higher resistance to corrosion than ACSR.
Features
Standards:

• ASTM B-398 Aluminum-Alloy 6201-T81 and 6201-T83 Wire
for Electrical Purposes

• ASTM B-399 Concentric-Lay-Stranded Aluminum Alloy 6201-T81 Conductors

• Requirements of the

• National Electrical Code

• RUS accepted

Allowable Ampacity for 30.58 Akron AAAC: 107 Amps
Specifications
• Size KCM: 30.58

• Stranding: 7

• Approx. EC Cond. with Equivalent Resistance: 6

• Diameter Inches: Indiv. Wire O.D: 0.0661

• Diameter Inches: Comp. Cable: 0.1980

• Cross Sectional Area (sq. inches): 0.0240

• New Weight lb/1000FT: 28.7

• Rated Strength (lbs.): 1,110

• Ampacity: 107 Amps
