Home / AAAC – All Aluminum Alloy 6201 Conductor Utility Wire / Alliance 246.9 AAAC All Aluminum Alloy 6201 Conductor
  • Alliance 246.9 AAAC
1 1

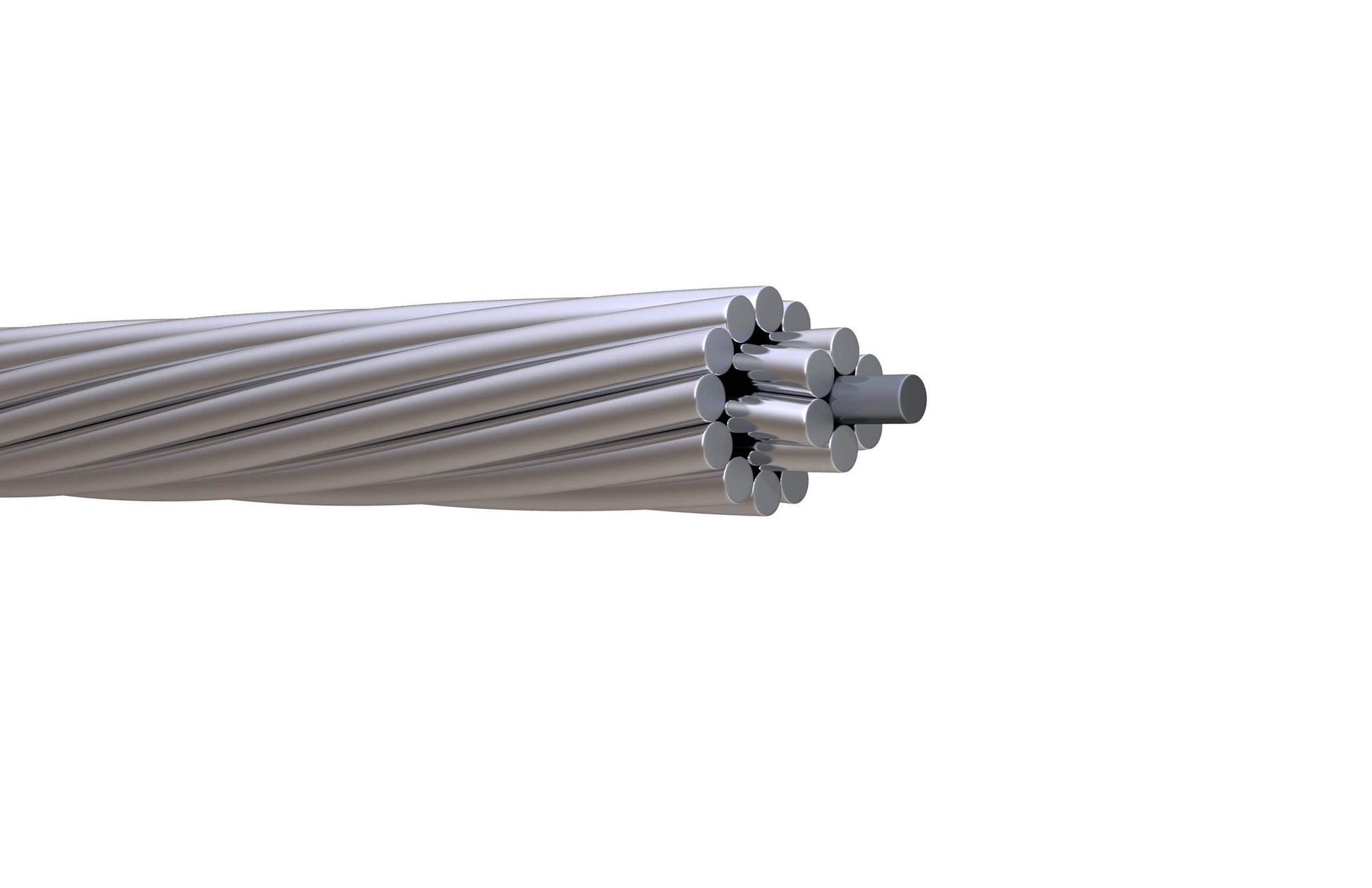

Alliance 246.9 AAAC All Aluminum Alloy 6201 Conductor

Alliance 246.9 AAAC All Aluminum Alloy 6201 Conductor

SKU: NNC1234-2   Download PDF

Select a gauge:
  • Alliance 246.9 AAAC All Aluminum Alloy 6201 Conductor
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $2.93 /FT   Web pricing policy
BEFORE   Now $2.93 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

246.9 alliance all aluminum alloy conductor, 246.9 alliance cable aaac, 246.9 alliance aluminum alloy cable, 246.9 alliance abrasive resistant cable, 246.9 alliance electric meter wiring, 246.9 alliance transmission overhead, 246.9 alliance burying electric cable, 246.9 alliance utility pole ground wire, 246.9 alliance overhead power line components.

Conductors:

Stranded 6201-T81 high strength aluminum conductors, conforming to ASTM specifications B399 are concentric-lay-stranded, similar in construction and appearance to 1350 aluminum alloy grade aluminum conductors, and has a greater resistance to abrasion than conductors of 1350 aluminum alloy

Resources
Applications
AAAC – All Aluminum Alloy Conductor is used for primary and secondary overhead transmission and distribution services. This has been designed utilizing a high-strength aluminum alloy to achieve a high strength-to weight ratio and better sag characteristic. The conductor has a higher resistance to corrosion than ACSR.
Features
Standards:

• ASTM B-398 Aluminum-Alloy 6201-T81 and 6201-T83 Wire
for Electrical Purposes

• ASTM B-399 Concentric-Lay-Stranded Aluminum Alloy 6201-T81 Conductors

• Requirements of the

• National Electrical Code

• RUS accepted

Allowable Ampacity for 246.9 Alliance AAAC: 395 Amps
Specifications
• Size KCM: 246.9

• Stranding: 7

• Approx. EC Cond. with Equivalent Resistance: 4/0

• Diameter Inches: Indiv. Wire O.D: 0.1878

• Diameter Inches: Comp. Cable: 0.5630

• Cross Sectional Area (sq. inches): 0.1939

• New Weight lb/1000FT: 231.8

• Rated Strength (lbs.): 8,560

• Ampacity: 395 Amps
