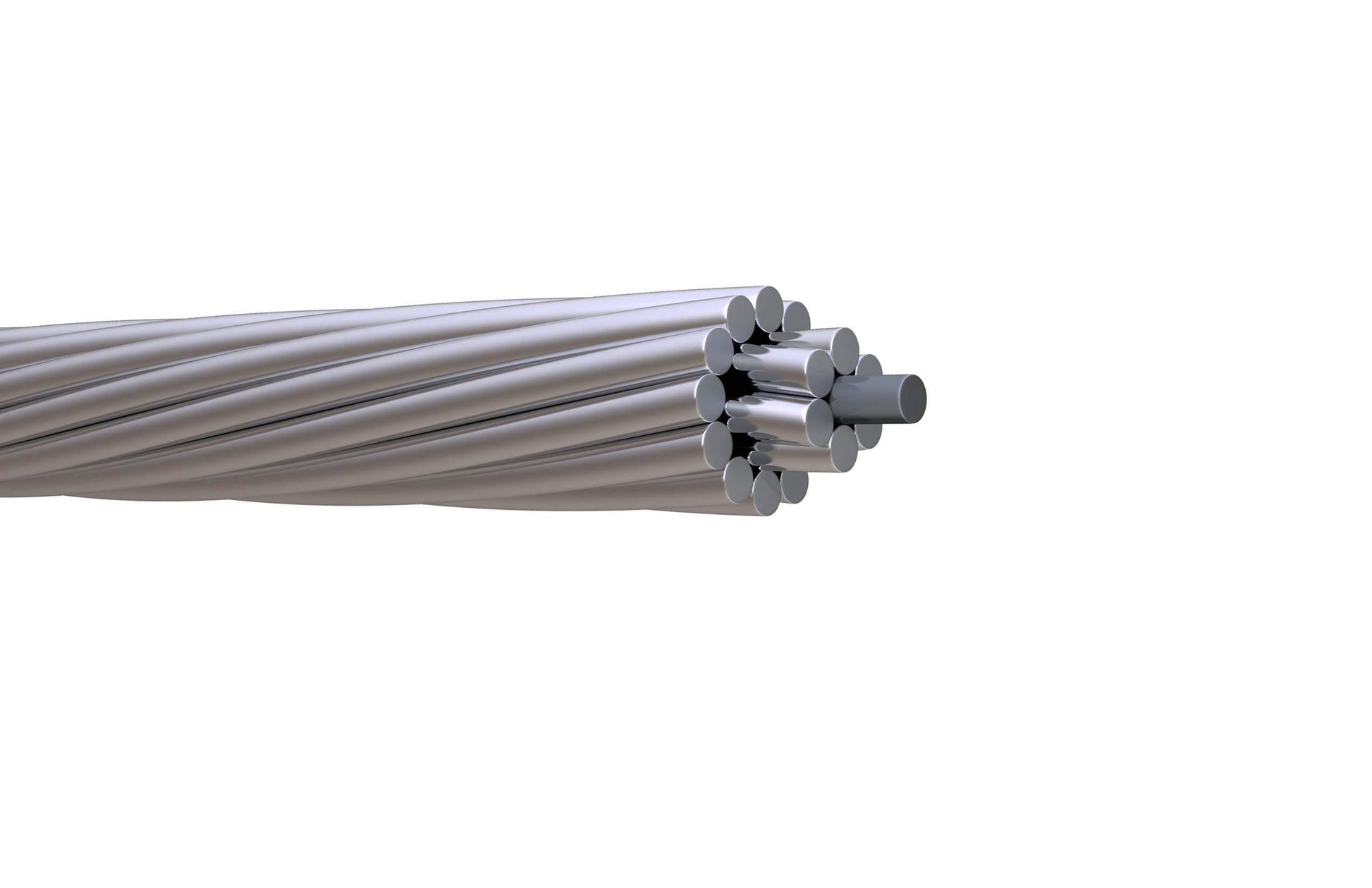

Elgin 652.4 AAAC All Aluminum Alloy 6201 Conductor

SKU: SKU: NNC1234-12 Download PDF

Select a gauge:

Elgin 652.4 AAAC All Aluminum Alloy 6201 Conductor

Set the Length:

Length:

Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.

Sold out

Shipping calculated at checkout.

Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Applications Features Specifications Reviews

Product Information

Also Known As:

652.4 elgin all aluminum alloy conductor, 652.4 elgin cable aaac, 652.4 elgin aluminum alloy cable, 652.4 elgin abrasive resistant cable, 652.4 elgin electric meter wiring, 652.4 elgin transmission overhead, 652.4 elgin burying electric cable, 652.4 elgin utility pole ground wire, 652.4 elgin overhead power line components.

Conductors:

Stranded 6201-T81 high strength aluminum conductors, conforming to ASTM specifications B399 are concentric-lay-stranded, similar in construction and appearance to 1350 aluminum alloy grade aluminum conductors, and has a greater resistance to abrasion than conductors of 1350 aluminum alloy

Resources

Applications

AAAC – All Aluminum Alloy Conductor is used for primary and secondary overhead transmission and distribution services. This has been designed utilizing a high-strength aluminum alloy to achieve a high strength-to weight ratio and better sag characteristic. The conductor has a higher resistance to corrosion than ACSR.

Features

Standards:

• ASTM B-398 Aluminum-Alloy 6201-T81 and 6201-T83 Wire
for Electrical Purposes

• ASTM B-399 Concentric-Lay-Stranded Aluminum Alloy 6201-T81 Conductors

• Requirements of the

• National Electrical Code

• RUS accepted

Allowable Ampacity for 652.4 Elgin AAAC: 729 Amps

Specifications

• Size KCM: 652.4

• Stranding: 19

• Approx. EC Cond. with Equivalent Resistance: 556.5

• Diameter Inches: Indiv. Wire O.D: 0.1853

• Diameter Inches: Comp. Cable: 0.9270

• Cross Sectional Area (sq. inches): 0.5124

• New Weight lb/1000FT: 612.4

• Rated Strength (lbs.): 21,900

• Ampacity: 729 Amps
