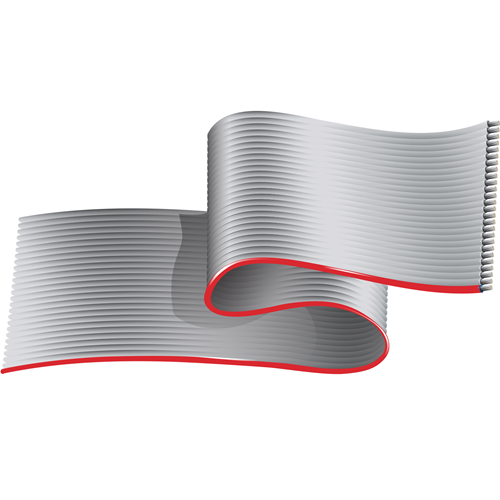

Belden 9L28026 28 AWG 26 Conductor 7x36 Stranding 0.050 in Pitch 300V Flat Gray Ribbon Cable

Description:

Flat Gray Ribbon Cable 0.050" Pitch, 9L280XX Series, 26 Conductor, 28 AWG (7x36) Tinned Copper, PVC Insulation.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.010 in

Color Chart:

• Color: Gray
• Color Chart 1 Table Notes: First Conductor has Red Stripe

Construction and Dimensions:

• Conductor Spacing: 0.050 +/- 0.002 in
• Conductor Spacing Center-Center Outside: 1.250 +/- .008 in
• OuterJacket1, Nominal Width: 1.300 +/- .008 in
• OuterJacket1, Nom Thick Flat Section: 0.035 in

Conductor DCR:

• Nominal Conductor DCR: 68.2 Ohm/1000ft

Standards:

• Voltage Rating: 300 V
• Dielectric Withstand Voltage: 2000 V
• Operating Temperature: -40°C to +105°C

Applications:

• Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors

Specifications:

• Size (AWG): 28
• No. of Conductor: 26
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 9L28026
