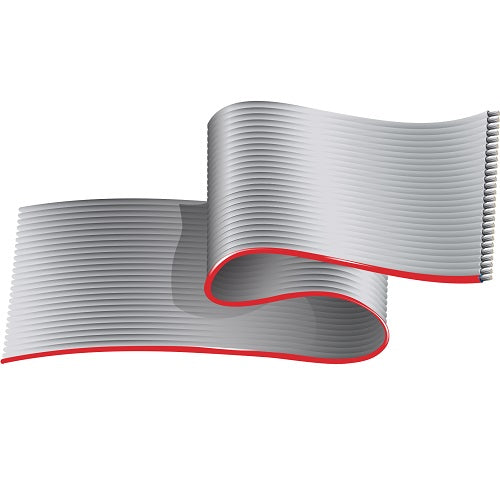

Belden 9L28015 28 AWG 15 Conductor 7x36 Stranding 0.050" Pitch Tinned Copper 300V Flat Gray Ribbon Cable

Description:-

Flat Gray Ribbon Cable 0.050" Pitch, 9L280XX Series, 15 Conductor, 28 AWG (7x36) Tinned Copper, PVC Insulation.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.035 in (0.89 mm)
• Conductor Spacing Center-Center: 0.050 +/- 0.002 in
• Conductor Spacing Center-Center Outside: 0.700 +/- 0.008 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -40°C to +105°C

Applications:-

• Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors

Specifications:-

• Size (AWG): 28
• No. of Conductors: 15
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 9L28015
