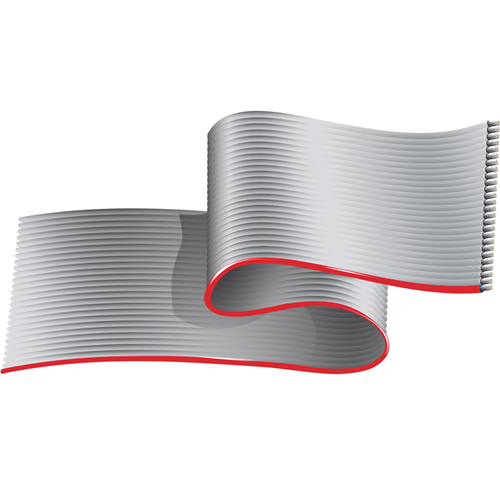

Belden 9L28050 28 AWG 50 Conductor 7x36 Stranding 0.050 in Pitch 300V Flat Gray Ribbon Cable

Description:

Flat Gray Ribbon Cable 0.050" Pitch, 9L280XX Series, 50 Conductor, 28 AWG (7x36) Tinned Copper, PVC Insulation.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.035 in (0.89 mm)
• Conductor Spacing Center-Center: 0.050 +/- .002 in
• Conductor Spacing Center-Center Outside: 2.450 +/- .011 in

Color Chart:

• Color: Gray
• Color Chart 1 Table Notes: First Conductor has Red Stripe

Conductor DCR:

• Nominal Conductor DCR: 68.2 Ohm/1000ft

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -40°C to +105°C

Applications:

• Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors

Specifications:

• Size (AWG): 28
• No. of Conductor: 50
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 9L28050
