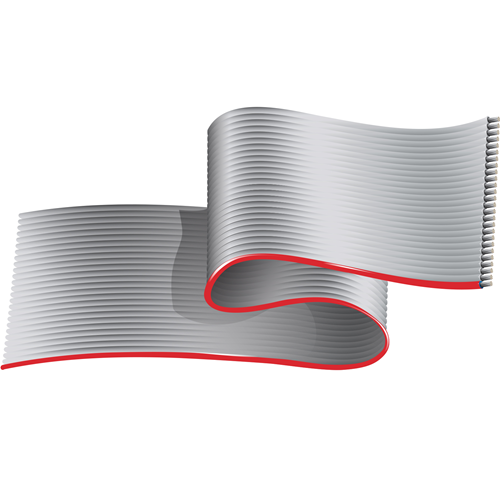

Belden 9L28025 28 AWG 25 Conductor 7x36 Stranding Tinned Copper 300V Flat Gray Ribbon Cable

Belden 9L28025 28 AWG 25 Conductor 7x36 Stranding Tinned Copper 300V Flat Gray Ribbon Cable

SKU: NES9L28025   Download PDF

Select a gauge:
  • Belden 9L28025 28 AWG 25 Conductor 7x36 Stranding Tinned Copper 300V Flat Gray Ribbon Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $3.95 /FT   Web pricing policy
BEFORE   $0.00 Now $3.95 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9L28025 28 AWG 25 Conductor 7x36 Stranding Tinned Copper 300V Flat Gray Ribbon Cable

Description:

Flat Gray Ribbon Cable 0.050" Pitch, 9L280XX Series, 25 Conductor, 28 AWG (7x36) Tinned Copper, PVC Insulation.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.010 in

Conductor DCR:

• Nominal Conductor DCR: 68.2 Ohm/1000ft

Impedance:

• Nominal Characteristic Impedance: 150 Ohm

Applications:

• Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors

Specifications:

• Size (AWG): 28
• No. of Conductor: 25
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 9L28025
