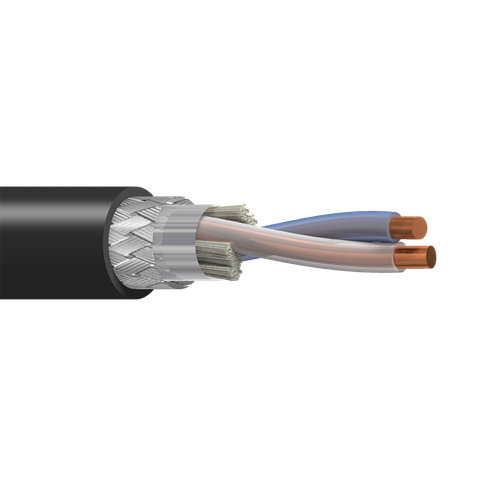

Belden 9860 16 AWG 1 Pair Solid Bare Copper 124 Ohm Twinax Cable

Description:

Twinax 124Ω, 1 Pair 16AWG (Solid) Bare Copper, PO Insulation, Overall Duofoil+Tinned Copper Braid(90%) Shield, PVC Outer Jacket, CMX.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.161 in

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage [%] 100%

• Layer 2: Outer Shield Type Braid, Tinned Copper (TC) Material, Coverage [%] 90%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.44 in
• Nominal Wall Thickness: 0.045 in

Applications:

• harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
