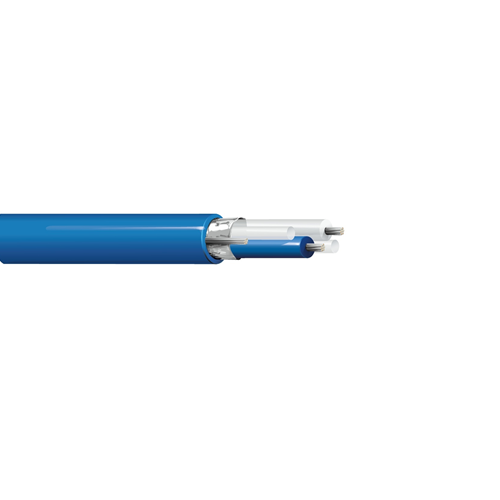

Belden 9271 25 AWG 2 Conductor 7x33 Stranding 124 Ohm Twinax Cable

Belden 9271 25 AWG 2 Conductor 7x33 Stranding 124 Ohm Twinax Cable

SKU: NES9271   Download PDF

Select a gauge:
  • Belden 9271 25 AWG 2 Conductor 7x33 Stranding 124 Ohm Twinax Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.62 /FT   Web pricing policy
BEFORE   Now $1.62 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9271 25 AWG 2 Conductor 7x33 Stranding 124 Ohm Twinax Cable

Description:

124 Ohm Twinax, 25 AWG stranded (7x33) tinned copper conductors, polyethylene insulation, Beldfoil shield (100% coverage), stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene
• Nominal Wall Thickness: 0.031 in

Outer Shield:

• Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage [%]: 100%
• Drainwire Material: TC - Tinned Copper
• Drainwire AWG: 22
• Drainwire Construction n x D: 7x30

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.24 in
• Nominal Wall Thickness: 0.035 in

Specifications:

• Size (AWG): 25
• No. of Conductor: 2
• Stranding: 7x33
• Nom. Diameter: 0.021 in
• Impedance: 124 Ohm
• Conductor Material: TC - Tinned Copper
• Part Number: 9271
