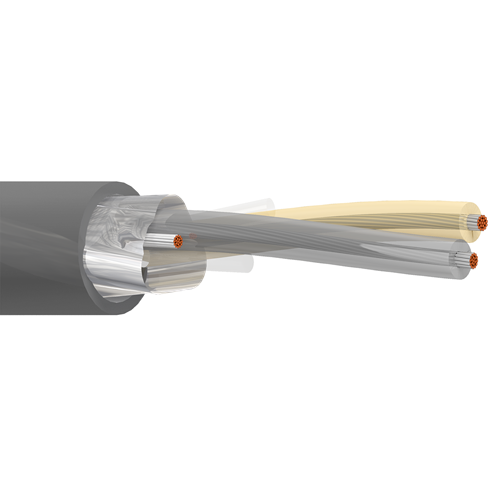

Belden 89182 22 AWG 1 Pair 19x34 Stranding Tinned Copper 300V Twinax Cable

Description:

Twinax 150Ω, 1 Pair 22 AWG (19x34) Tinned Copper, Foam FEP Insulation, Overall Duofoil Shield, FEP Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.130 in (3.30 mm)

Outer Shield:

• Layer: 1
• Outer Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.307 in (7.80 mm)
• Overall Cable Diameter (Nominal): 0.307 in (7.80 mm)

Standards:

• Voltage Rating: 300 V RMS (CL2P, CMP)
• Operating Temperature: -70°C to +200°C

Applications:

• Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Specifications:

• Size (AWG): 22
• No. of Pair: 1
• Stranding: 19x34
• Nom. Diameter: 0.030 in
• Impedance: 150 Ohm
• Conductor Material: TC - Tinned Copper
• Part Number: 89182
