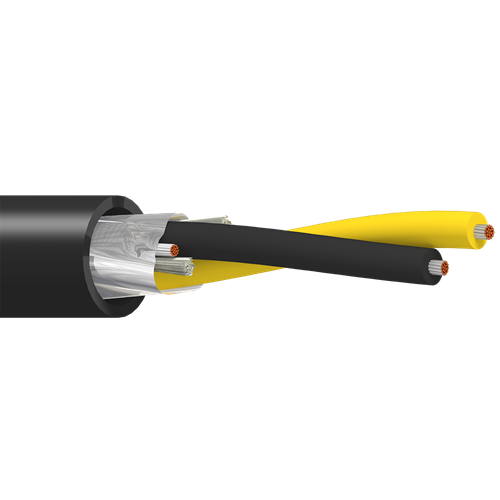

Belden 9182 22 AWG 1 Pair 19x34 Stranding Tinned Copper 300V Twinax Cable

Description:

Twinax 150Ω, 1 Pair 22 AWG (19x34) Tinned Copper, Foam PE Insulation, Overall Duofoil Shield, PVC Outer Jacket, CMX.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.134 in (3.40 mm)

Outer Shield:

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.345 in (8.76 mm)
• Overall Cable Diameter (Nominal): 0.345 in (8.76 mm)

Standards:

• Voltage Rating: 300 V (CMX)
• Operating Temperature: -20°C to +60°C
• Nom. Characteristic Impedance: 150 Ohm

Applications:

• Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Specifications:

• Size (AWG): 22
• No. of Pair: 1
• Stranding: 19x34
• Nom. Diameter: 0.030 in
• Conductor Material: TC - Tinned Copper
• Part Number: 9182
