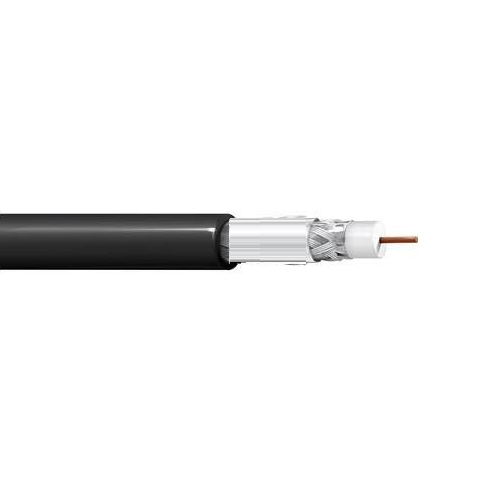

Belden 9764 14 AWG 1 Conductor Solid Bare Copper Covered Steel 300V CATV Video Coax Cable

Description:-

CATV, Series 11, 14 AWG solid 0.064" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond Plus; aluminum braid shield (75% coverage), polyethylene jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.28 in
• Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duobond II

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 75%

• Layer: 3
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:-

• Material: PE - Polyethylene
• Nom. Diameter: 0.4 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -55°C To +80°C

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 11
• Nominal Diameter: 0.064 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 9764
