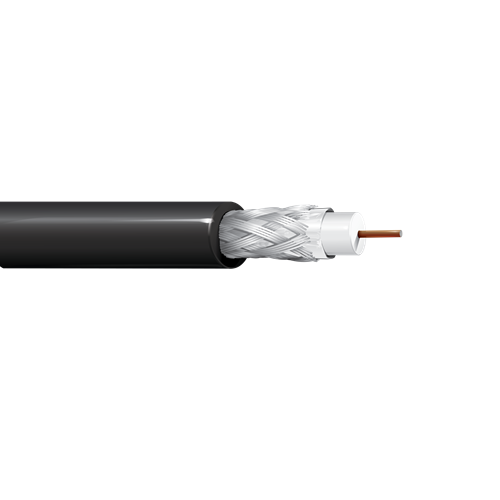

Belden 9116R 18 AWG 1 Conductor Solid Series 6 Broadband 75 Ohm Coax Cable

Description:

Broadband Coax, Series 6, 18 AWG Solid Bare Copper Covered Steel Conductor, PE Insulation, Foil + 60% Aluminum Braid Shield, PVC Jacket, CMR.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.180 in (4.57 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duobond II, Coverage 100%

• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 60%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.275 in (6.99 mm)
• Overall Cable Diameter (Nominal): 0.275 in (6.99 mm)
