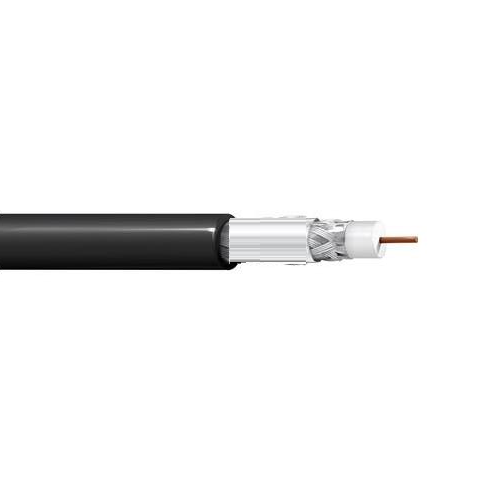

Belden 1614B 18 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Coax Cable

Description:-

Series 6, 18 AWG solid 0.040" bare copper-covered steel conductor(s), gas-injected foam polyethylene insulation, Duobond III (Outer tape bonded to jacket) + aluminum braid shield (77% coverage), polyethylene jacket.

Insulation:-

• Material: Gas-injected FPE - Foam Polyethylene
• Dia. (mm): 4.572

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bonded Aluminum Foil-Polyester Tape-Aluminum Foil
• Coverage: 100%
• Outer Shield Trade Name: Bonded Duofoil

• Layer: 2
• Shield Type: Braid
• Material: AL - Aluminum
• Coverage: 77%

• Layer: 3
• Shield Type: Tape
• Material: Aluminum Foil-Polyester Tape-Aluminum Foil
• Coverage: 100%
• Outer Shield Trade Name: Duofoil

• Coreguard

Outer Jacket:-

• Material: PE - Polyethylene

Overall Cable:-

• Overall Nominal Diameter: 6.985 mm

Standards:-

• Impedance (Ohm): 75
• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -55°C To +80°C

Applications:-

• CATV Cables

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• Dia. (mm): 1.016
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 1614B
