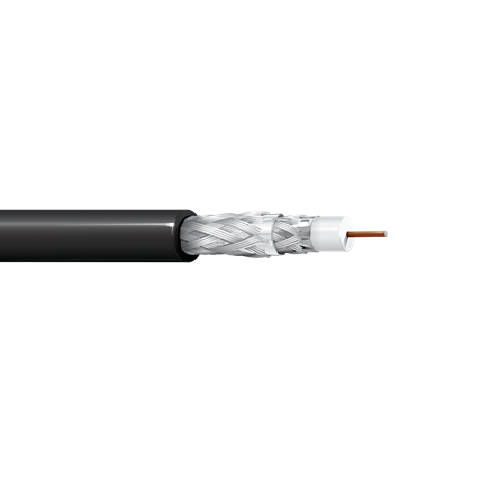

Belden 1186A 20 AWG 1 Conductor Solid RG-59 CATV Video 75 Ohm Coax Cable

Description:

Series 59, 20 AWG solid 0.032" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond + aluminum braid(s) shield (65% and 45% coverage), PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.144 in
• Gas Injected

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 65%

• Layer 3: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 4: Outer Shield Type Braid, Aluminum Material, Coverage 45%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.265 in

Applications:

• CATV, Broadband
