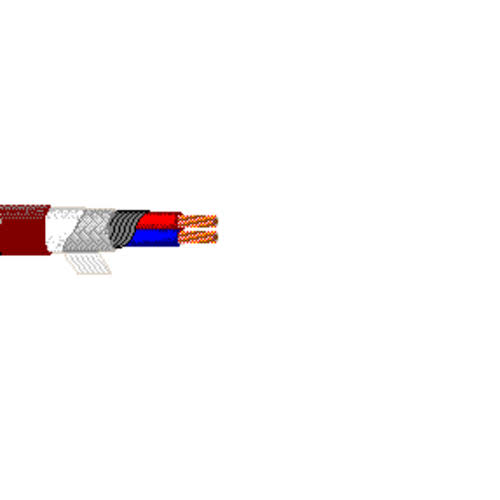

Belden 9399 24 AWG 2 Conductor 45x40 Stranding Bare Copper Alloy 300V Microphone Cable

Description:-

24 AWG stranded (45x40) BC alloy conductors, EPDM rubber insulation, conductive textile wrap (100% coverage), TC braid shield (65% coverage), cotton spiral, EPDM jacket.

Insulation:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nominal Diameter: 0.064 in
• Nominal Wall Thickness: 0.02 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Textile (Conductive)
• Coverage [%]: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 65%

• Layer: 3
• Shield Type: Spiral Serve / Screen
• Material: Cotton

Outer Jacket:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Diameter: 0.2 in
• Nominal Wall Thickness: 0.02 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 55 Ohm
• Operating Temperature Range: -40°C To +90°C

Applications:-

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Specifications:-

• Size (AWG): 24
• No. of Conductor: 2
• Stranding: 45x40
• Nominal Diameter: 0.024 in
• Conductor Material: BCA - Bare Copper Alloy
• Part Number: 9399
