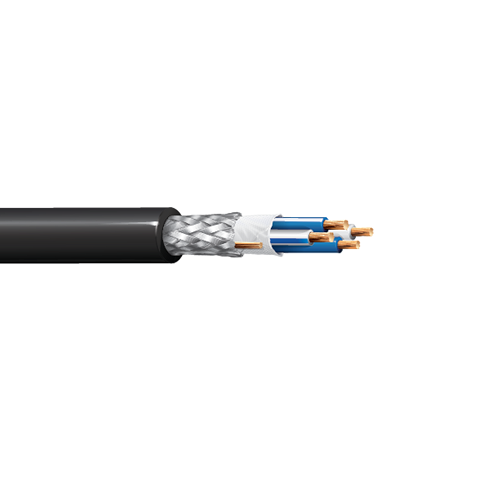

Belden 1804A 28 AWG 4 Conductor 19x40 Stranding Silvered Copper Alloy 100V Microphone Cable

Description:-

Microphone Cable, Star Quad, 4 Conductor 28 AWG (19 x 40) High Conductivity Silvered Copper Alloy, PP insulation, 80% Tinned Copper Braid Shield, PVC jacket.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.03 in (0.76 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 80%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Diameter: 0.115 in (2.92 mm)
• Overall Cable Diameter (Nominal): 0.115 in (2.92 mm)

Standards:-

• UL Voltage Rating: 100 V
• Nom. Characteristic Impedance: 40 Ohm
• Operating Temperature Range: -30°C to +60°C

Applications:-

• Microphone, low-noise for high-EMI environments; Line level balanced analog audio

Specifications:-

• Size (AWG): 28
• No. of Conductor: 4
• Stranding: 19x40
• Conductor Material: SCA - Silvered Copper Alloy (High Conductivity)
• Part Number: 1804A
