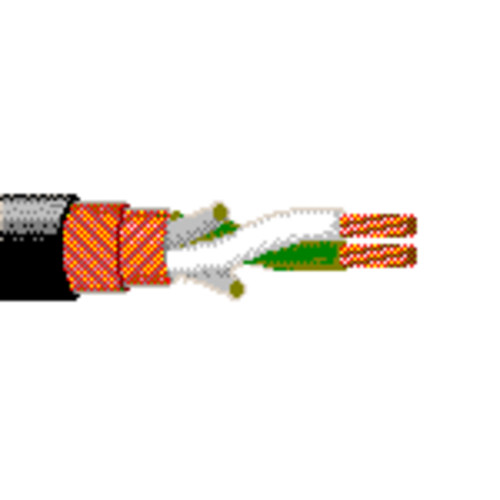

Belden 9397 24 AWG 2 Conductor 105x44 Stranding Bare Copper 300V Microphone Cable

Description:-

24 AWG stranded (105x44) high-conductivity bare copper conductors, PVC insulation, double bare copper spiral shield (95% coverage), PVC jacket.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.048 in
• Nominal Wall Thickness: 0.012 in

Outer Shield:-

• Shield Type: Spiral Serve / Screen
• Material: Bare Copper (BC)
• Coverage [%]: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.176 in
• Nominal Wall Thickness: 0.031 in

Standards:-

• Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 47 Ohm
• Operating Temperature Range: -20°C To +80°C

Applications:-

• Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Specifications:-

• Size (AWG): 24
• No. of Conductor: 2
• Stranding: 105x44
• Nominal Diameter: 0.024 in
• Conductor Material: BC - Bare Copper (High Conductivity)
• Part Number: 9397
