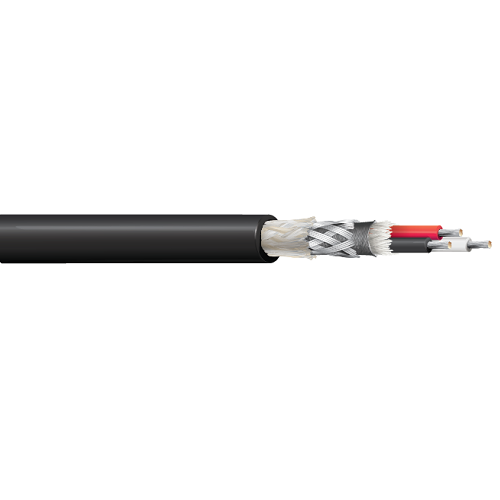

Belden 8406 24 AWG 3 Conductor 45x40 Stranding Tinned Copper Alloy 300V Microphone Cable

Description:-

24 AWG stranded (45x40) TC alloy conductors, EPDM rubber insulation, conductive textile wrap (100% coverage), TC braid shield (60% coverage), cotton serve, EPDM rubber jacket.

Insulation:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nominal Diameter: 0.065 in
• Nominal Wall Thickness: 0.016 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Textile (Conductive)
• Coverage [%]: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 60%

Outer Jacket:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nominal Diameter: 0.223 in
• Nominal Wall Thickness: 0.025 in
• Cotton Serve

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -40°C To +90°C

Applications:-

• Low-frequency microphone or musical instruments; Balanced analog audio

Specifications:-

• Size (AWG): 24
• No. of Conductor: 3
• Stranding: 45x40
• Nominal Diameter: 0.024 in
• Conductor Material: TCA - Tinned Copper Alloy
• Part Number: 8406
