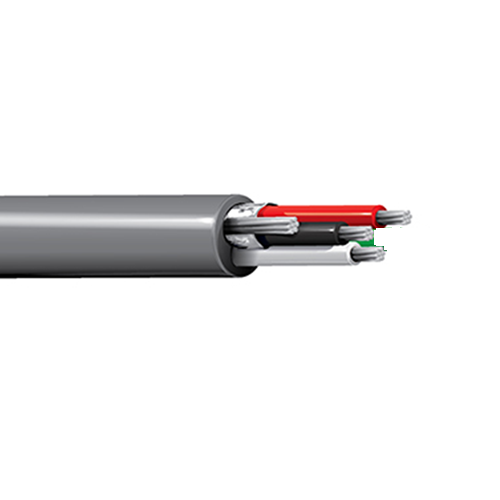

Belden 8763 20 AWG 1 Pair 1 Conductor Tinned Copper 350V Audio Control and Instrumentation Cable

Description:

1 Pair 20 AWG, 1 Conductor 20 AWG, stranded (7x28) TC, polyethylene insulation, conductors cabled, Beldfoil shield as noted (100% coverage), 20 AWG stranded TC drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0275 in (0.699 mm)
• Nom. Diameter: 0.21 in
• Overall Cable Diameter (Nominal): 0.21 in

Standards:

• Voltage Rating: 350 V
• Operating Temperature: -30°C To +90°C
• Nom. Characteristic Impedance: 62 Ohm

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 20
• No. of Pair: 1
• No. of Conductor: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 8763
