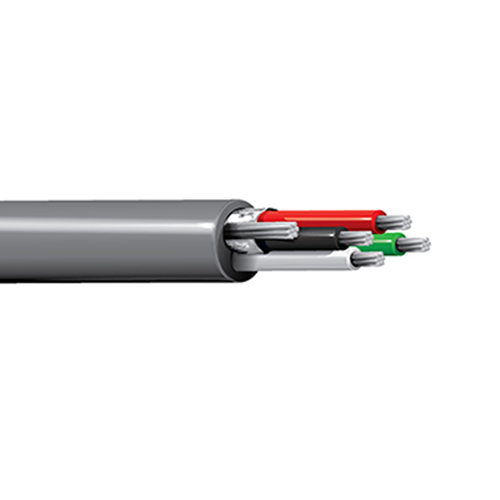

Belden 8730 22 AWG 4 Conductor 7x30 Stranding Tinned Copper 300V Audio Control and Instrumentation Cable

Description:

1 Pair+ 2 Conductors 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, one pair Beldfoil shielded (100% coverage), stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.0085 in (0.22 mm), 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Inner Shield:

Element: Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Element: Conductor(s)
• No Shield

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter: 0.205 in
• Overall Cable Diameter (Nominal): 0.205 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -30°C To +90°C

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 22
• No. of Pair:1
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8730
