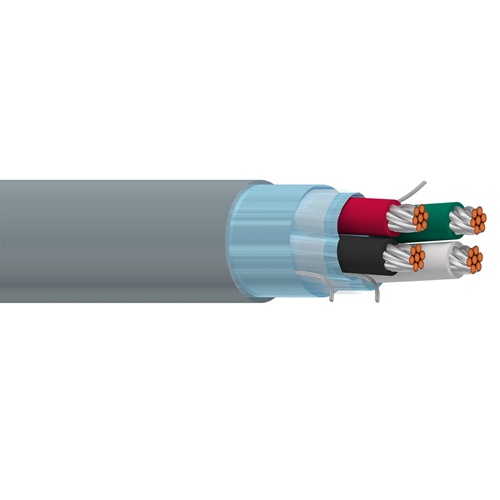

Belden 8728 22 AWG 4 Conductor 7x30 Stranding Tinned Copper 300V Special Audio Cable

Description:

Audio, 2 Pair 22 AWG stranded (7x30) TC conductors, polypropylene insulation, cabled in pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain wires, CM, PVC jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.05 in (1.3 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Tape
• Material: Polyester
• Coverage: 100%

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.028 in (0.71 mm)
• Nom. Diameter: 0.215 in

Standards:

• Operating Temperature: -20°C To +80°C
• Nom. Characteristic Impedance; 50 Ohm
• Voltage Rating: 300 V RMS (UL AWM Style 2717)

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 4
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8728
