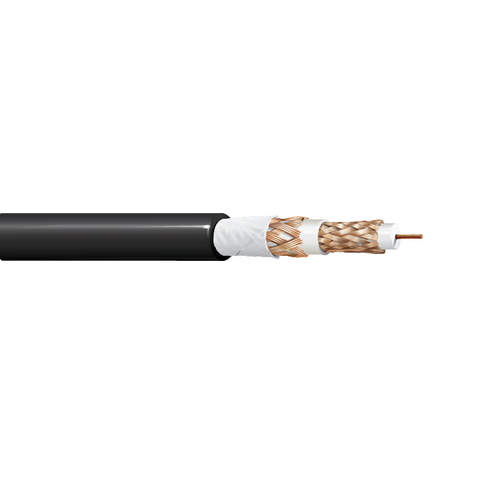

Belden 8233WB 14 AWG 1 Conductor Solid Bare Copper 300V Video Triax Cable

Description:-

14 AWG solid 0.064" bare copper conductor, gas-injected foam HDLPE insulation, bare copper braids (95% & 80% coverage), flooded, CPE jacket

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.285 in (7.24 mm)
• Gas Injected

Inner Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 80%
• CoreGuard

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.371 in (9.42 mm)

Outer Jacket:-

• Material: CPE - Chlorinated Polyethylene
• Nom. Diameter: 0.475 in (12.1 mm)
• Overall Cable Diameter (Nominal): 0.475 in (12.1 mm)

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Indoor/Outdoor, Aerial - when supported by messenger wire

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.064 in
• RG Type: 11
• Conductor Material: BC - Bare Copper
• Part Number: 8233WB
